Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Seal

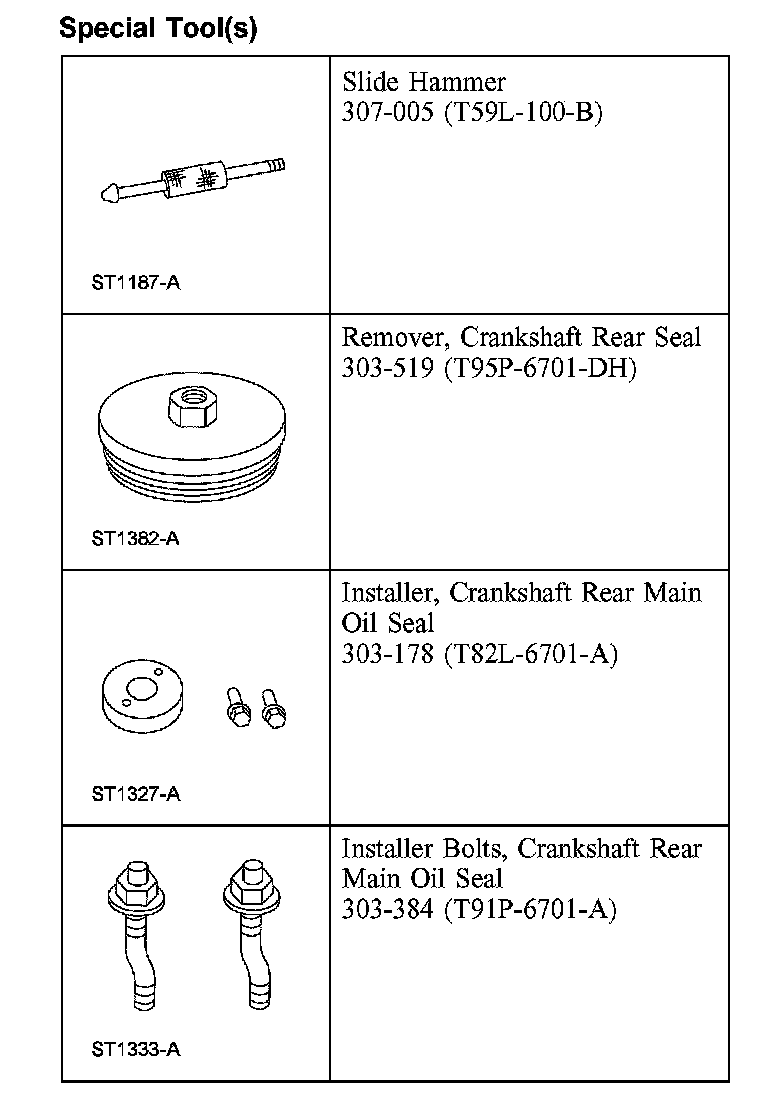

Special Tool(s):

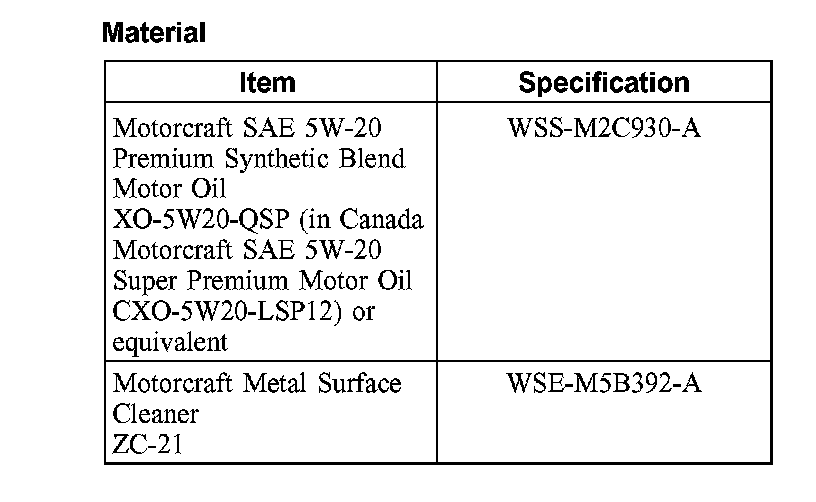

Material:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the flexplate.

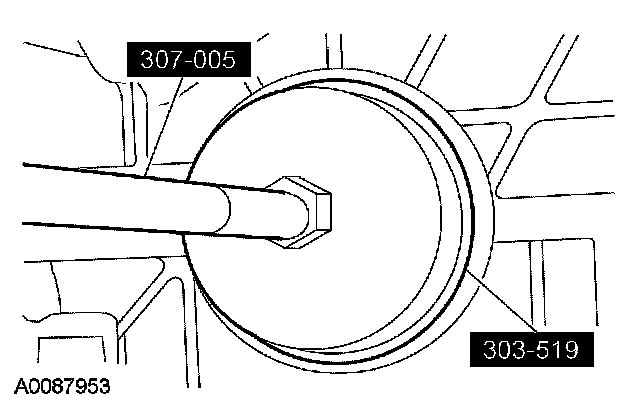

3. Using the special tools, remove the crankshaft rear oil seal and discard.

Installation





1. NOTE: Clean all sealing surfaces with metal surface cleaner.

NOTE: Apply clean engine oil to the seal lip and seal bore before installing the seal.

Using the special tools, install the crankshaft rear oil seal.
