Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Oil Level Indicator and Tube

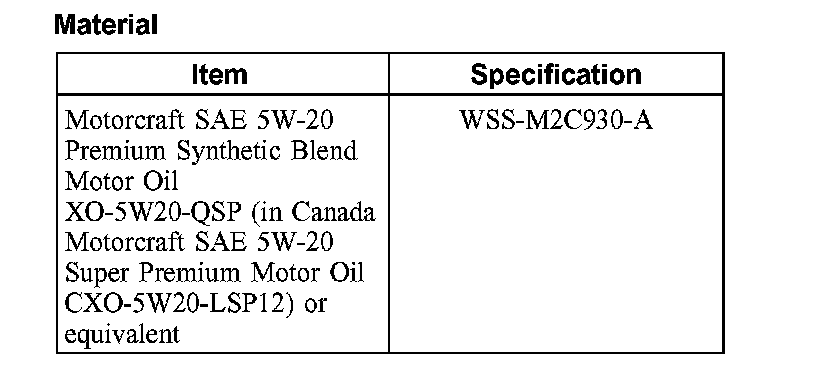

Material:

Oil Level Indicator and Tube:

Removal and Installation
1. Remove the oil level indicator.
2. Remove the stud bolt and the oil level indicator tube.
^ Remove and discard the O-ring seal.
^ To install, tighten to 9 Nm (80 inch lbs.).

3. NOTE: Install a new O-ring seal and lubricate with clean engine oil.

To install, reverse the removal procedure.
