Engine Mount - Anti-Roll

Engine Mount - Anti-Roll

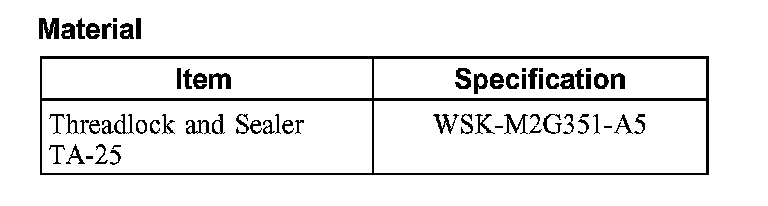

Material:

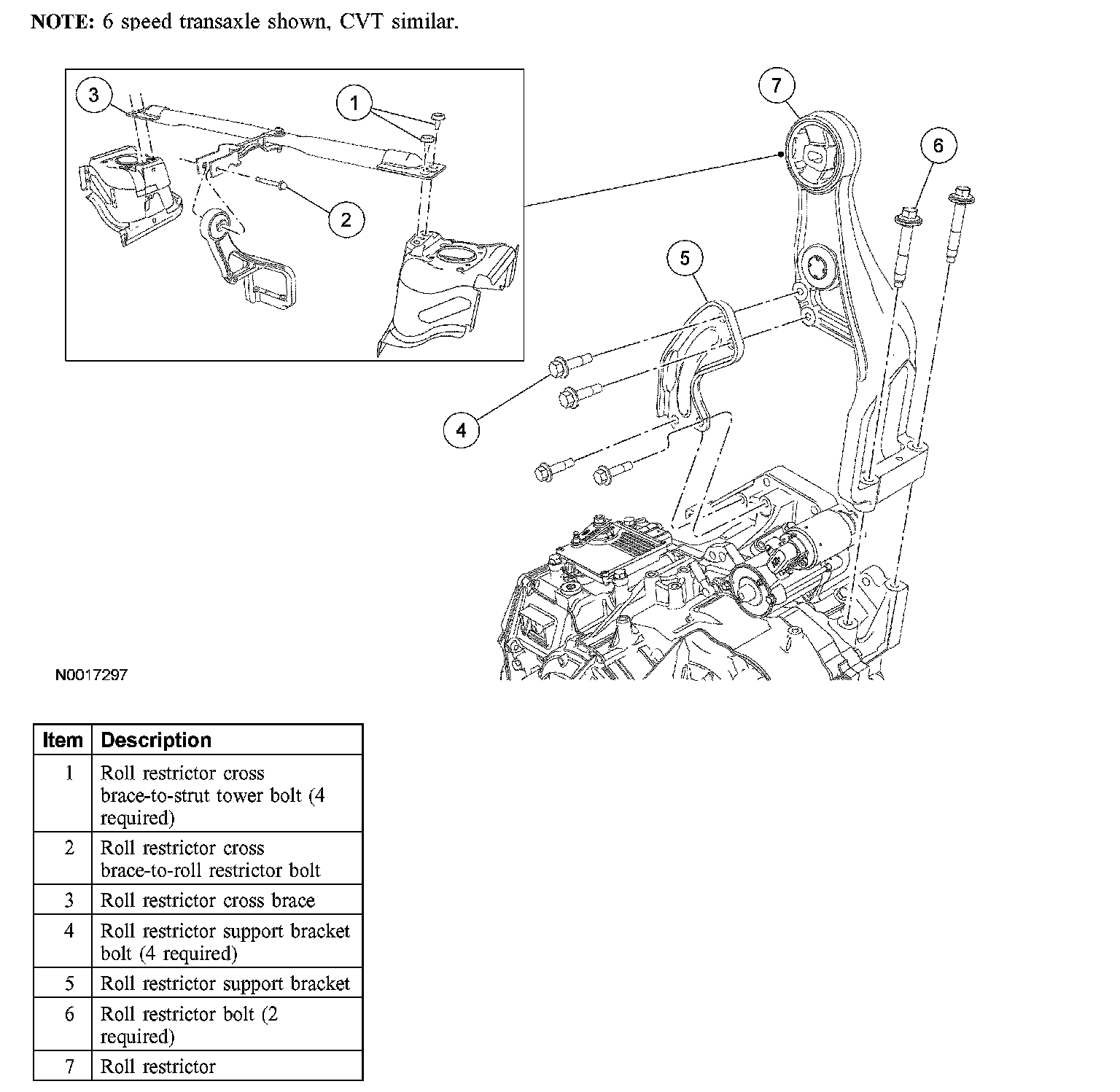

Removal and Installation
1. Remove the air cleaner outlet pipe.
2. Remove the 4 throttle body bolts and position the throttle body aside.
^ To install, tighten to 10 Nm (89 inch lbs.).

3. Remove the roll restrictor cross brace-to-roll restrictor bolt.
^ To install, clean the bolt using a wire brush, apply new threadlock to the threads and tighten to 48 Nm (35 ft. lbs.).

4. Remove the 4 roll restrictor cross brace-to-strut tower bolts and the crossbar.
^ To install, clean the bolts using a wire brush, apply new threadlock to the threads and tighten to 55 Nm (41 ft. lbs.).

5. Remove the 4 roll restrictor support bracket bolts and the support bracket.
^ To install, clean the bolts using a wire brush, apply new threadlock to the threads and tighten to 55 Nm (41 ft. lbs.).

6. Detach the wiring retainer from the roll restrictor.
7. Remove the 2 bolts and the roll restrictor.
^ To install, clean the bolt using a wire brush, apply new threadlock to the threads and tighten to 55 Nm (41 ft. lbs.).

8. To install, reverse the removal procedure.
