Principles of Operation

Engine Cooling

Refer to Vehicle/Diagrams for schematic and connector information.

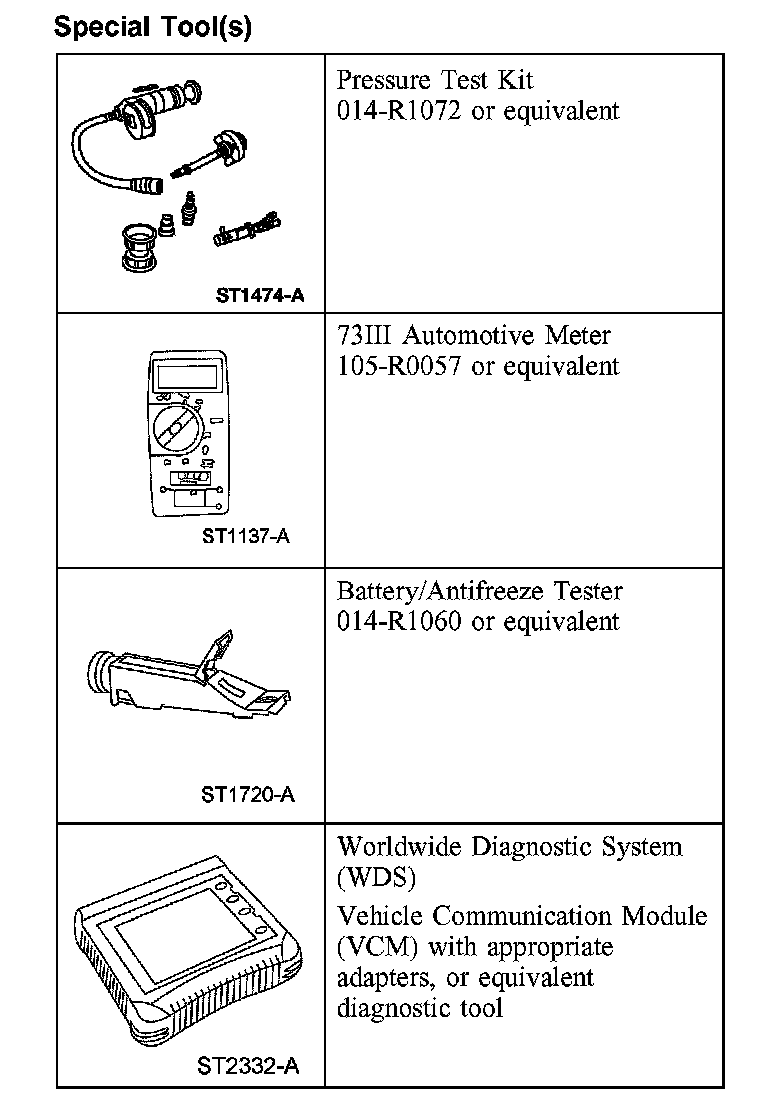

Special Tool(s):

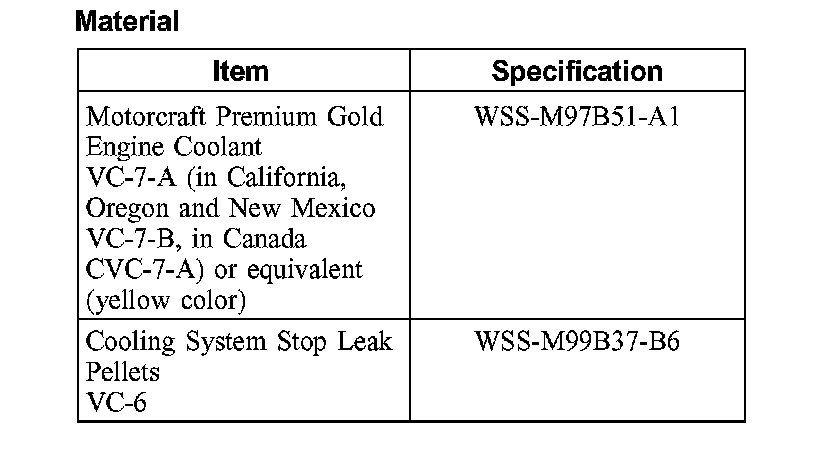

Material:

Principles of Operation

Cooling Fans
The cooling fans are controlled by a fan control module. The fan control module receives a variable signal from the powertrain control module (PCM). If DTC P0480 is present, refer to Computers and Control Systems for diagnosis.
