Thermostat, Engine Cooling

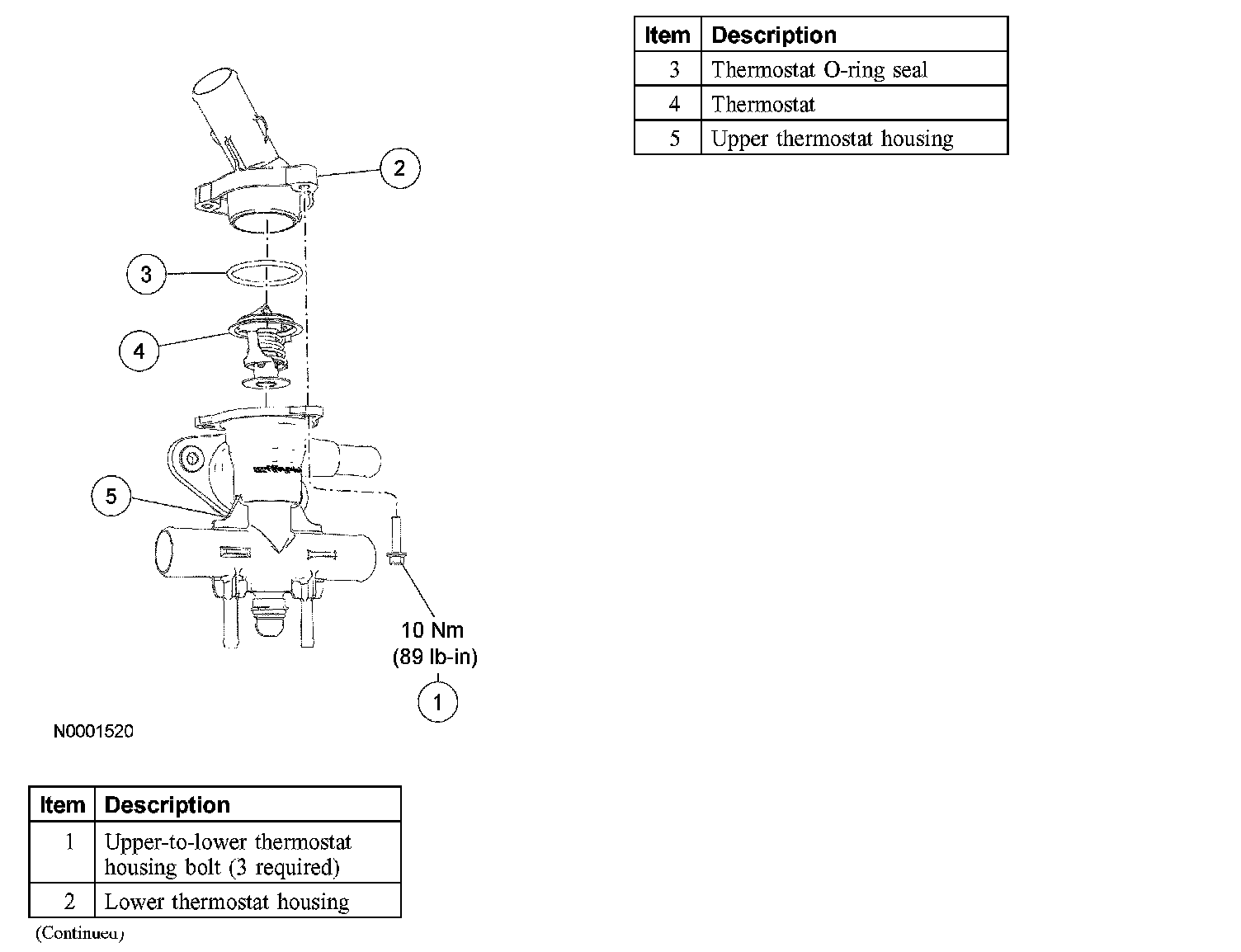

Thermostat and Thermostat Housing - Exploded View:

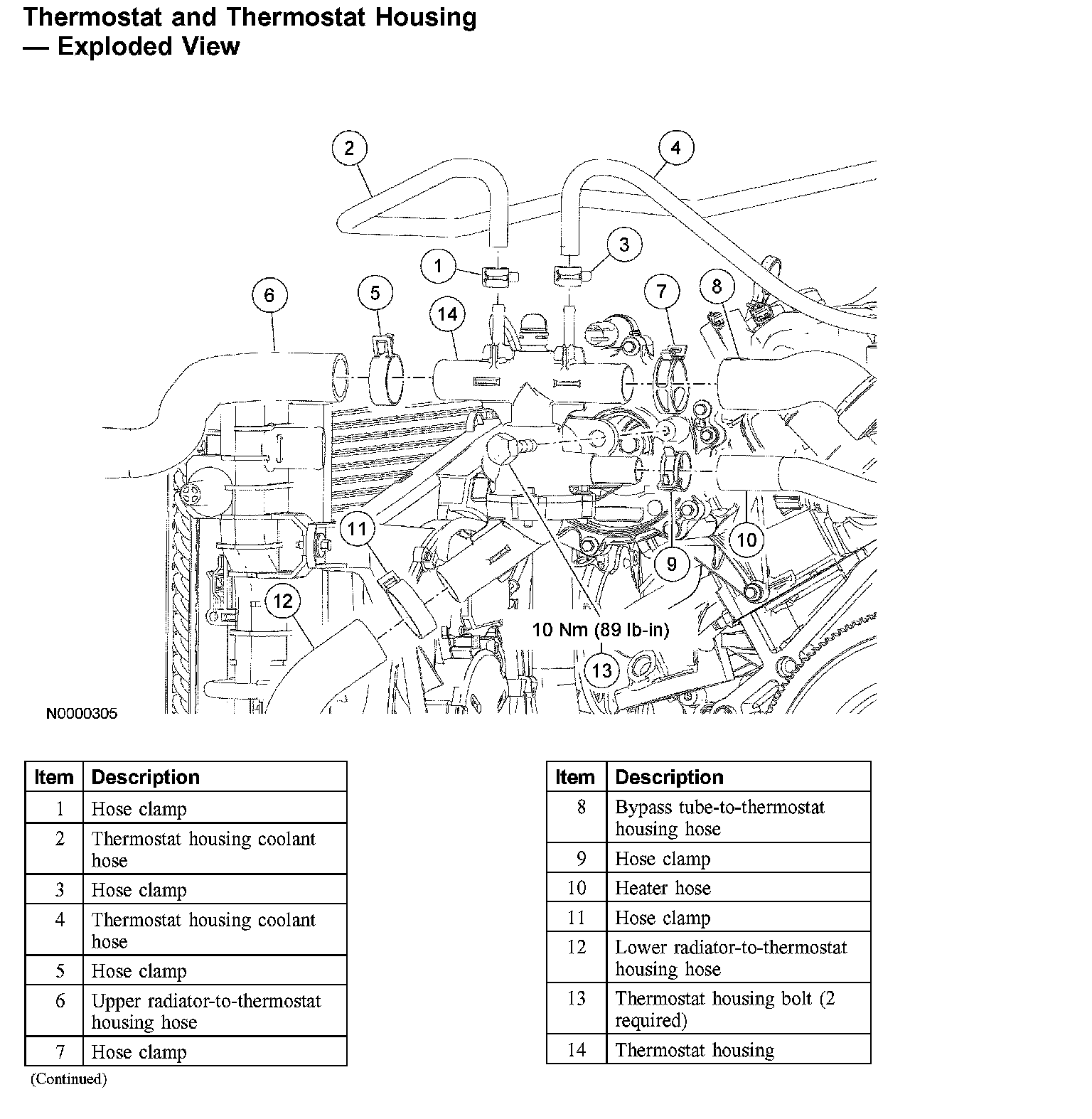

Thermostat and Thermostat Housing - Exploded View:
