Mercury
>>
2006
>>
Montego AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust System
Exhaust System

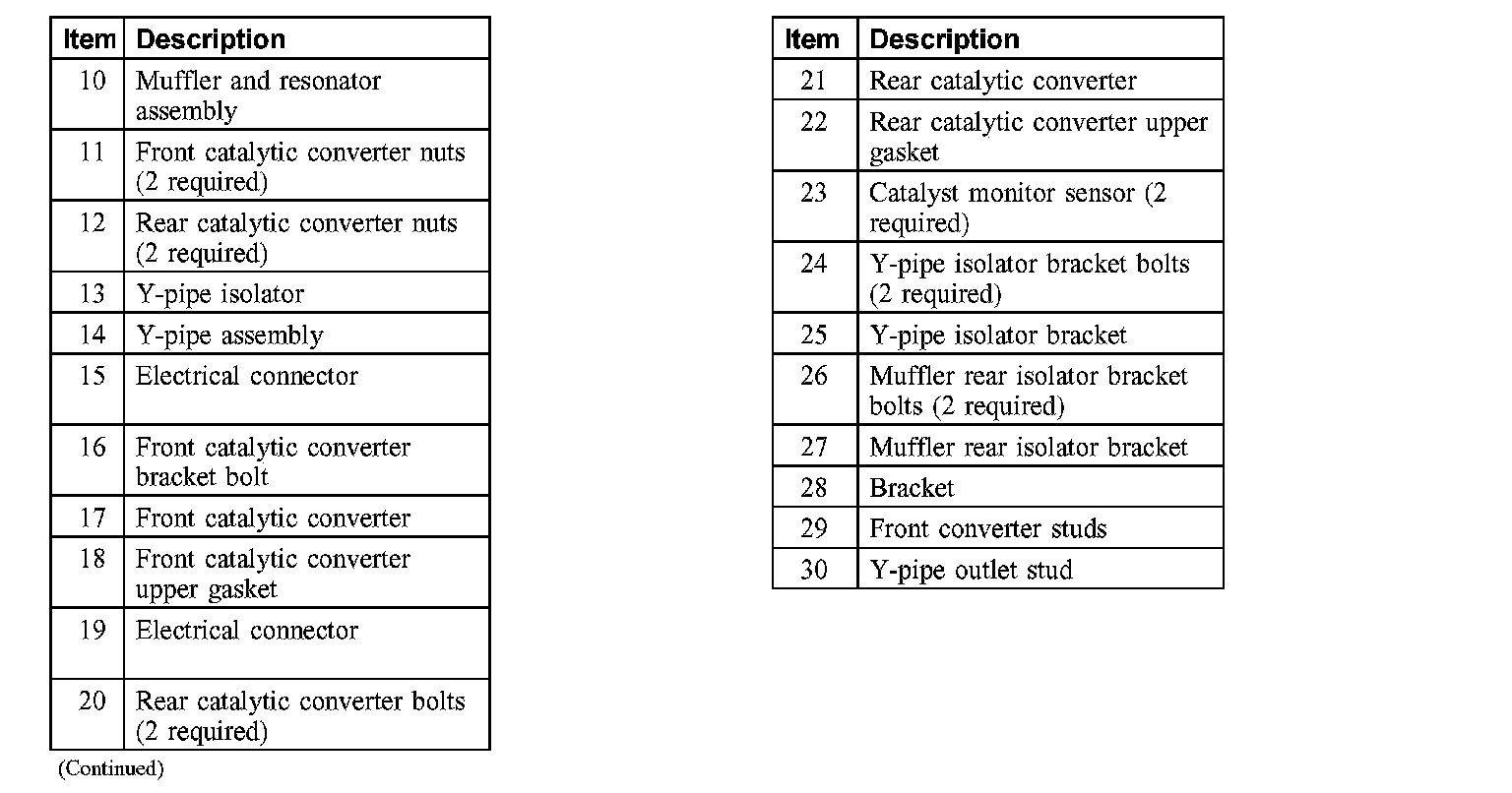

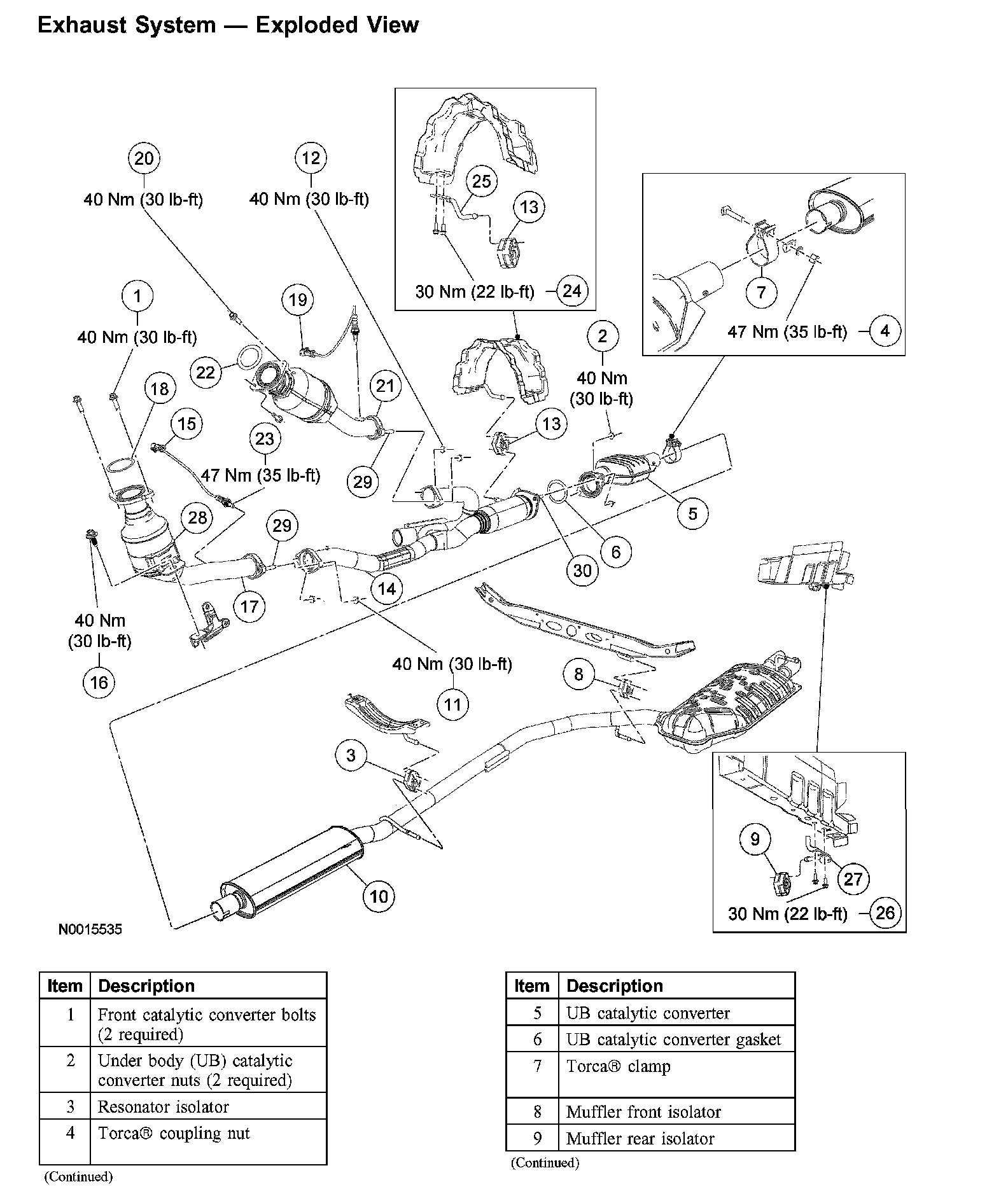

Exhaust System - Exploded View:
Exhaust System - Exploded View:
