Test A: The Parking Brake Will Not Apply
TEST A: THE PARKING BRAKE WILL NOT APPLYNormal Operation
The parking brake system is cable-actuated and controlled by an independent foot-operated parking brake control that is self-adjusting. The parking brake system is actuated when the parking brake control is pressed. The parking brake control applies tension to brake pads through the front parking brake cable and conduit, the intermediate parking brake cable, and the LH and RH rear parking brake cables. The respective rear parking brake assemblies are then applied.
Possible Causes
^ parking brake control
^ parking brake cables
^ parking brake assembly
^ parking brake rear wheel components

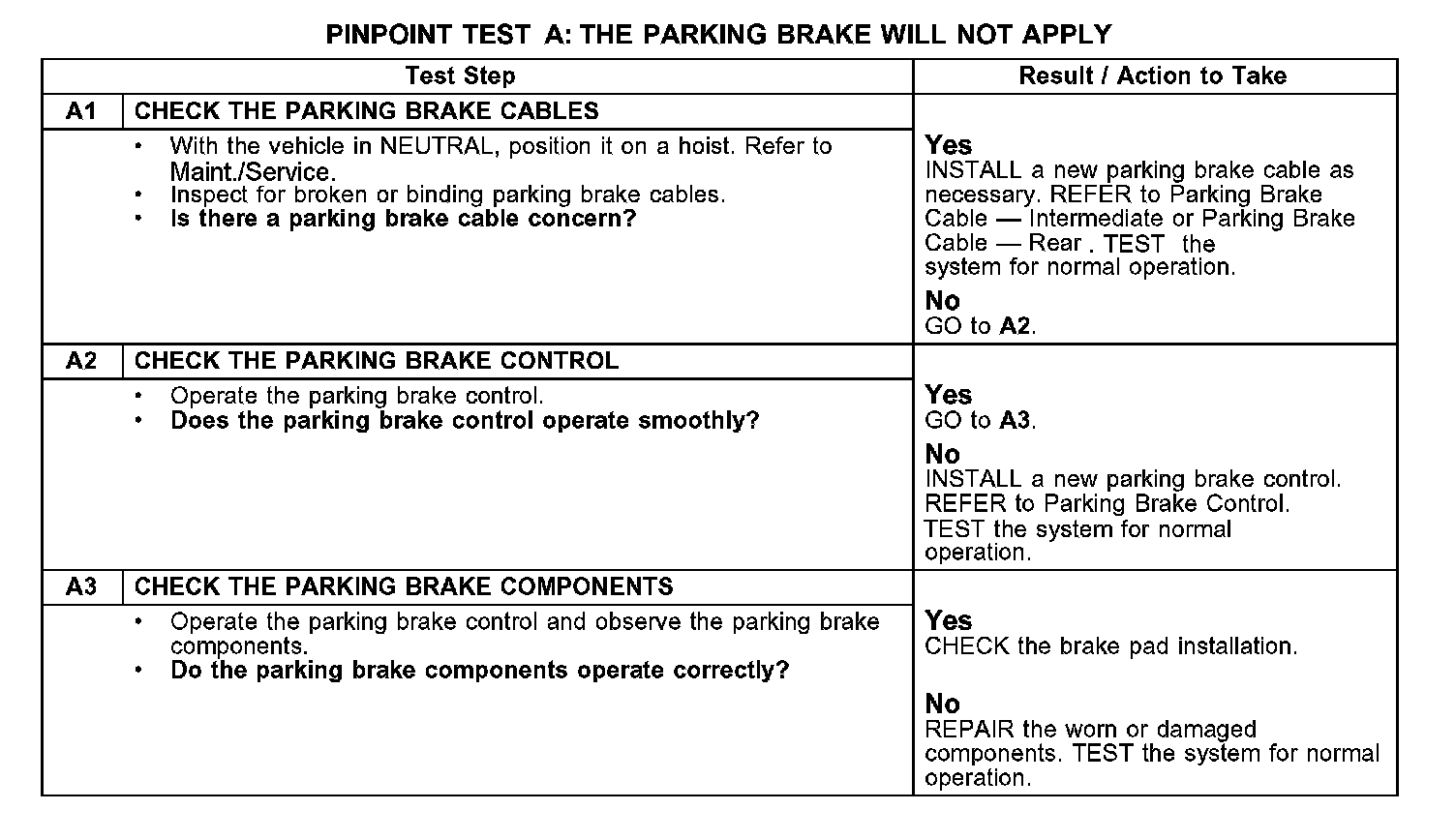

A1-A3:
