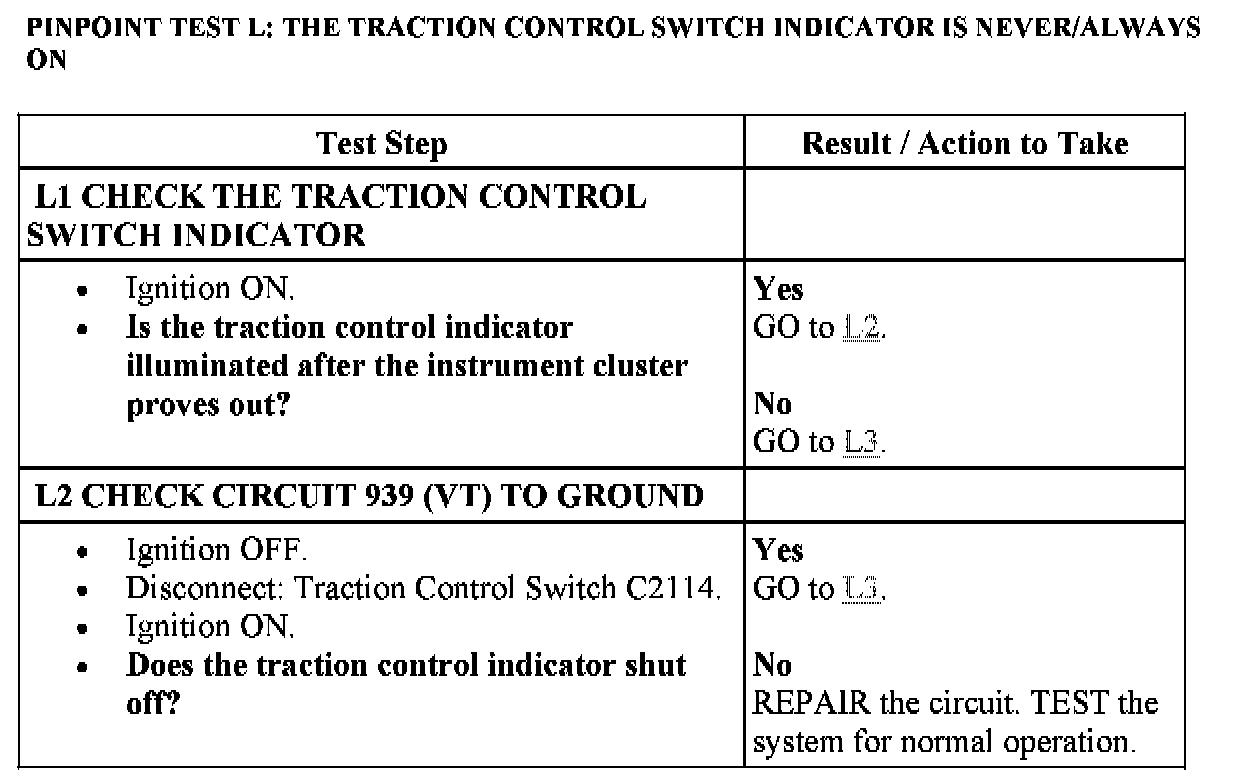

Test L: The Traction Control Switch Indicator Is Never/Always ON

TEST L: THE TRACTION CONTROL SWITCH INDICATOR IS NEVER/ALWAYS ON

Normal Operation
Voltage is supplied by the smart Junction box (SJB) to the traction control switch indicator through circuit 972 (BK/WH). The signal is grounded through the traction control switch on circuit 939 (VT) to the instrument cluster.

Possible Causes
^ Fuse

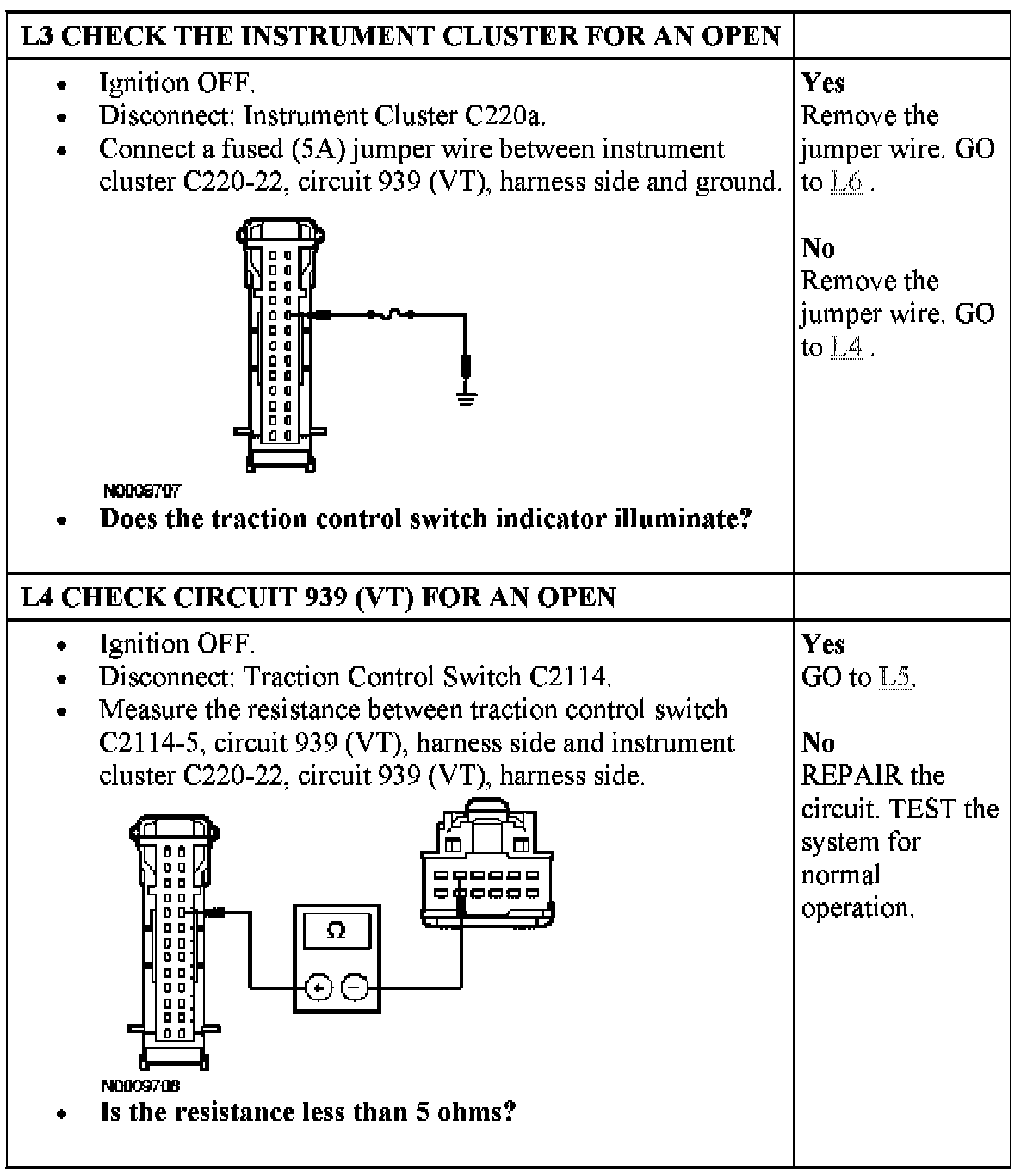

^ Circuit 939 (VT) open or short to ground

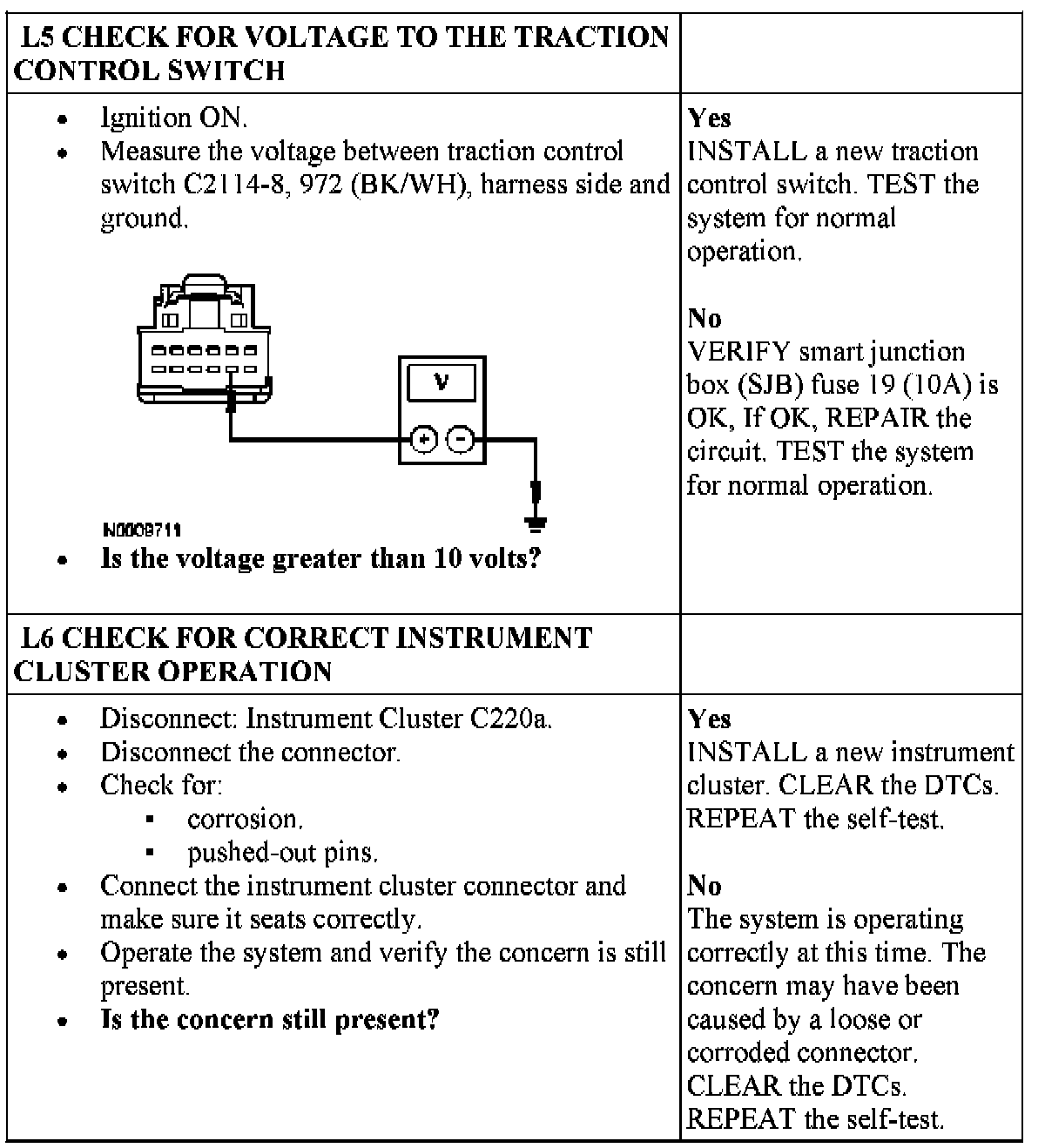

^ Circuit 972 (BK/WH) open
^ Instrument cluster
^ Traction control switch
