Test B: The Roof Opening Panel Leaks

PINPOINT TEST B: THE ROOF OPENING PANEL LEAKS

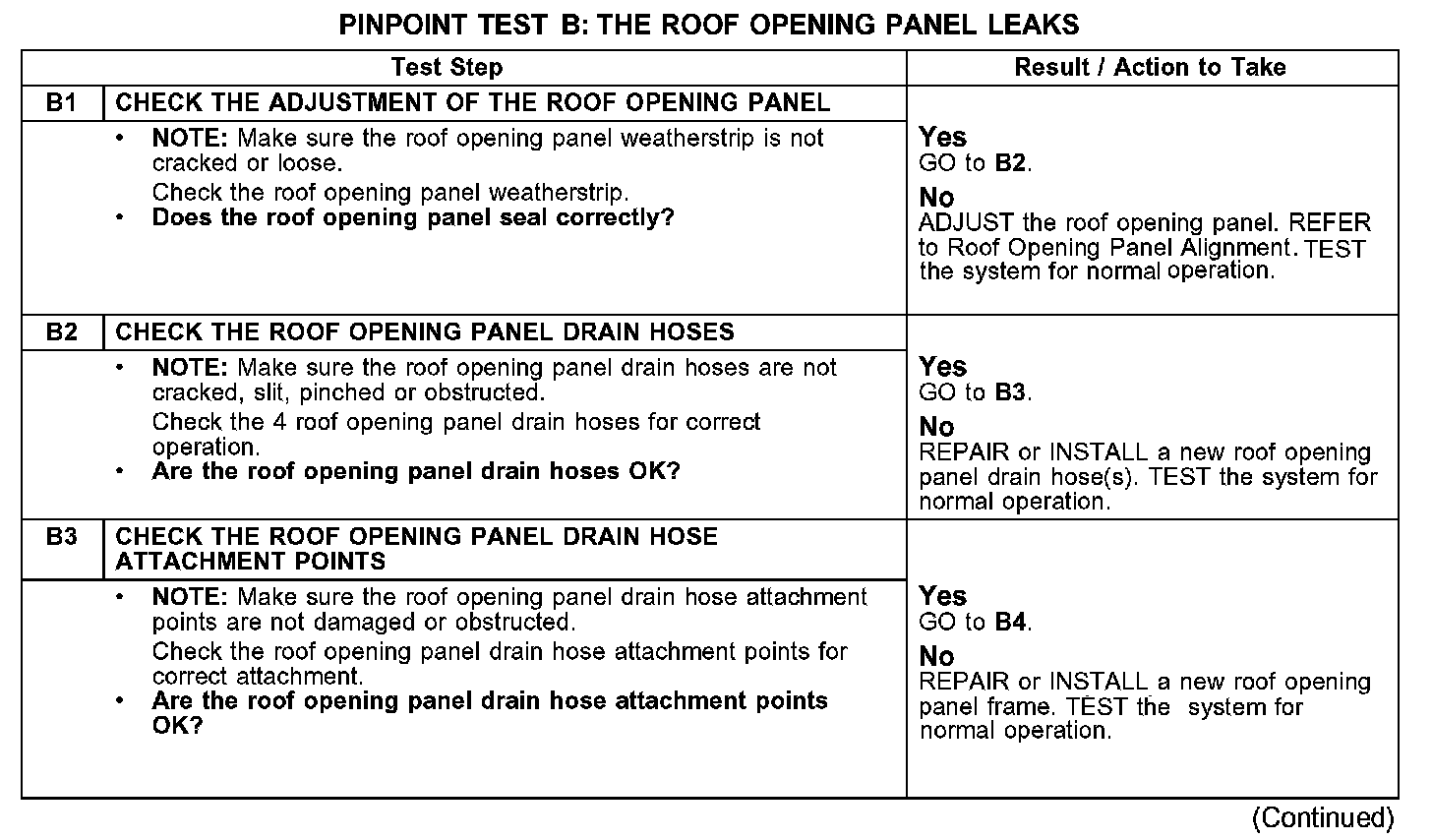

B1-B3:

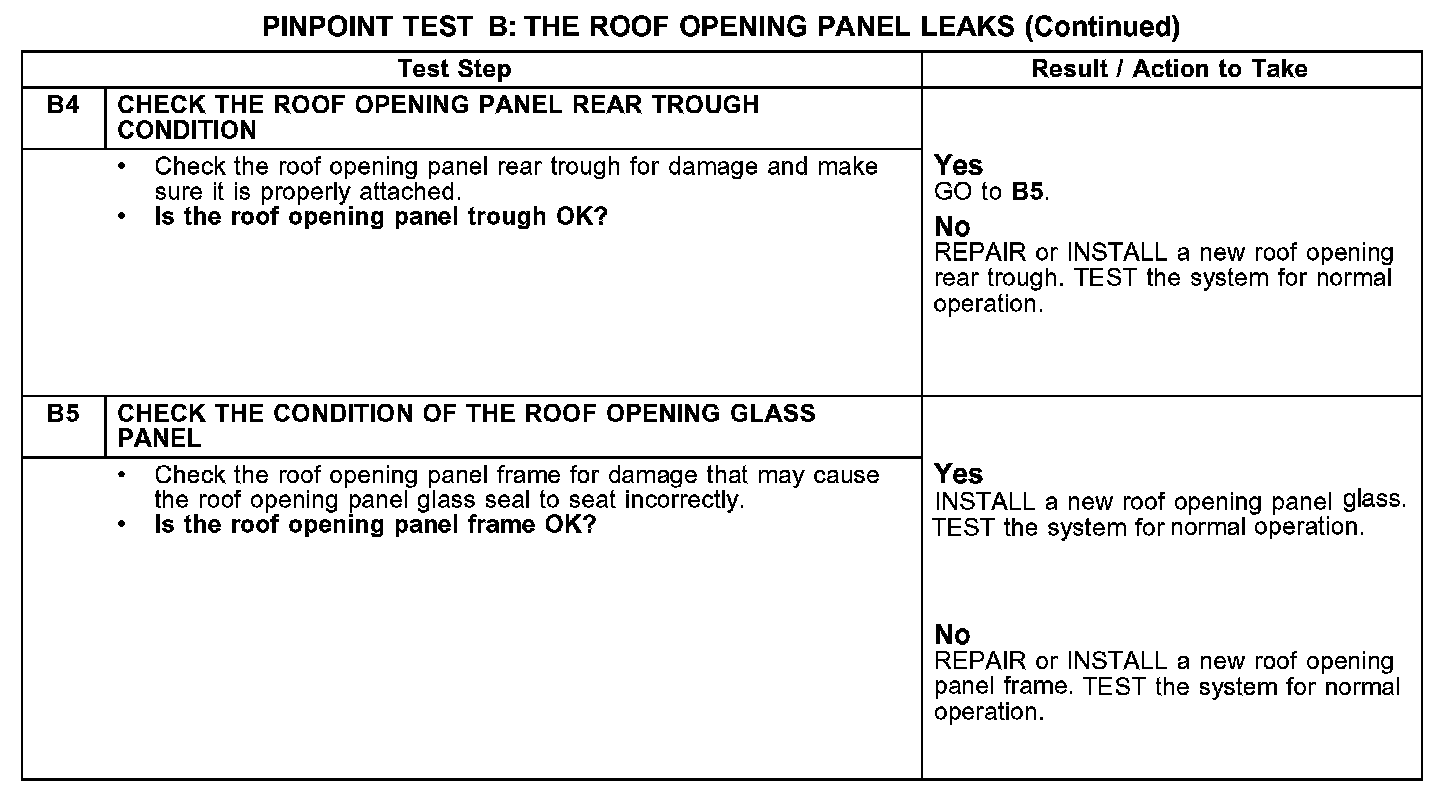

B4-B5:

Normal Operation
When the roof opening panel glass is completely closed, it should be within specifications. Refer to Specifications.

Possible Causes
- Incorrect roof opening panel adjustments
- Damaged roof opening panel drain hoses
- Roof opening panel not fully closed
- Damaged roof opening panel seal/weatherstrip
- Damaged roof opening panel frame
- Incorrect position of the roof opening panel glass
