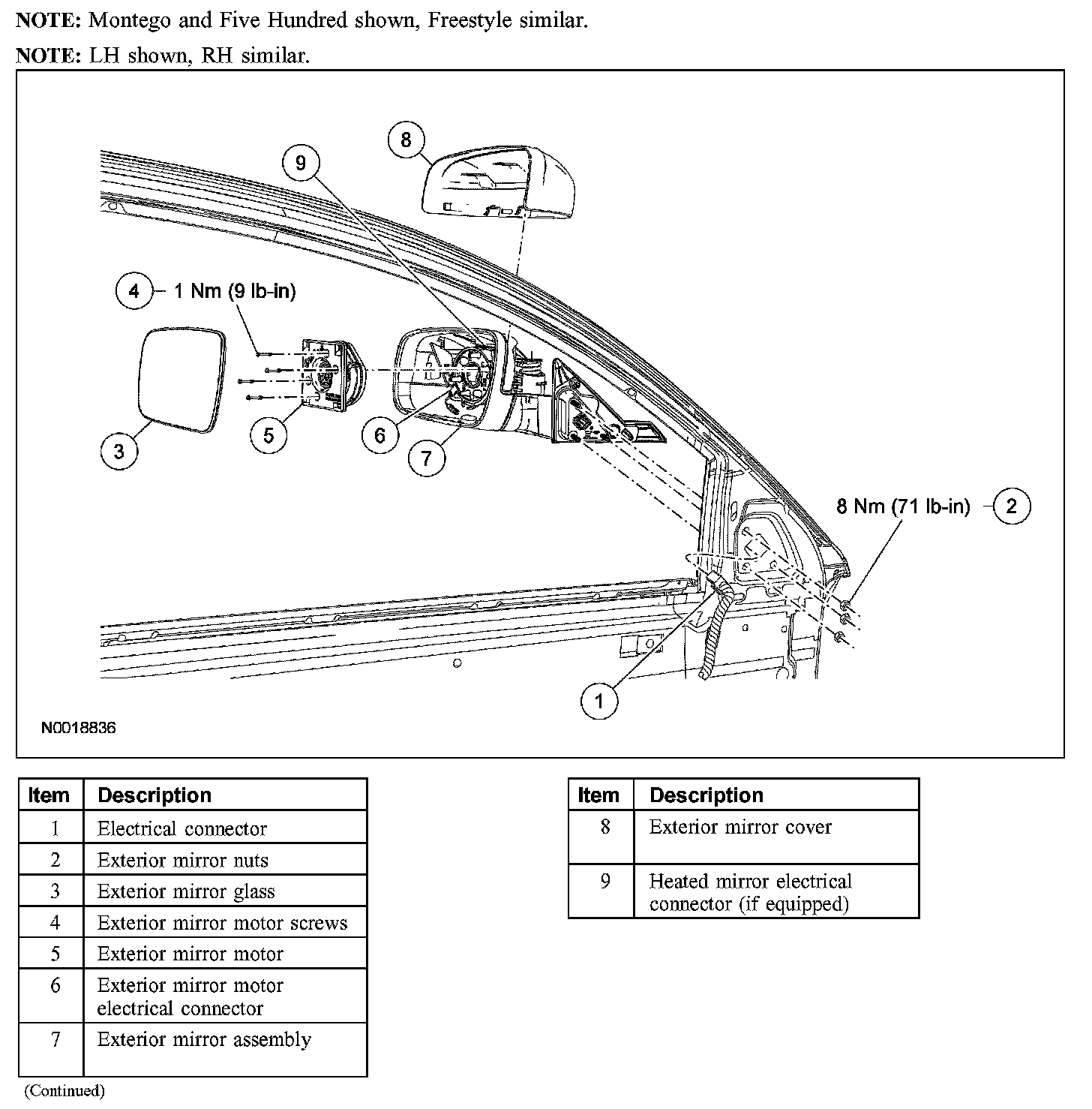

Exterior Mirrors - Exploded View
Exterior Mirrors - Exploded View
EXTERIOR
MIRRORS
- EXPLODED VIEW
Removal and Installation
1.
For additional information, refer to the procedures.
