Test M: The Remote Keyless Entry (RKE) Transmitter Has Poor Range Performance

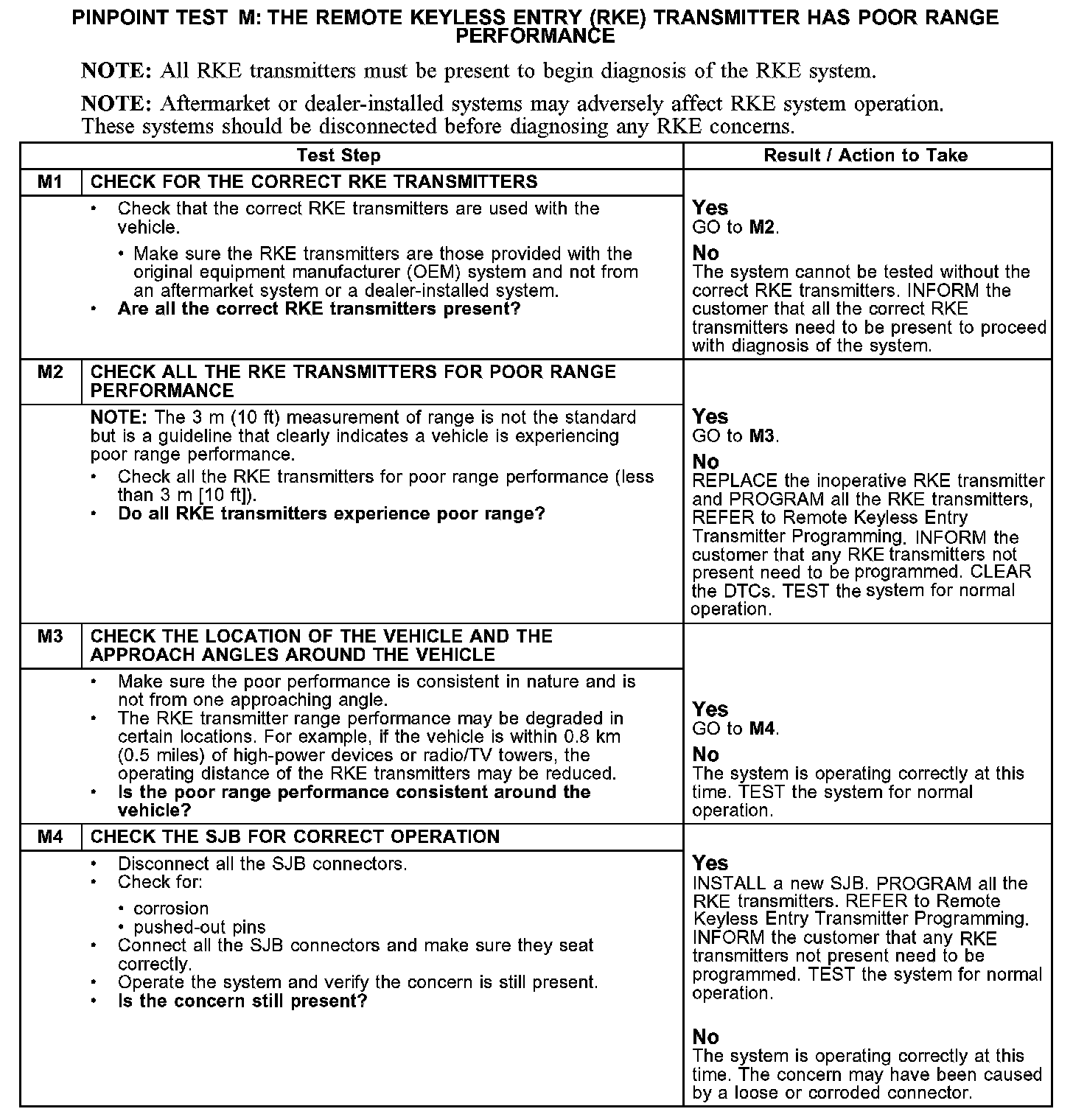

PINPOINT TEST M: THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER HAS POOR RANGE PERFORMANCE

M1-M4:

Normal Operation
The RKE transmitter sends a radio signal to the smart junction box (SJB) based on the user selected RKE transmitter button. The SJB then carries out the selected action.

Possible Causes
- RKE transmitter
- Aftermarket system
- High power devices
- TV/radio transmission towers
- SJB
