Test K: Panic Feature Is Inoperative/Does Not Operate Correctly

PINPOINT TEST K: PANIC FEATURE IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

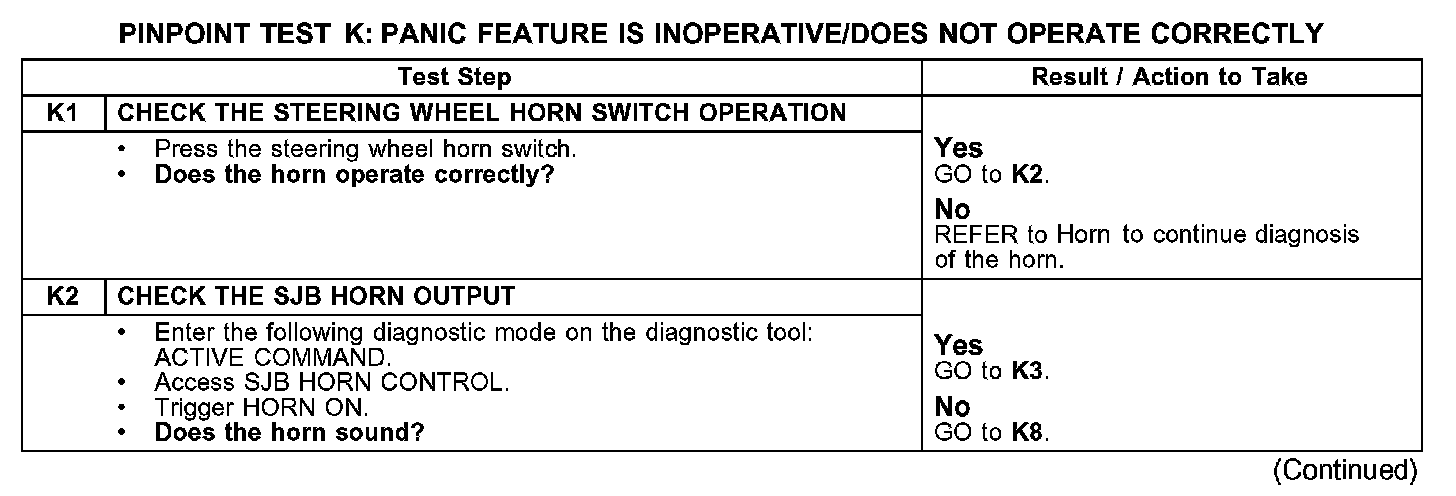

K1-K2:

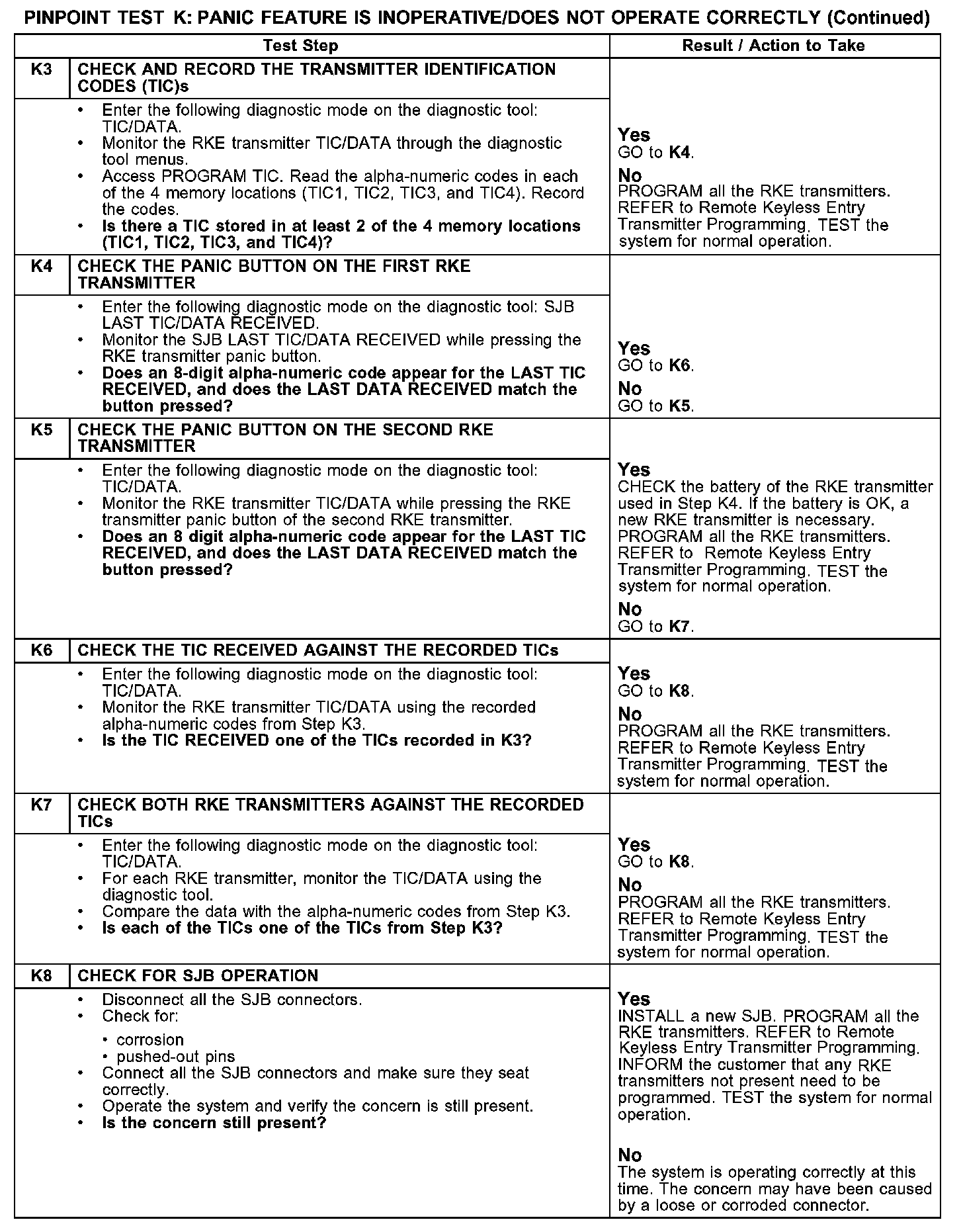

K3-K8:

Normal Operation
When the smart junction box (SJB) receives a command indicating an activation of the panic alarm, the SJB energizes the horn and turn signal lamps as a visual and audible alarm.

Possible Causes
- remote keyless entry (RKE) transmitter
- SJB
