Test H: The Smart Lock Does Not Operate Correctly

PINPOINT TEST H: THE SMART LOCK DOES NOT OPERATE CORRECTLY

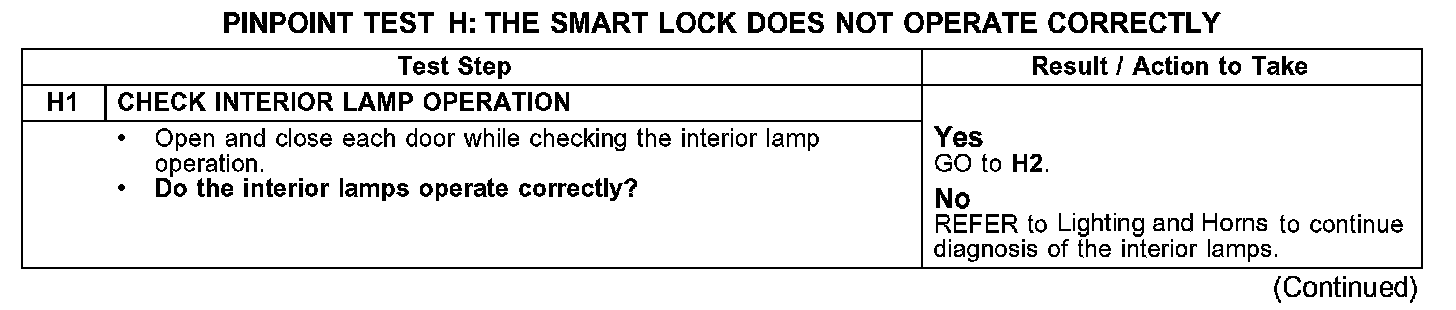

H1:

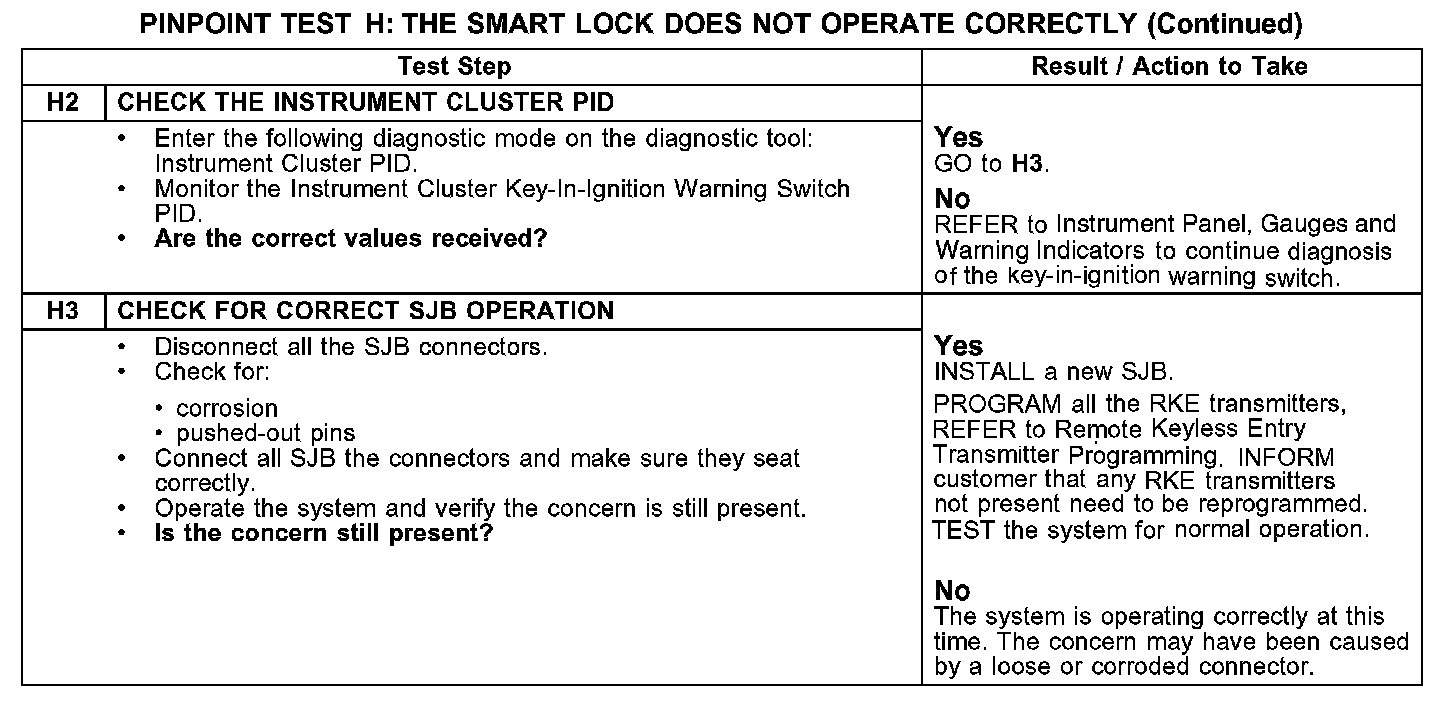

H2-H3:

Normal Operation
The smart junction box (SJB) prohibits the LH front door from remaining locked if it receives a signal that the key is in the ignition switch and a lock request is received when the LH front door is ajar.

Possible Causes
- SJB
