Door Lock Cylinder: Service and Repair
DOOR LOCK CYLINDERRemoval and Installation
NOTE: Individual lock cylinders are repaired by discarding the inoperative cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the current key code of the vehicle.
1. Remove the front door trim panel.
2. Position the watershield aside.
3. Remove the circlip and position the door lock cylinder actuating rod and pawl aside.
4. If equipped, position the disarm switch aside.

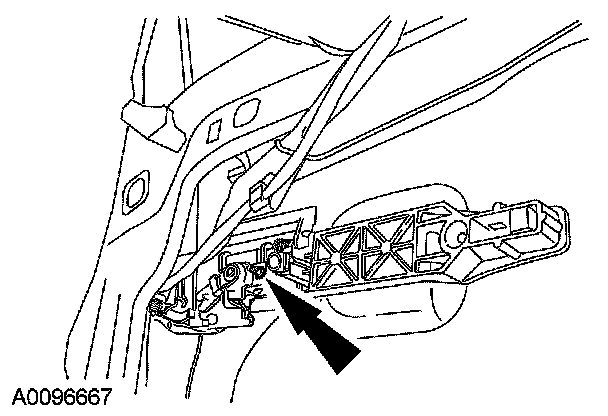

5. Remove the exterior door handle nut.
- To install, tighten to 7 Nm (62 lb-in).
6. Release the tab and remove the door lock cylinder.
7. To install, reverse the removal procedure.
