Instrument Panel Center Finish Panel

INSTRUMENT PANEL CENTER FINISH PANEL

Removal and Installation
1. Remove the floor shifter trim ring.
2. Remove the floor console center finish panel.

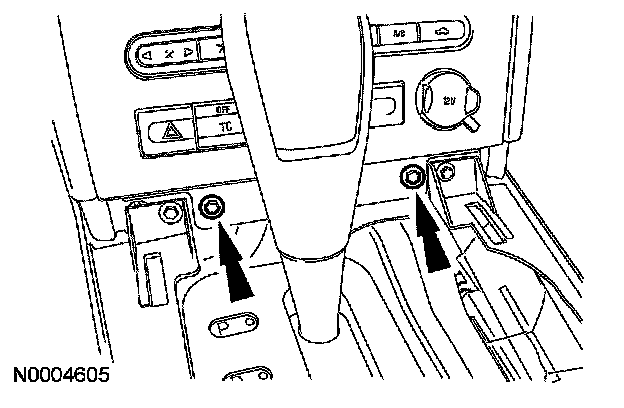

3. Remove the 2 instrument panel center finish panel screws.
4. Remove the instrument panel center finish panel.
- Disconnect the electrical connectors.

5. To install, reverse the removal procedure.
