Instrument Panel - Exploded View

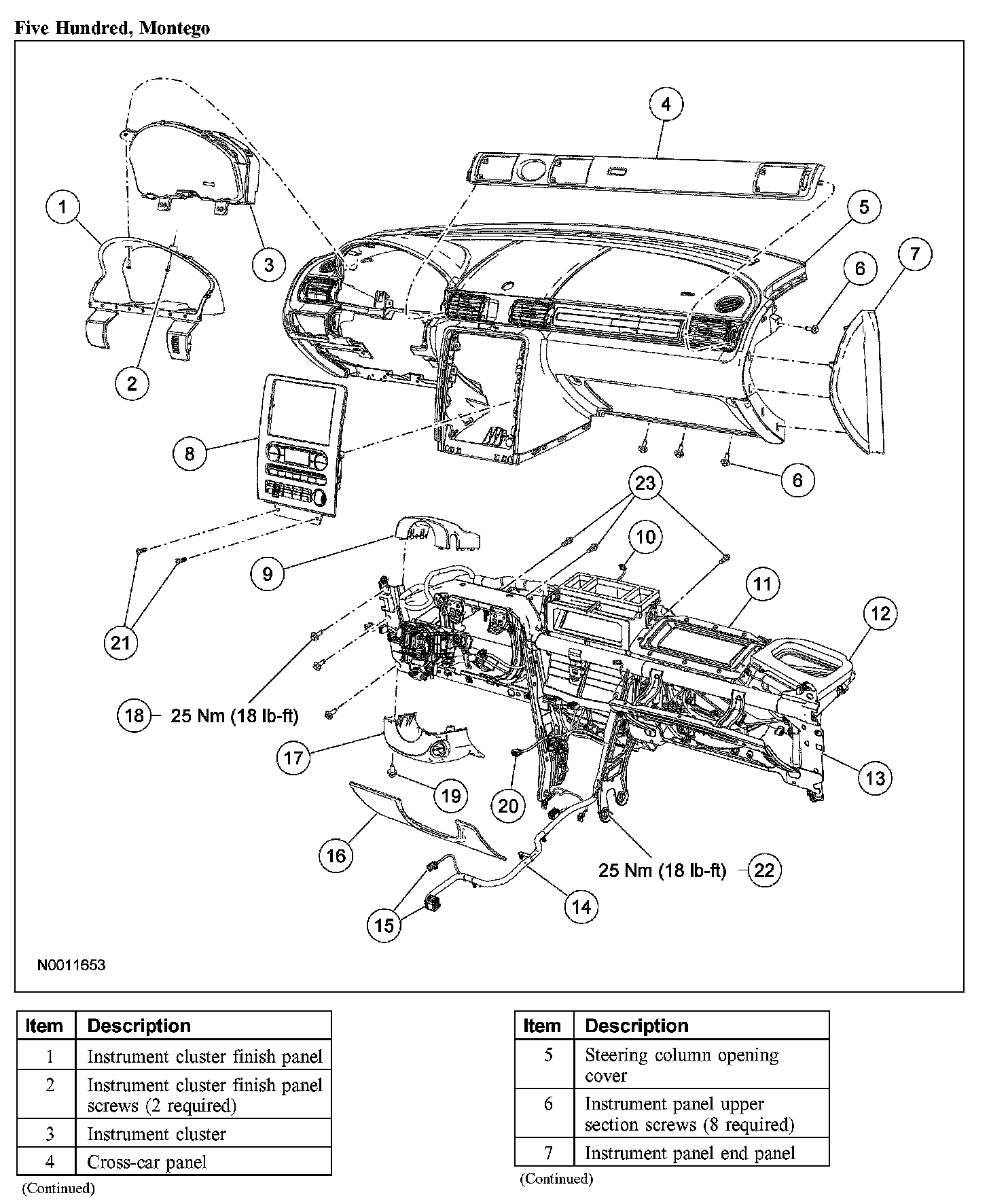

INSTRUMENT PANEL - EXPLODED VIEW

Part 1:

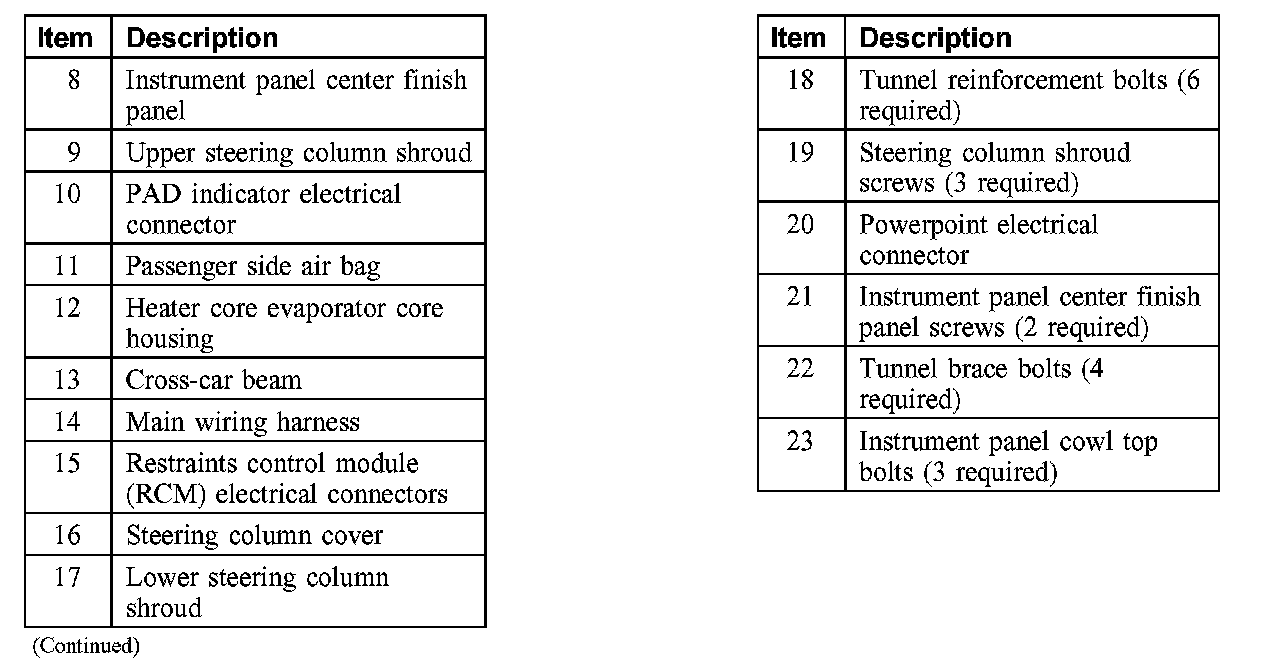

Part 2:

Part 1:

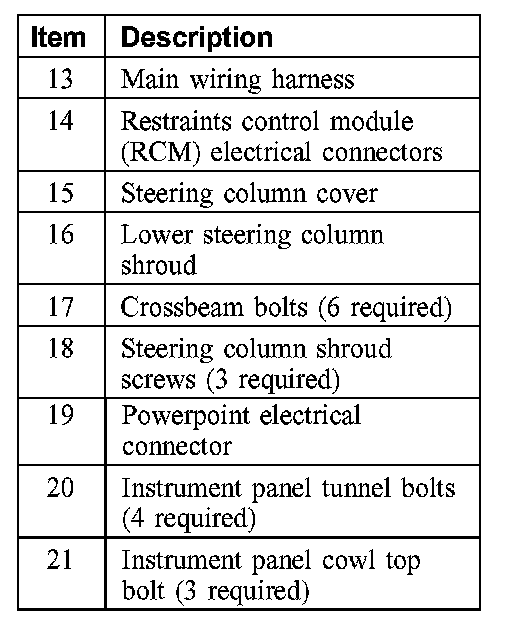

Part 2:

Removal and Installation
1. For additional information, refer to the procedures.
