Grille: Service and Repair

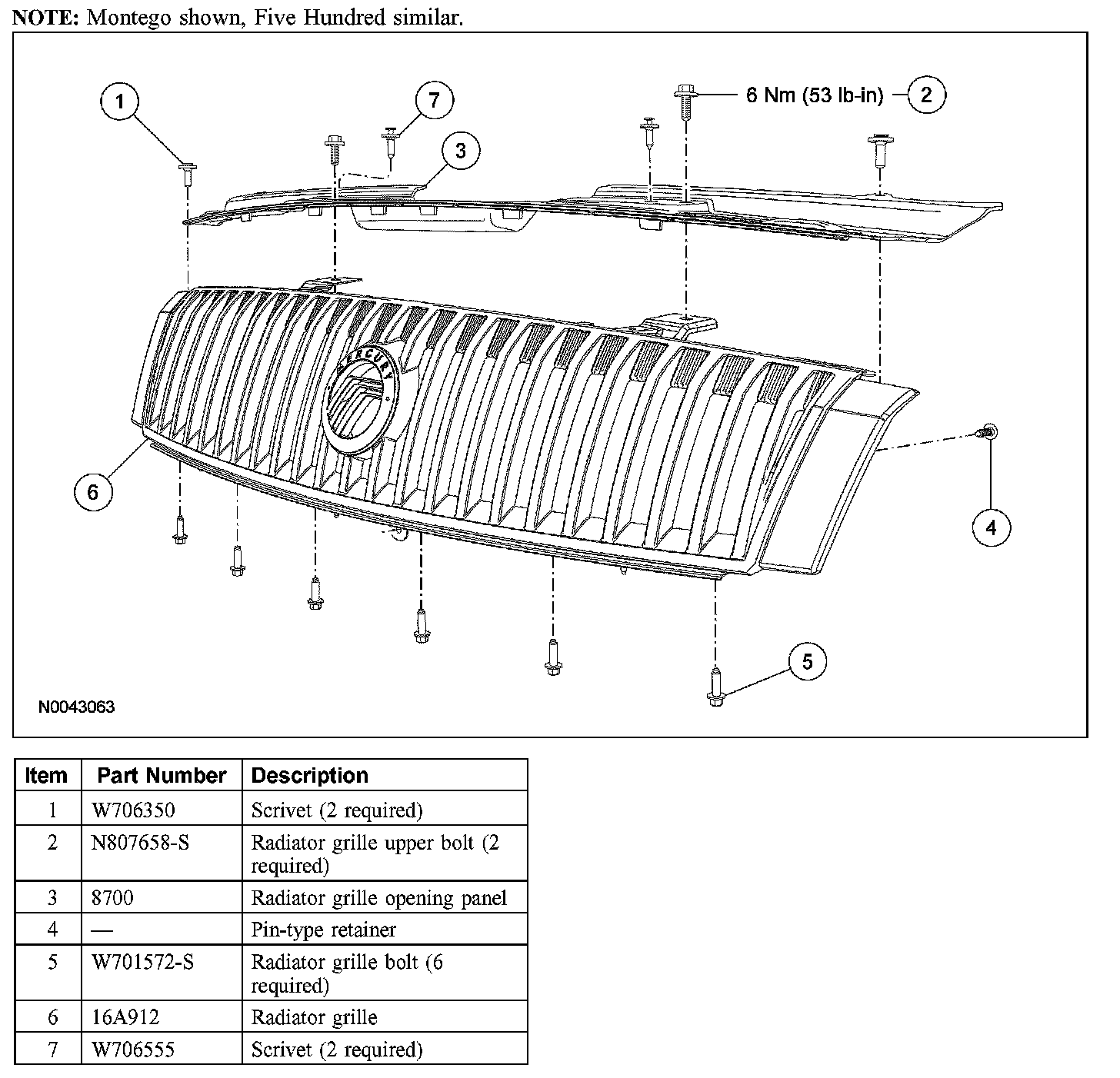

RADIATOR GRILLE-FIVE HUNDRED, MONTEGO







Removal and Installation

All vehicles
1. Open the hood.
2. Remove the 4 scrivets.
3. Remove the radiator grille opening panel bolts.
- To install, tighten to 6 Nm (53 lb-in).

4. Remove the radiator grille opening panel.
5. Position the top of the radiator grille forward for access to the radiator grille bolts.

Montego
6. Remove the radiator grille pin-type retainer.

All vehicles
7. Remove the 6 radiator grille bolts.
8. Remove the radiator grille.
9. To install, reverse the removal procedure.
