Rear Door Panel: Service and Repair

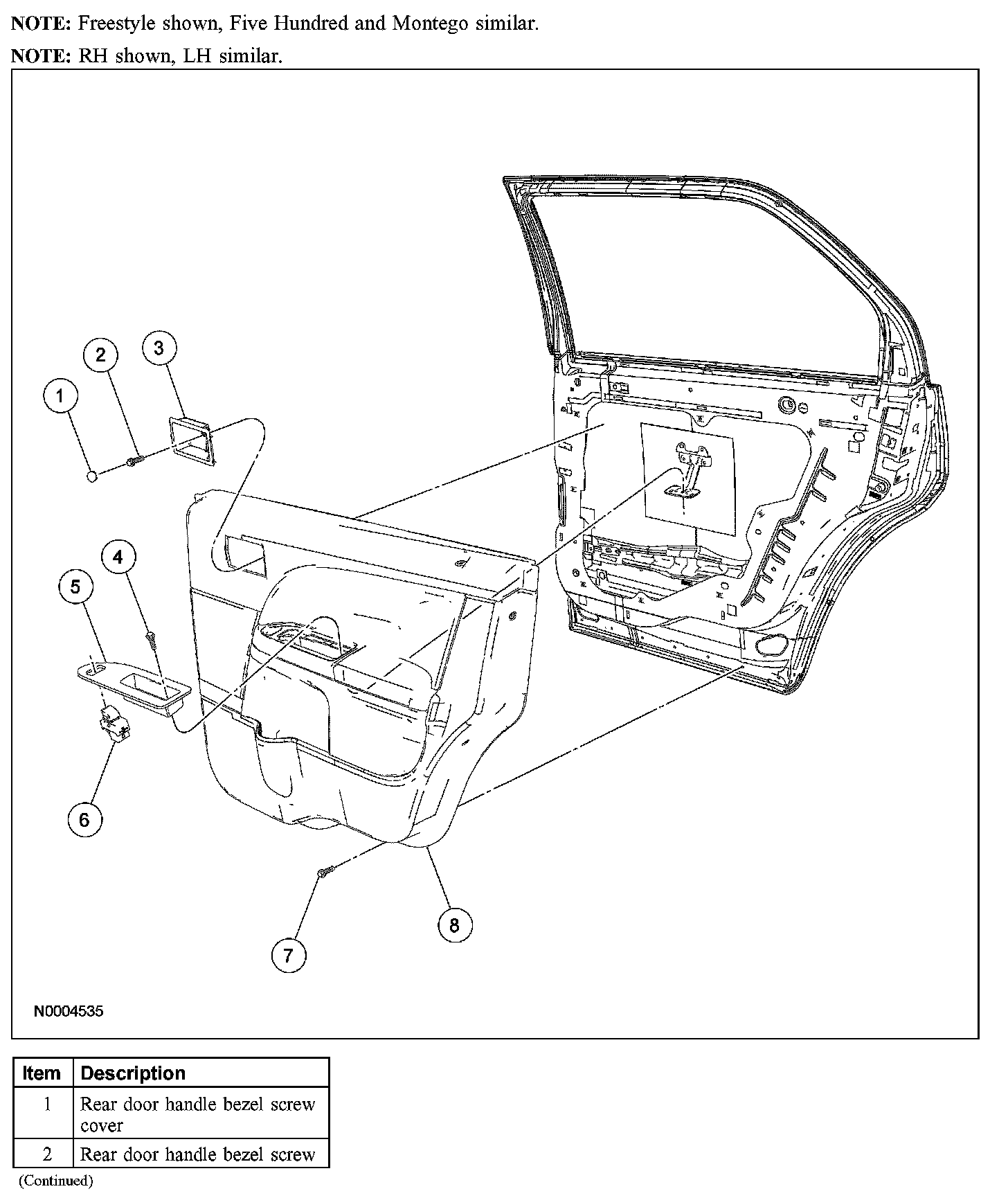

REAR DOOR TRIM PANEL

Part 1:

Part 2:

Removal and Installation
1. Remove the rear door handle bezel screw cover.
2. Remove the rear door handle bezel screw.
3. Remove the rear door handle bezel.
4. Remove the rear door handle trim cover screw.
5. Remove the 6 rear door trim panel screws.
6. Position the rear door trim panel by pulling straight away from the rear door to release the retaining clips.
7. Disconnect the power window switch.
8. Remove the rear door trim panel.
9. To install, reverse the removal procedure.
