Test I: The Digital Versatile Disc (DVD) Player Is Inoperative/Does Not Operate Correctly

PINPOINT TEST I: THE DIGITAL VERSATILE DISC (DVD) PLAYER IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

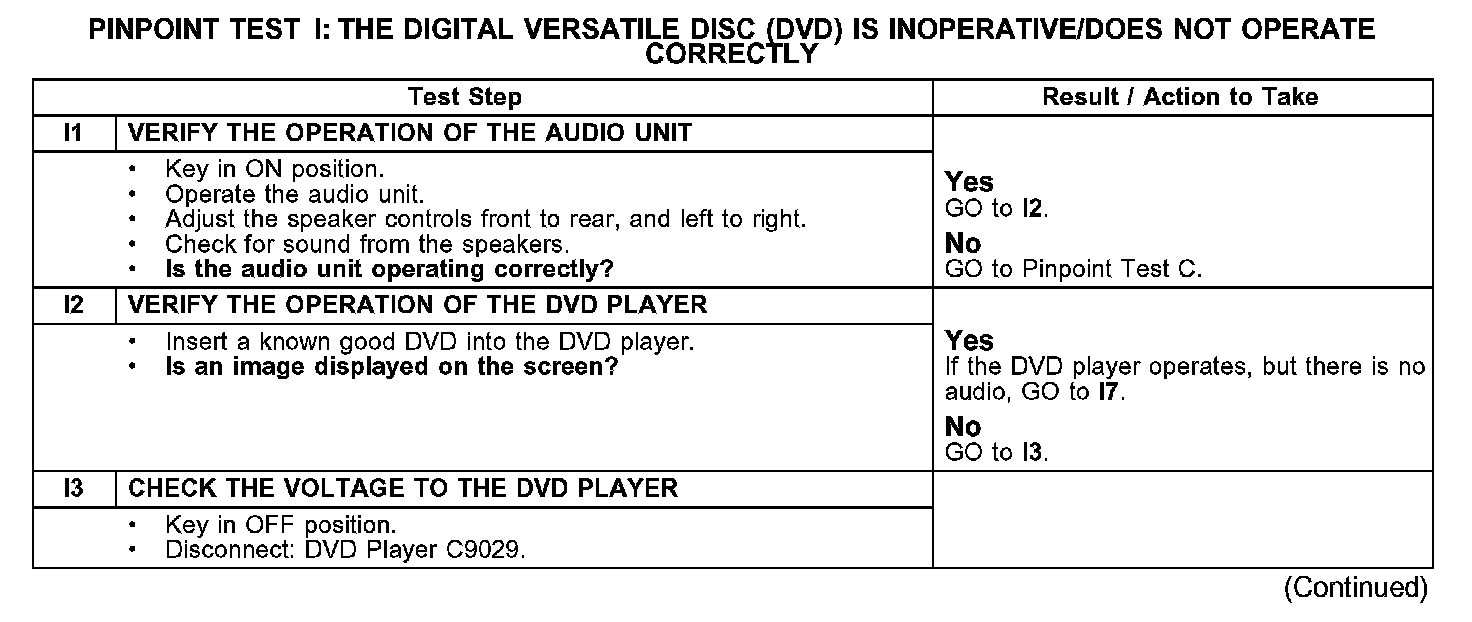

I1-I3:

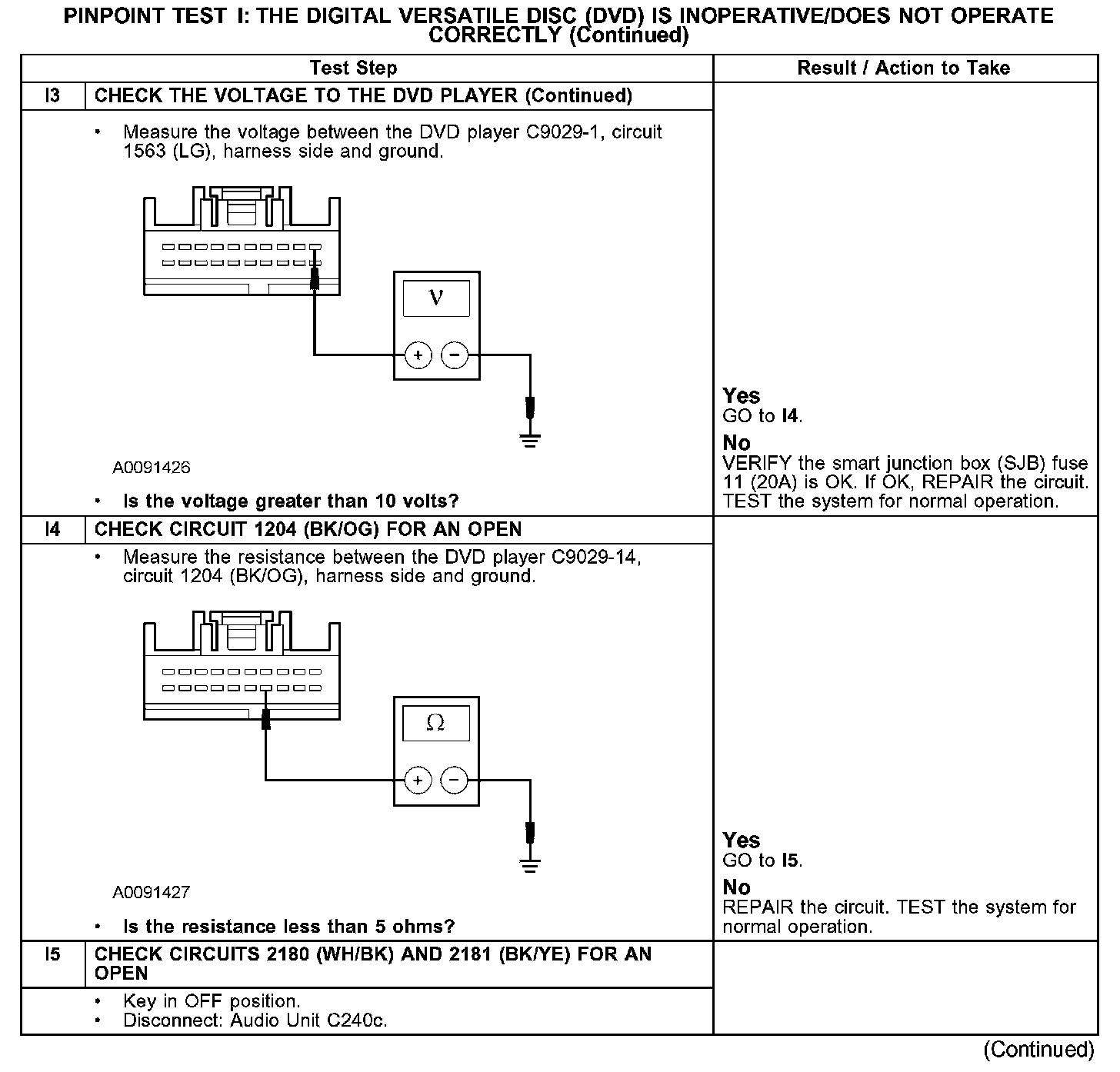

I3-I5:

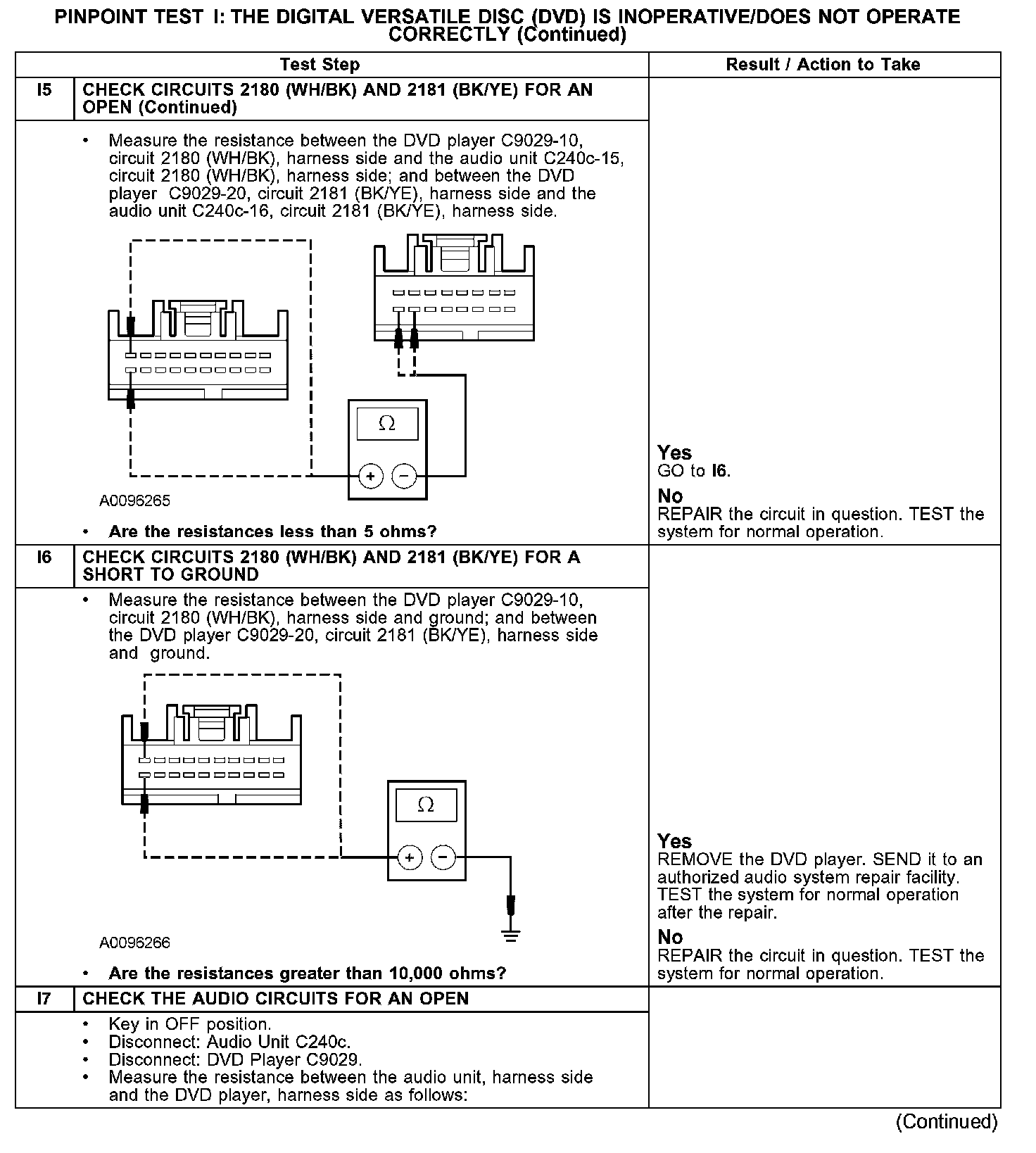

I5-I7:

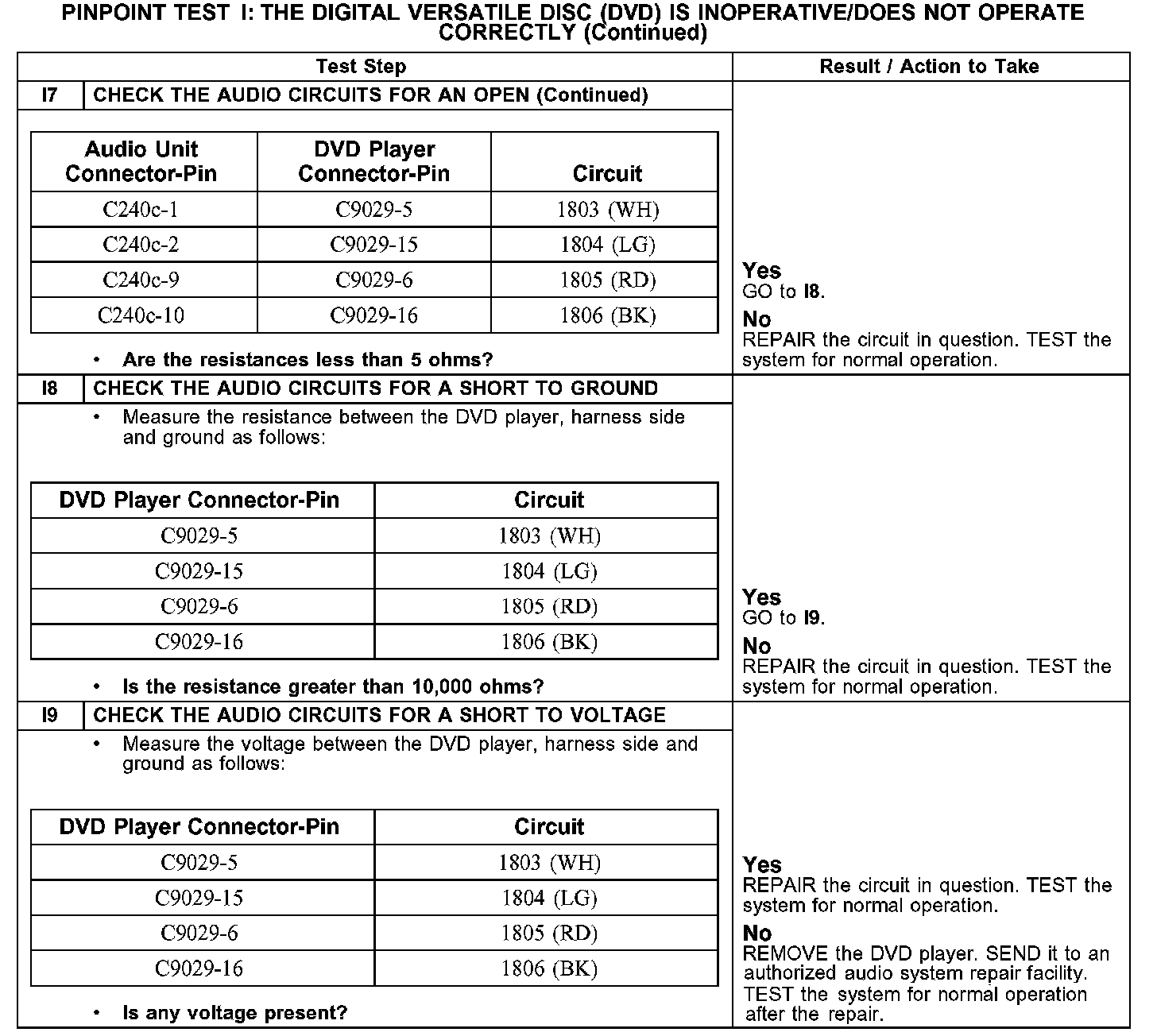

I7-I9:

Normal Operation
The DVD player receives a wake up signal from the audio unit through the controller area network (CAN). The DVD player is powered through circuit 1563 (LG) and grounded on circuit 1204 (BK/OG). When a video disc is inserted into the DVD player and the PLAY button is pressed, an image is displayed on the screen and a stereo signal is transmitted to the audio unit on circuits 1803 (WH), 1804 (LG), 1805 (RD) and 1806 (BK).

Possible Causes
- Fuse
- Circuit 1563 (LG) open
- Circuit 1204 (BK/OG) open
- Circuit 2180 (WH/BK) open or short to ground
- Circuit 2181 (BK/YE) open or short to ground
- Circuit 1803 (WH) open or short to ground
- Circuit 1804 (LG) open or short to ground
- Circuit 1805 (RD) open or short to ground
- Circuit 1806 (BK) open or short to ground
- DVD player
