PINPOINT TEST A: THE UNIVERSAL TRANSMITTER IS INOPERATIVE

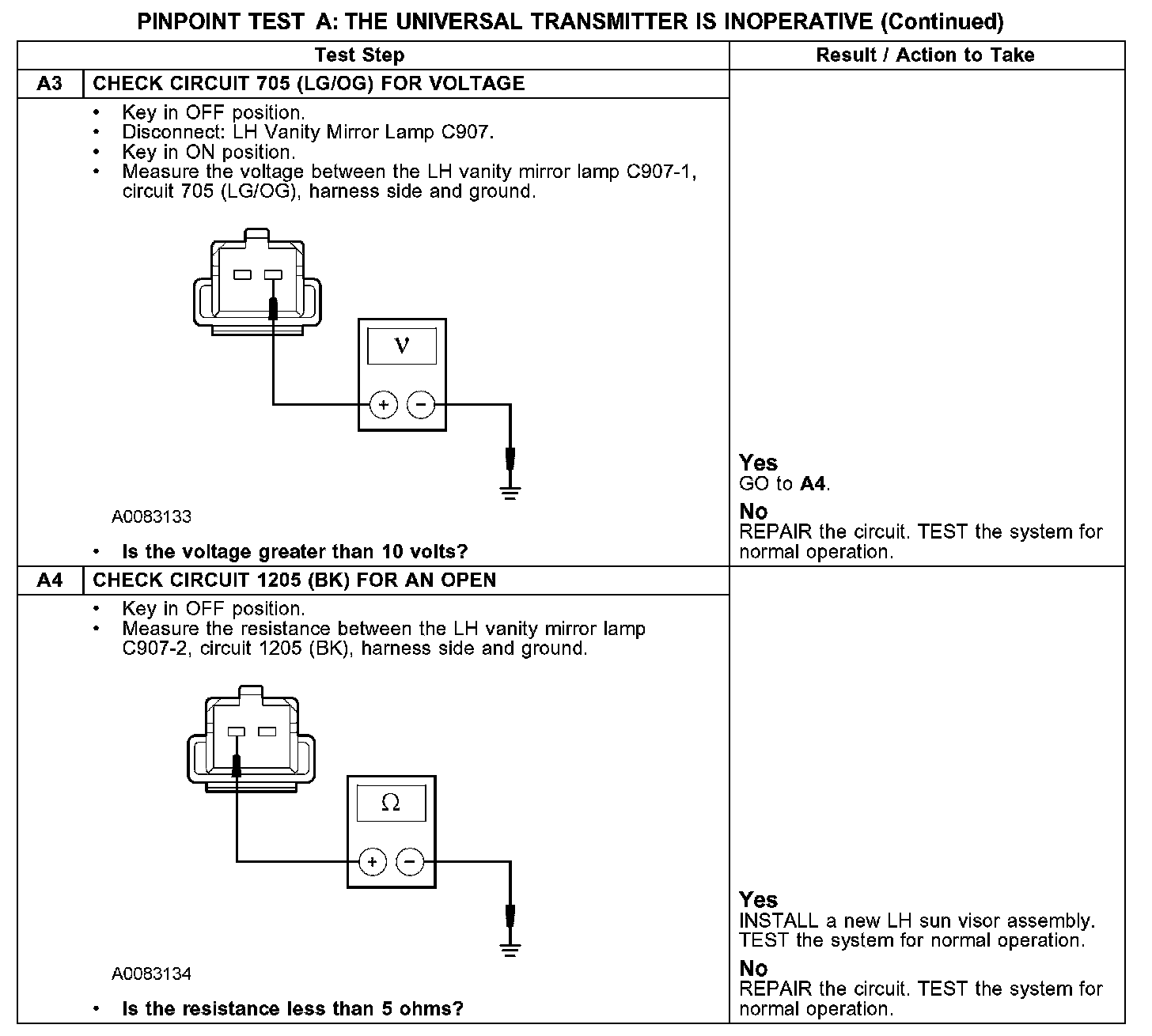

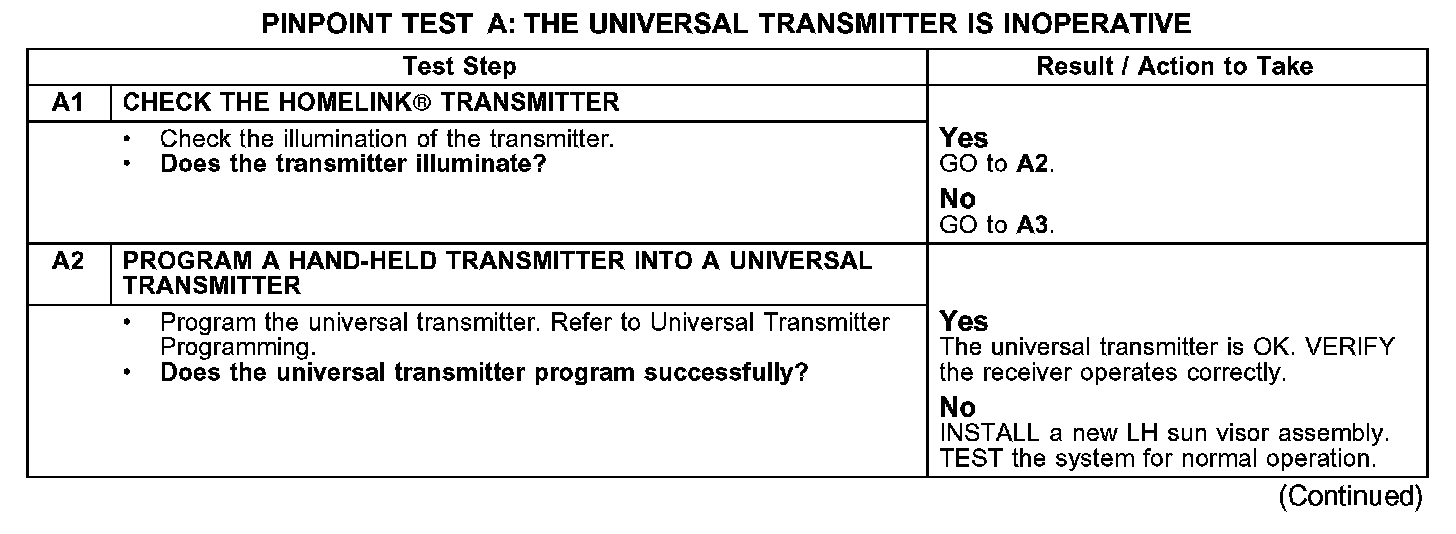

A1-A2:

A3-A4:

Normal Operation
The universal transmitter receives voltage on circuit 705 (LG/OG) and ground on circuit 1205 (BK).

Possible Causes
- circuit 705 (LG/OG) open or short to ground
- circuit 1205 (BK) open
- universal transmitter
