DVD Player: Service and Repair

DIGITAL VERSATILE DISC (DVD) PLAYER

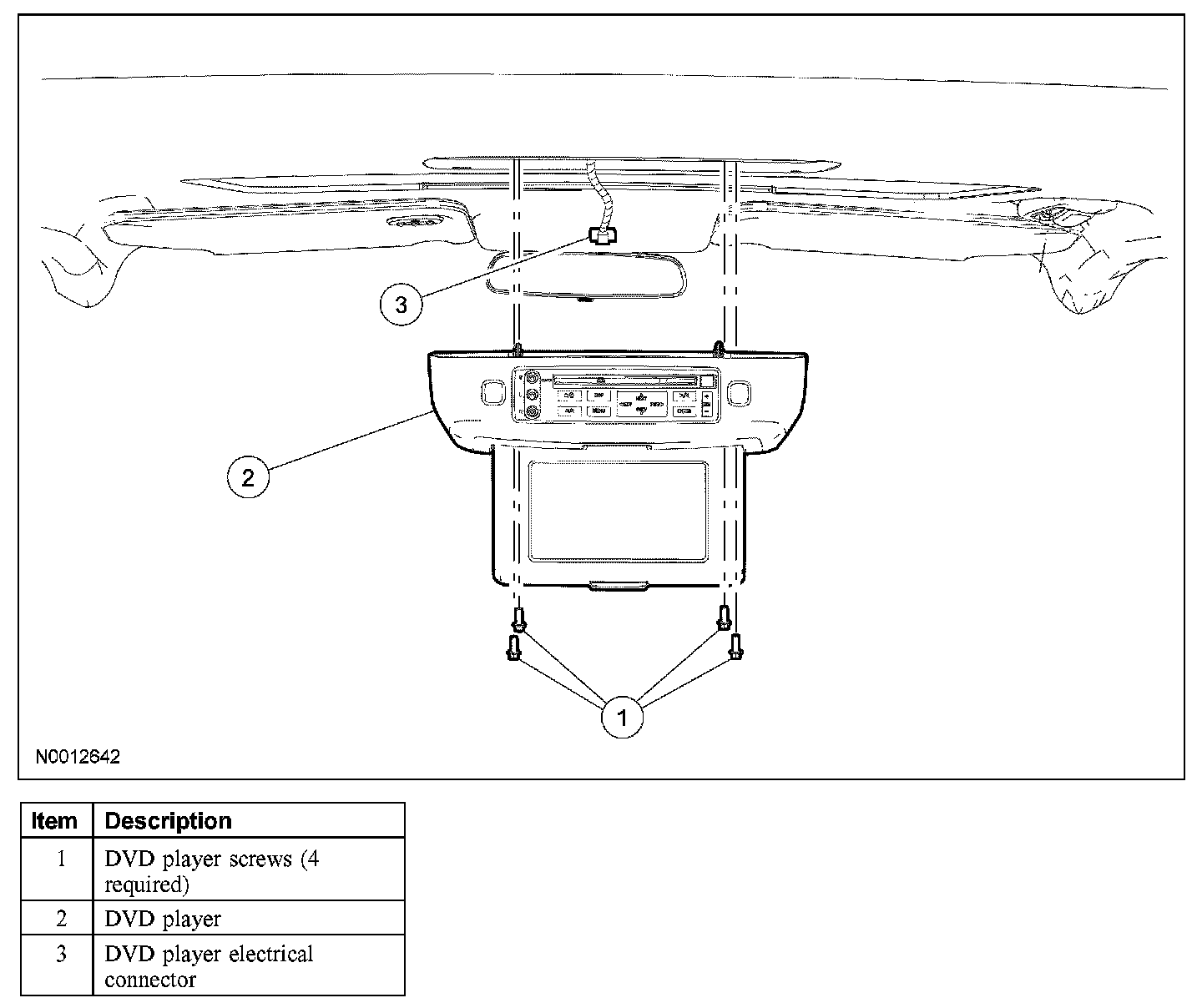

Removal and Installation

1. NOTE: Open the video display door to access the screws.

Remove the 4 DVD player screws.

2. NOTE: The DVD player assembly must be supported while disengaging the clips.

Pull down on the sides of the DVD player and disengage the clips from the bracket.
- Disconnect the electrical connector and remove the DVD player.

3. To install, reverse the removal procedure.
