Test C: DTCs C1700, C1703, C1706, C1709 Parking Aid Sensor Circuit Failure & B1299 Power Supply Sensor Circuit Short To Ground

PINPOINT TEST C: DTCs C1700, C1703, C1706, C1709 PARKING AID SENSOR CIRCUIT FAILURE AND B1299 POWER SUPPLY SENSOR CIRCUIT SHORT TO GROUND

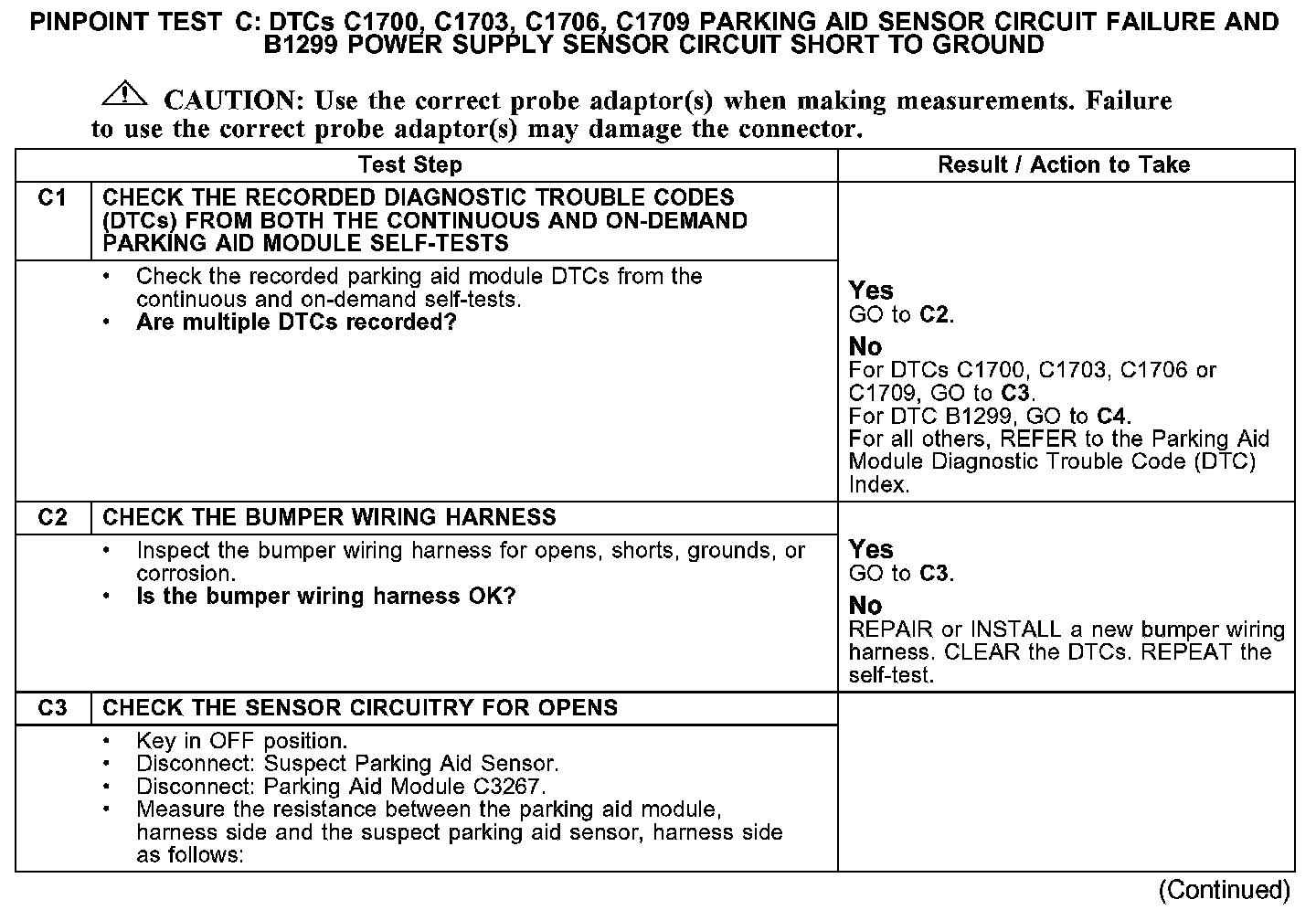

C1-C3:

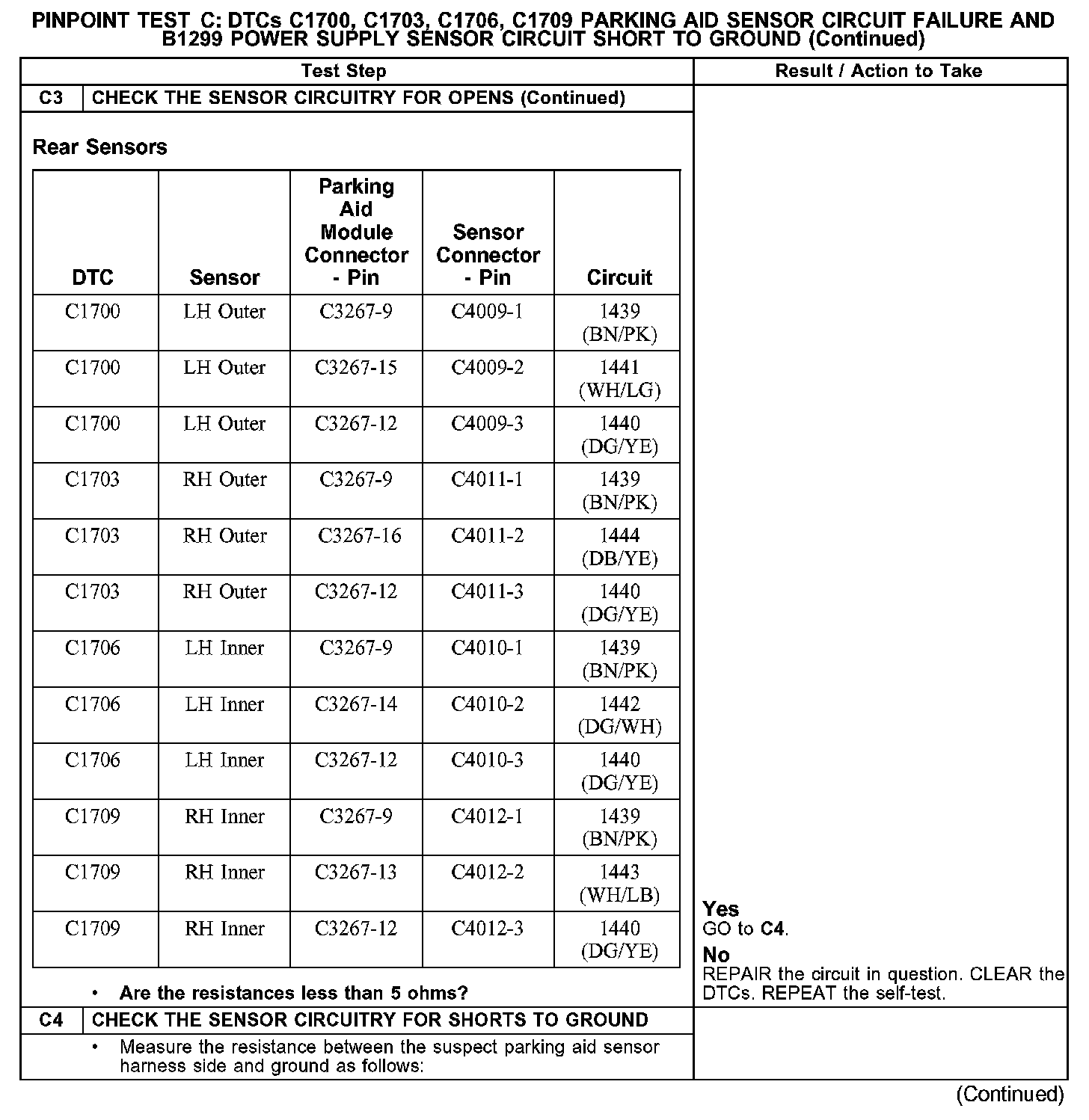

C3-C4:

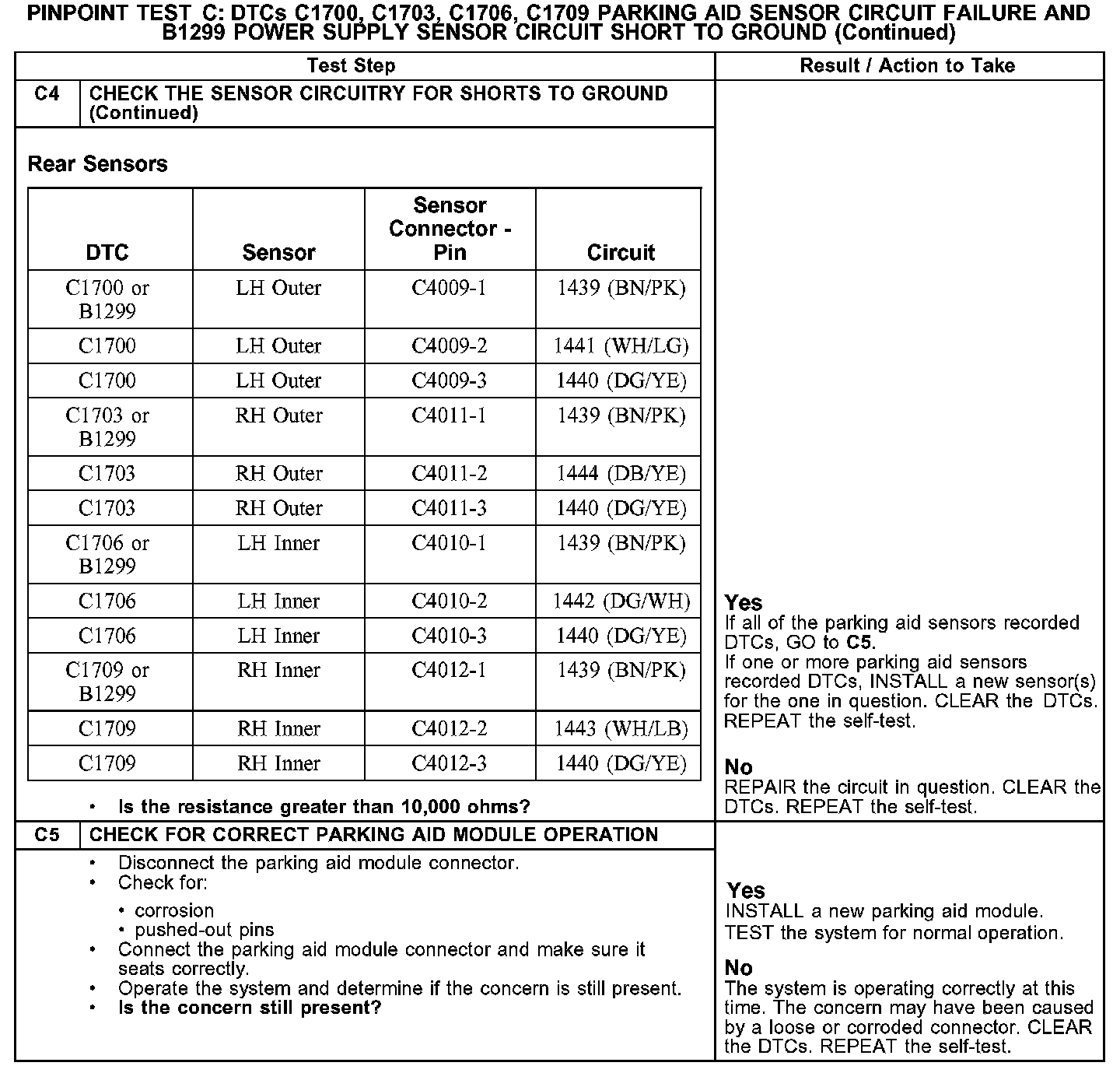

C4-C5:

Normal Operation
The parking aid module supplies voltage to the parking aid sensors on circuit 1439 (BN/PK). The parking aid module supplies ground to the parking aid sensors on circuit 1440 (DG/YE). The parking aid module receives a signal from the parking aid sensors on circuits 1444 (DB/YE), 1443 (WH/LB), 1442 (DG/WH) and 1441 (WH/LG).

Possible Causes
- circuit 1439 (BN/PK) open or short to ground
- circuit 1440 (DG/YE) open
- circuit 1441 (WH/LG) open or short to ground
- circuit 1442 (DG/WH) open or short to ground
- circuit 1443 (WH/LB) open or short to ground
- circuit 1444 (DB/YE) open or short to ground
- parking aid sensor(s)
- parking aid module
