Test B: The Alarm System Does Not Arm/Disarm

PINPOINT TEST B: THE ALARM SYSTEM DOES NOT ARM/DISARM

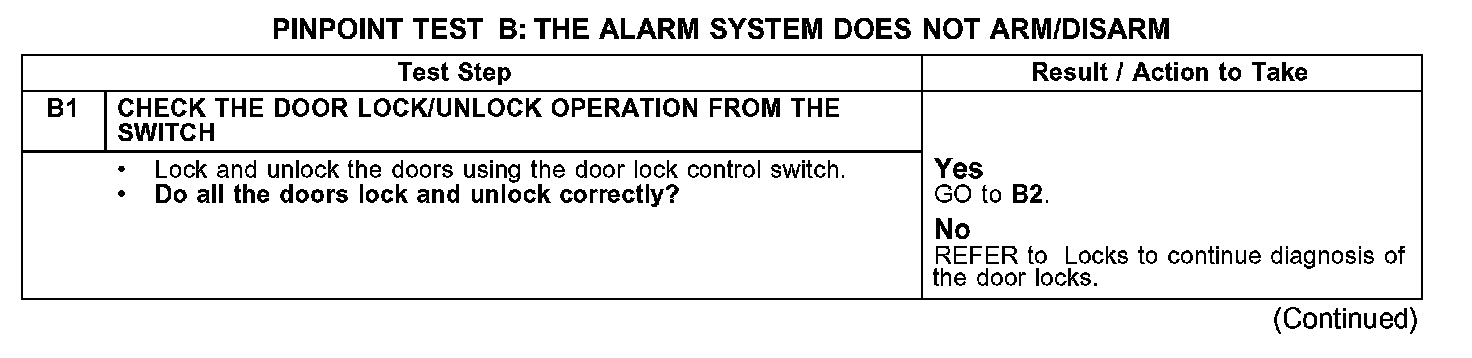

B1:

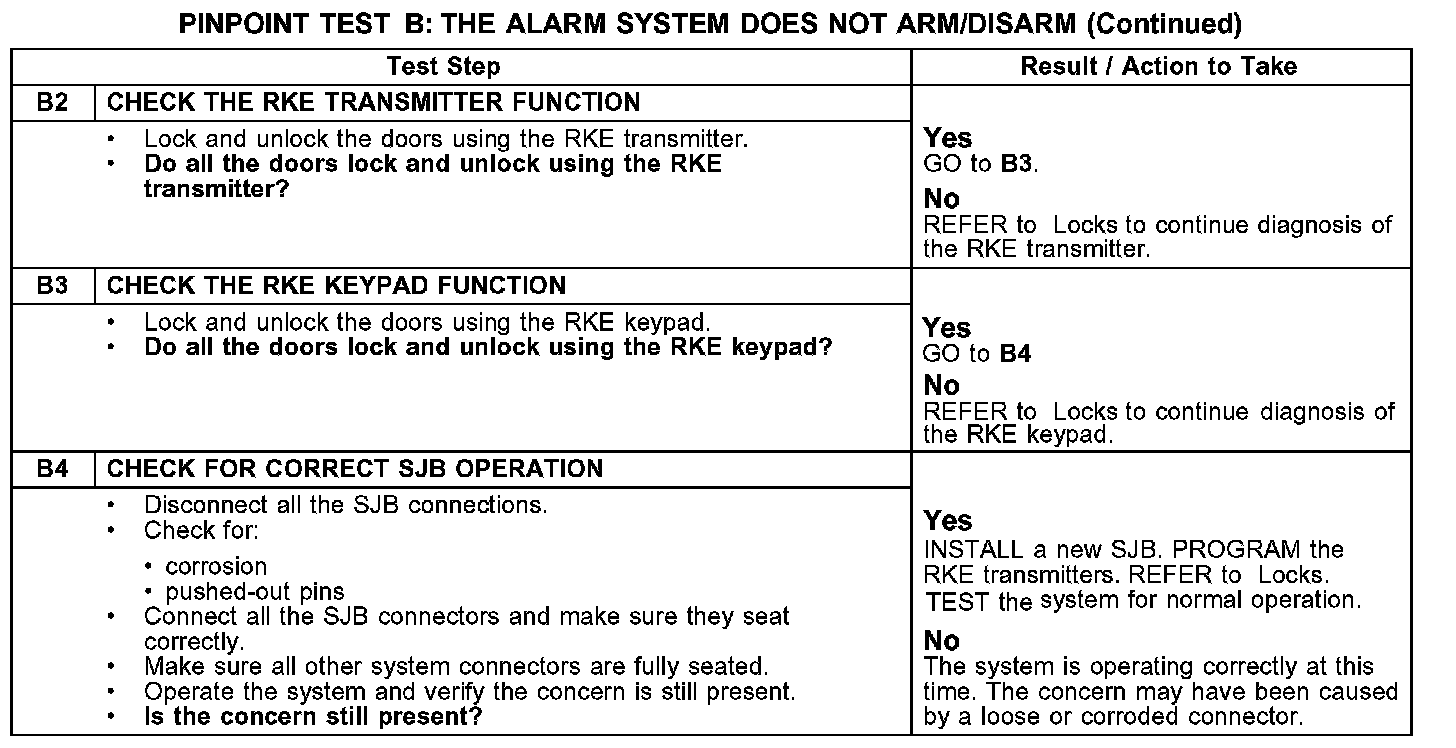

B2-B4:

Normal Operation
The smart junction box (SJB) arms the alarm when a lock signal is received from the remote keyless entry (RKE) transmitter, the RKE keypad, or the door lock control switch (with the door open). The SJB disarms the alarm when an unlock signal is received from the RKE transmitter or the RKE keypad.

Possible Causes
- RKE transmitter
- RKE keypad
- SJB
