Canister Purge Control Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER PURGE VALVE

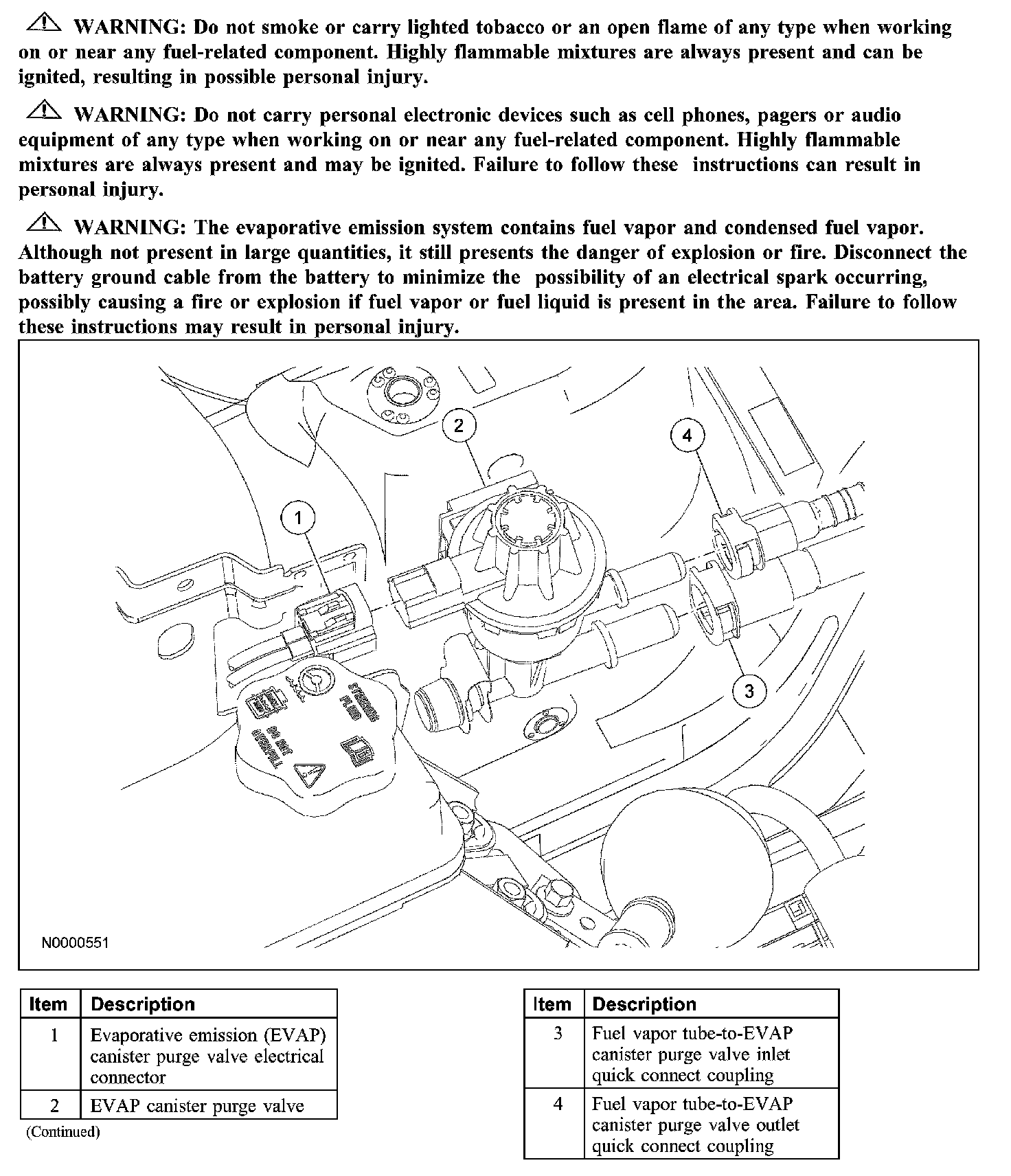

Exploded View







Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the evaporative emission (EVAP) canister purge valve electrical connector.
3. Disconnect the 2 fuel vapor tube-to-EVAP canister purge valve quick connect couplings.

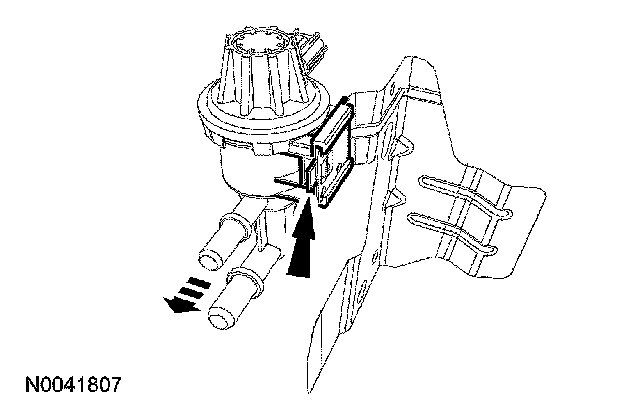

4. Depress the retaining tab to release and remove the purge valve from the retaining bracket.
5. To install, reverse the removal procedure.
- Leak test the system.
- Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
