Test C: The Compass Is Inaccurate

PINPOINT TEST C: THE COMPASS IS INACCURATE

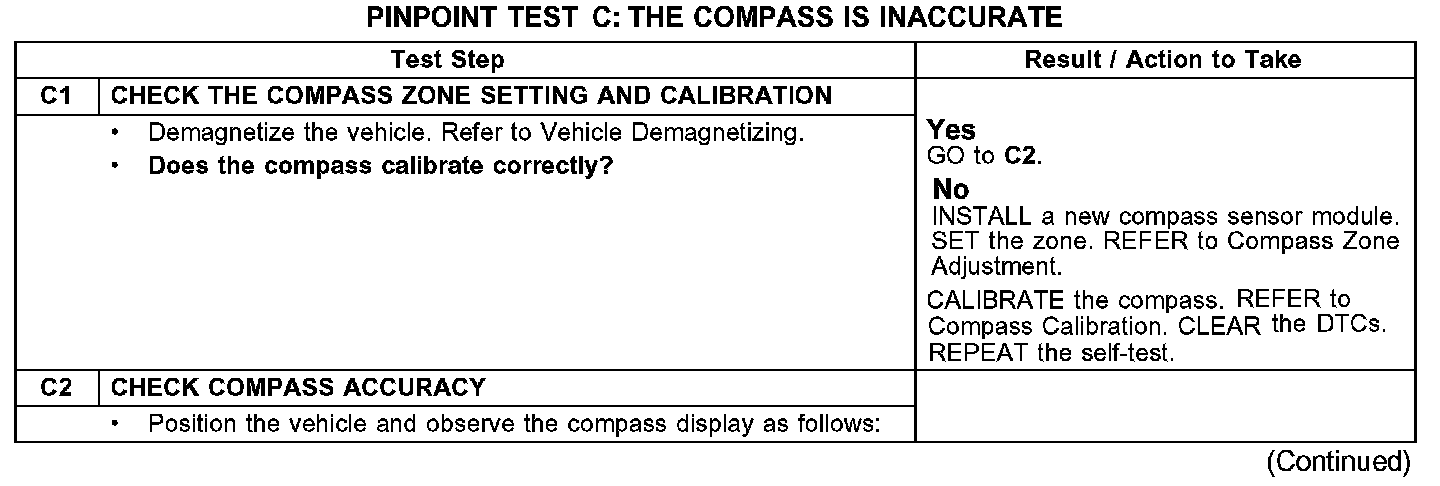

C1-C2:

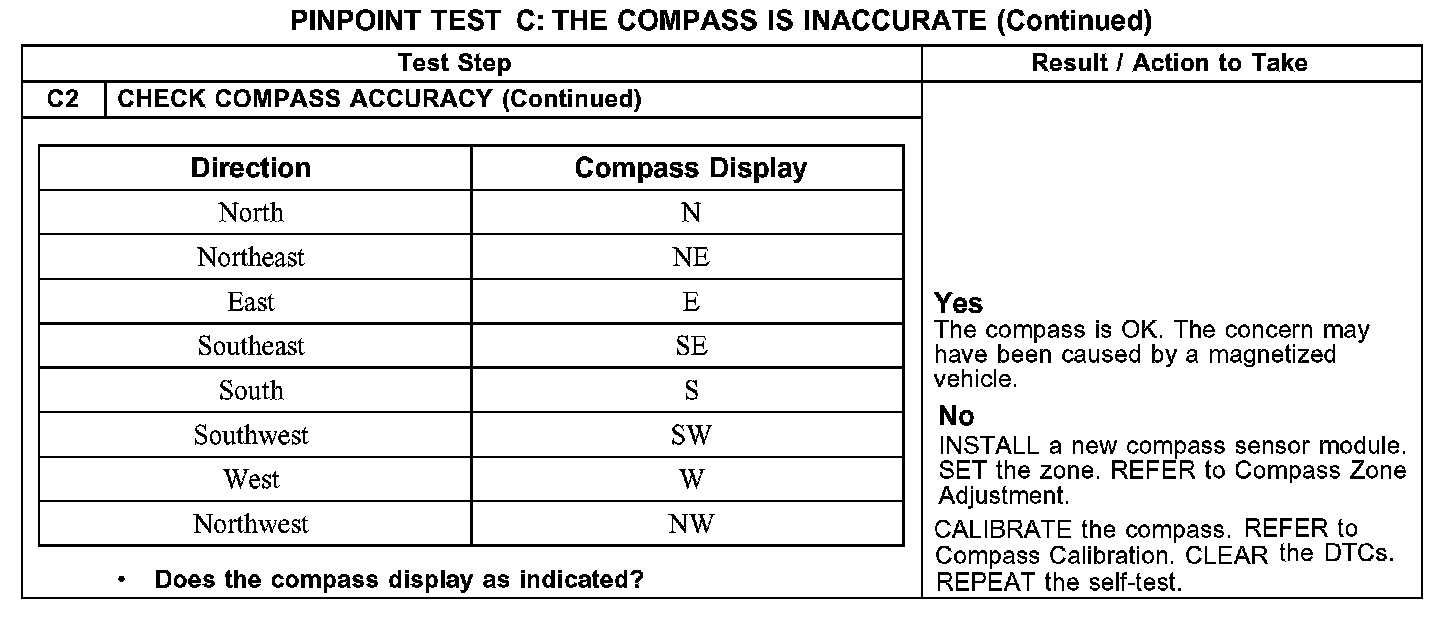

C2 Continued:

Normal Operation
The compass sensor module communicates the vehicle direction to the instrument cluster to be displayed in the message center.

Possible Causes
- vehicle is magnetized
- compass zone adjustment
- compass not calibrated
- compass sensor module
