Test C: The Roof Opening Panel Rattles

PINPOINT TEST C: THE ROOF OPENING PANEL RATTLES

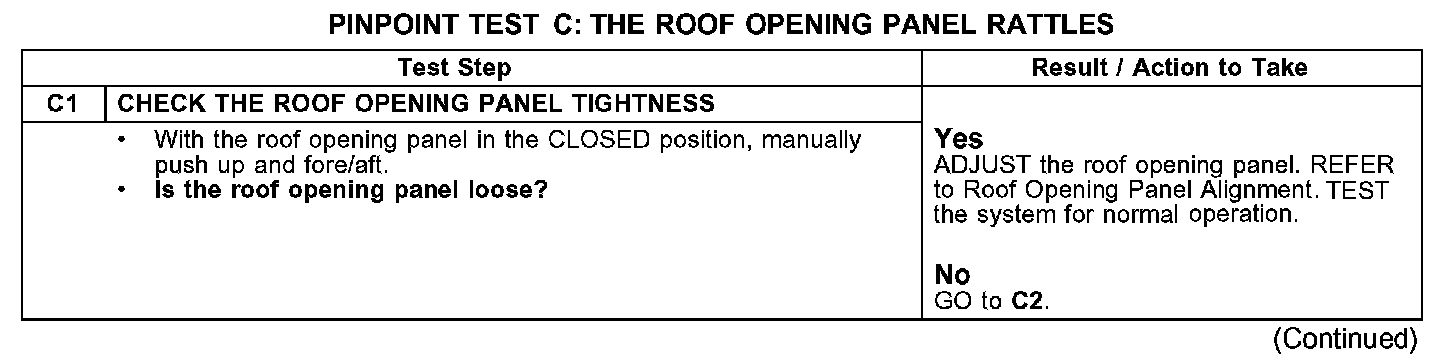

C1:

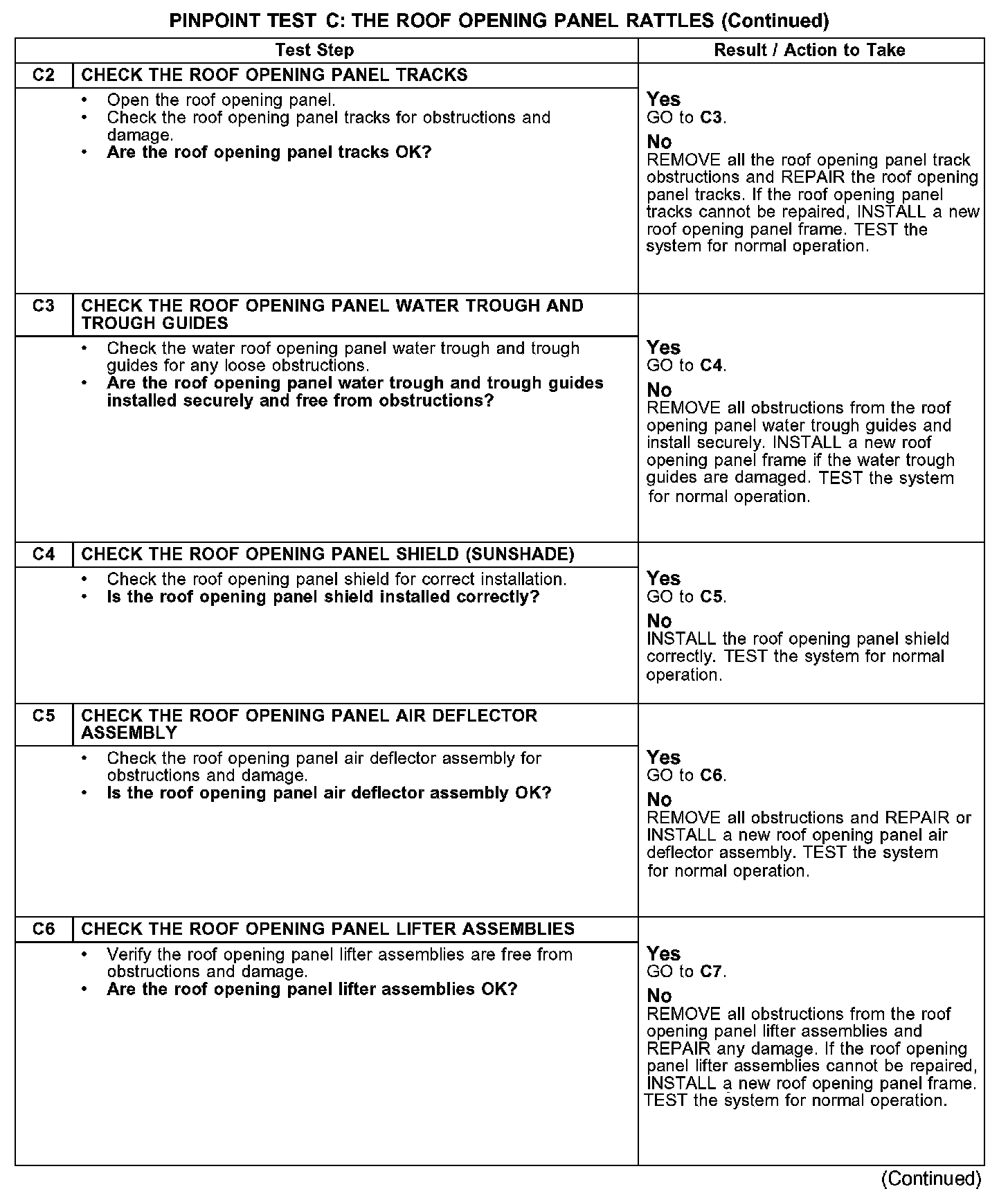

C2-C6:

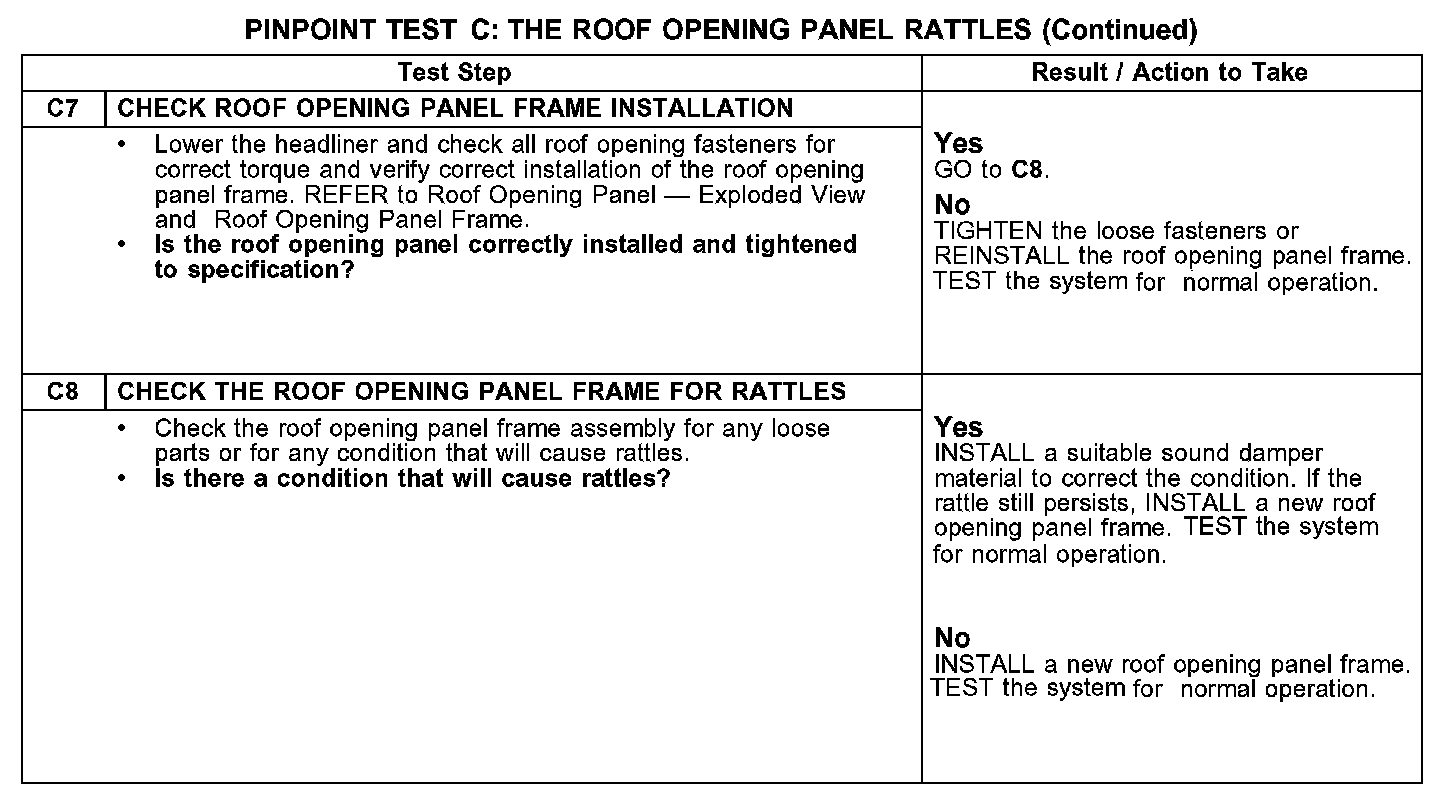

C7-C8:

Normal Operation
When the roof opening panel glass is completely closed, it should be within specifications. Refer to Specifications. All components should be secured correctly.

Possible Causes
Rattling noises from the roof opening panel can be caused by any of the following loosely or incorrectly installed components:
- Roof opening panel
- Roof opening panel air deflector assembly
- Roof opening panel water trough
- Roof opening panel lifter assemblies
- Headliner
- Roof opening panel motor/module pad
- Roof opening panel frame
