Rear Shelf: Service and Repair

PARCEL SHELF

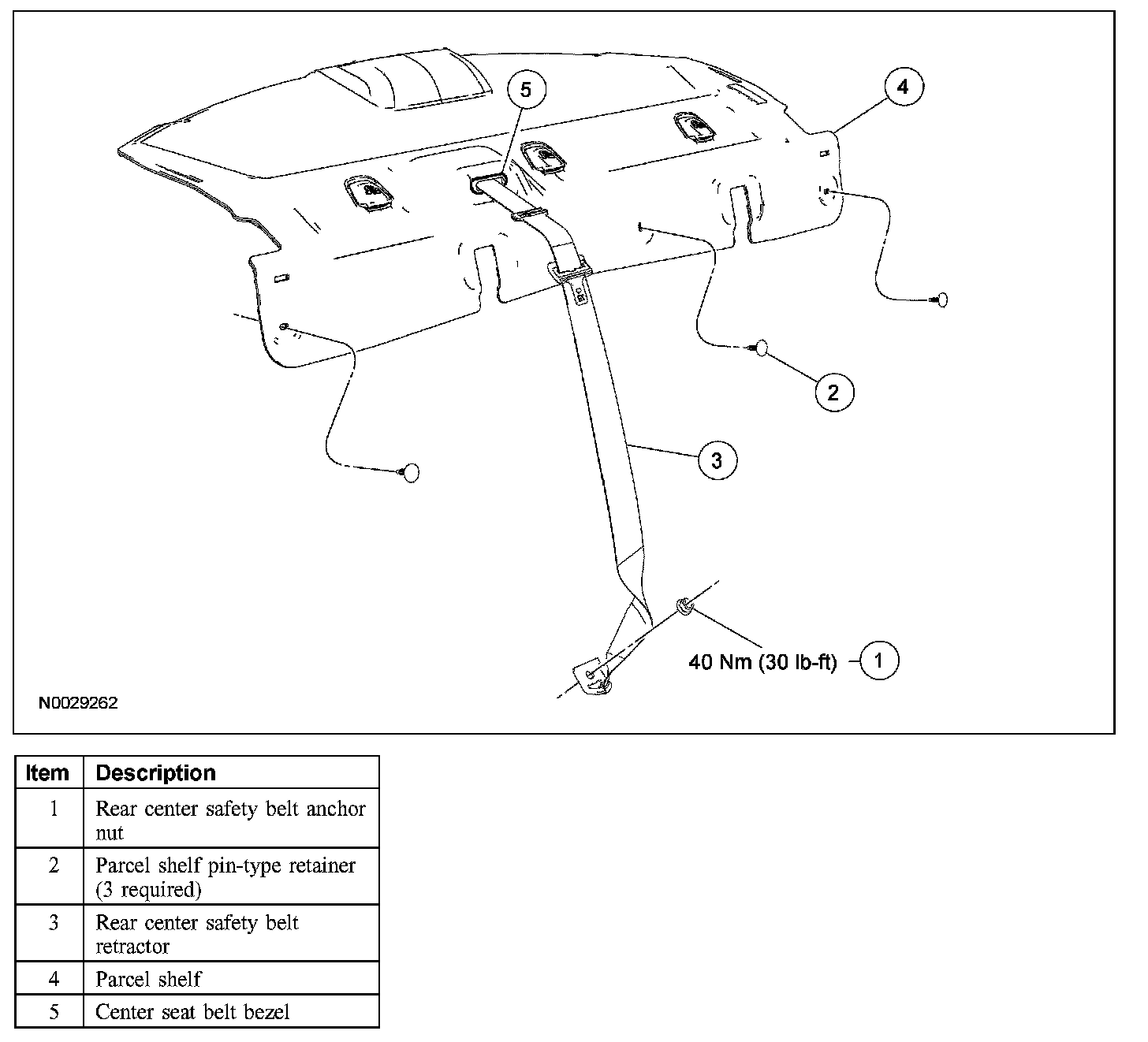

Removal and Installation
1. Remove the rear seat cushion.
2. Remove the rear seat bolsters.
3. Remove the C-pillar trim panel.
4. Remove the center seat belt bezel.
5. Remove the rear center safety belt anchor nut.
- To install, tighten to 40 Nm (30 lb-ft).

6. Disconnect the high-mounted stop lamp electrical connector.
7. Remove the 3 parcel tray pin-type retainers.
8. Pull the parcel tray toward the front of the vehicle to remove.
9. To install, reverse the removal procedure.
