Wiper Motor Linkage: Service and Repair

WIPER MOUNTING ARM AND PIVOT SHAFT

Removal and Installation
1. Remove the upper cowl panel grille.
2. Disconnect the windshield wiper motor electrical connector.

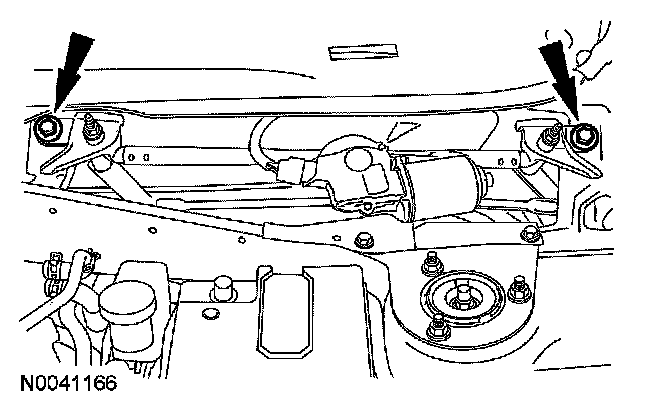

3. Remove the 2 windshield wiper mounting arm and pivot shaft assembly bolts and the windshield wiper mounting arm and pivot shaft assembly.
- To install, tighten to 5 Nm (44 lb-in).

4. To install, reverse the removal procedure.
