Transaxle Connector Layouts

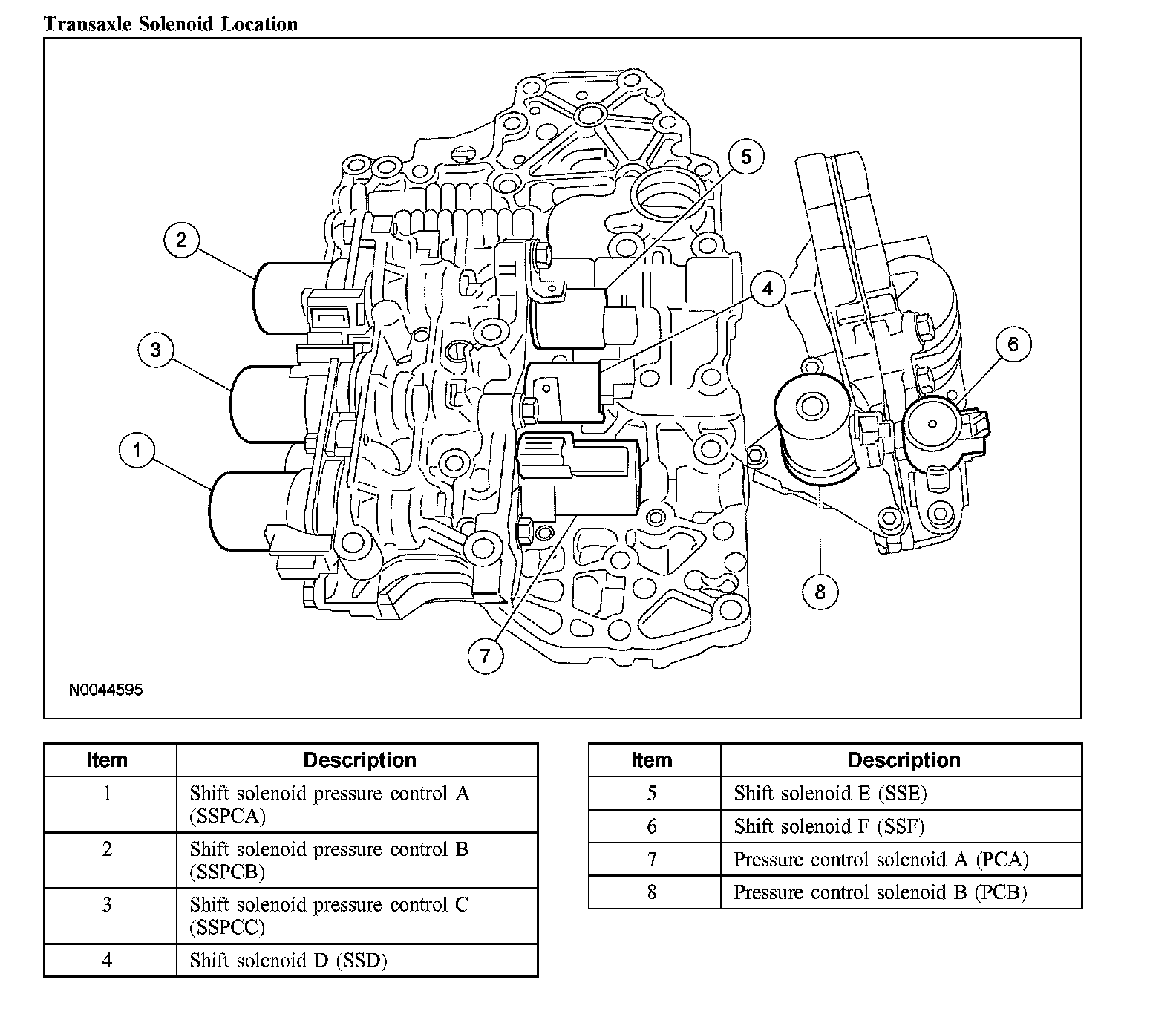

Transaxle Solenoid Location:

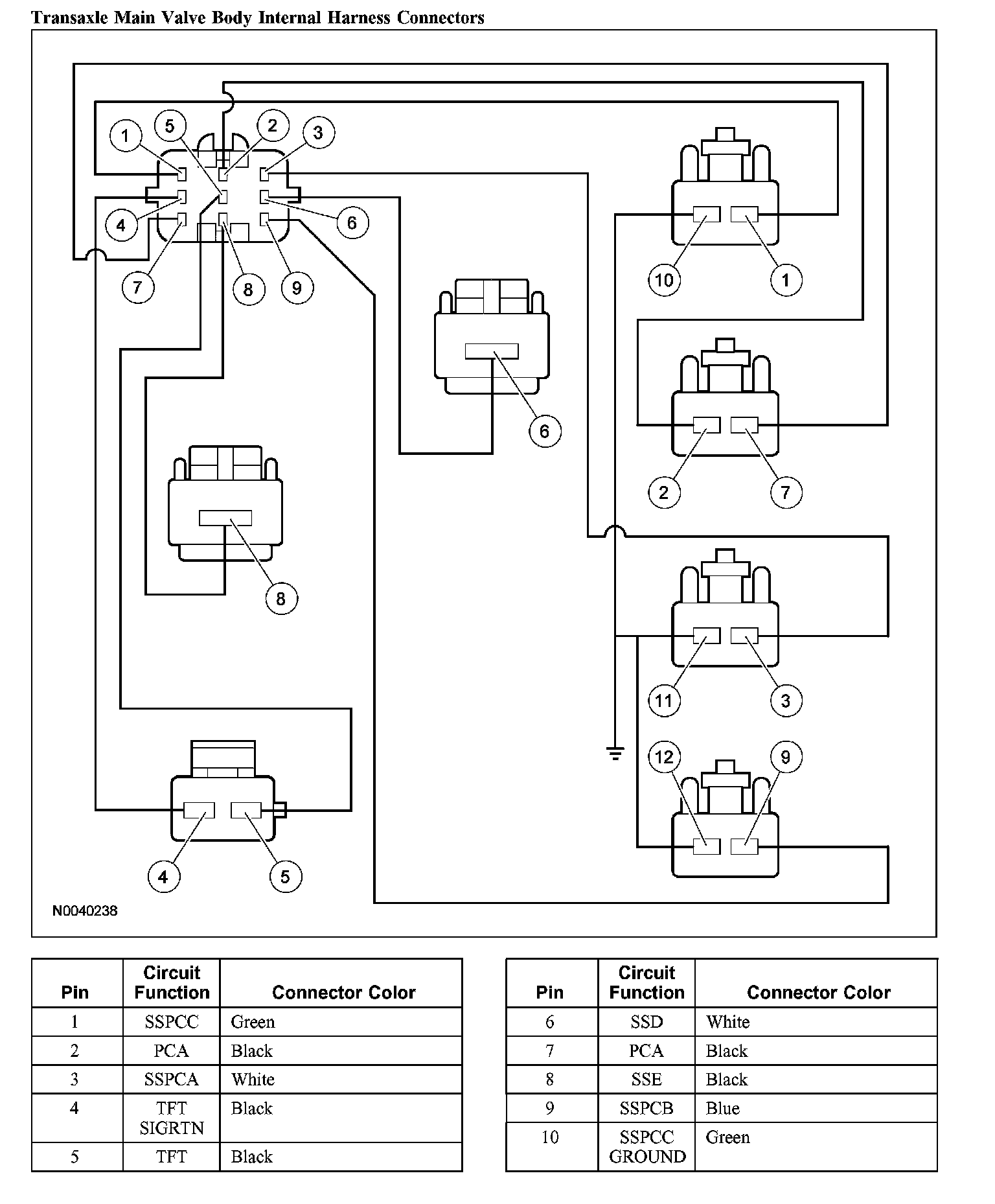

Transaxle Main Valve Body Internal Harness Connectors:

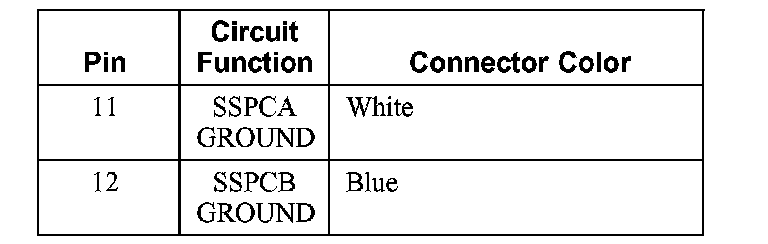

Transaxle Main Valve Body Internal Harness Connectors:

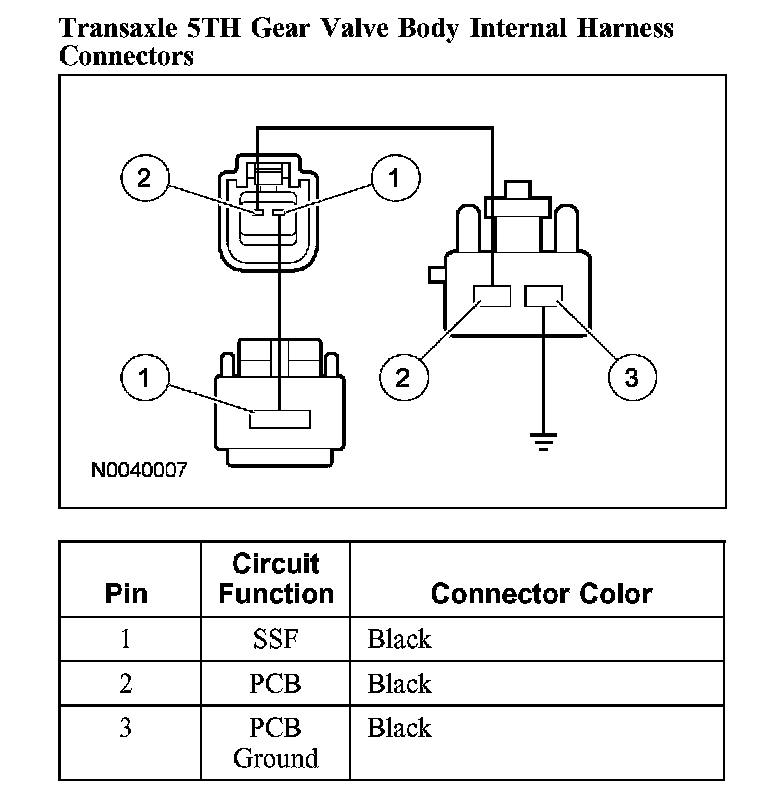

Transaxle 5TH Gear Valve Body Internal Harness Connectors:

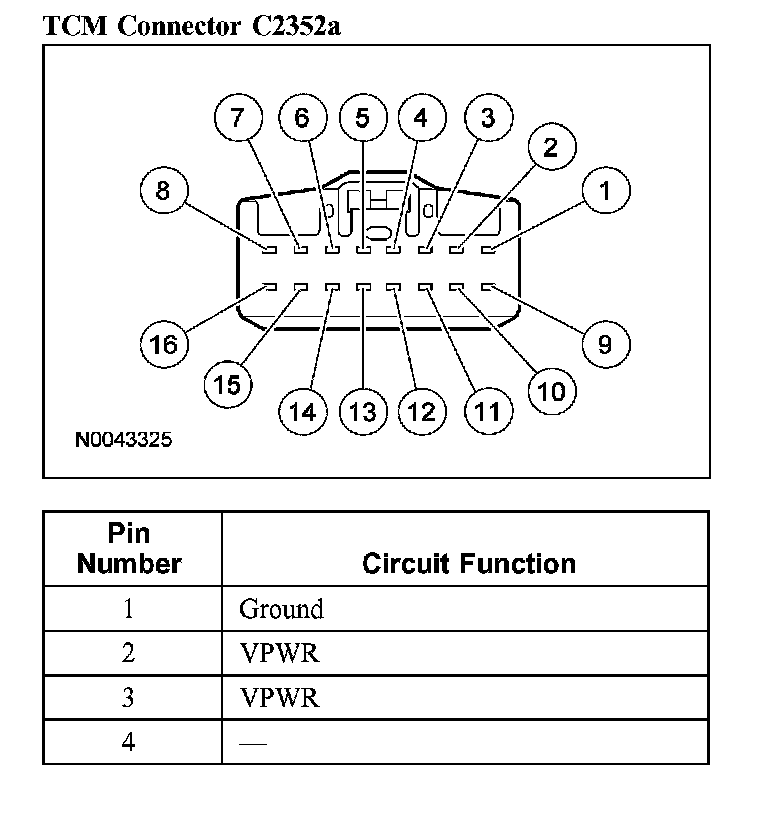

TCM Connector C2352a:

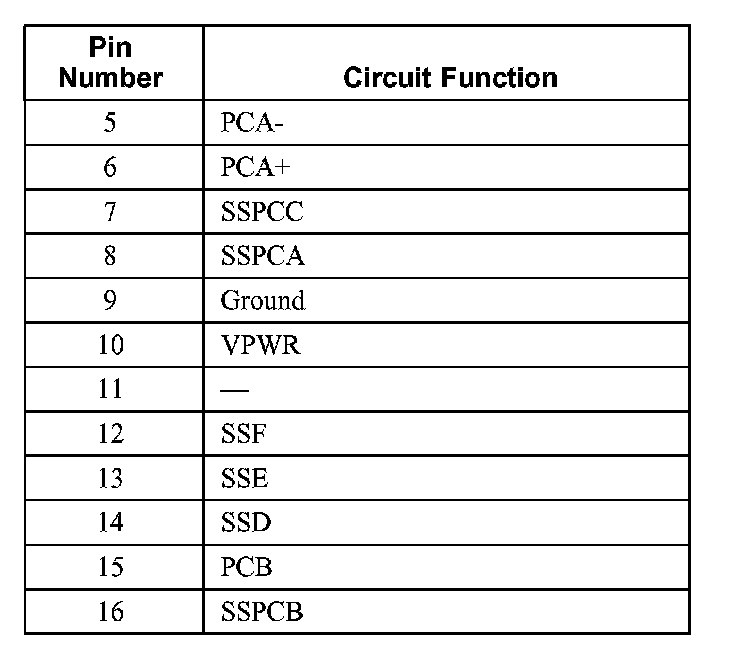

TCM Connector C2352a:

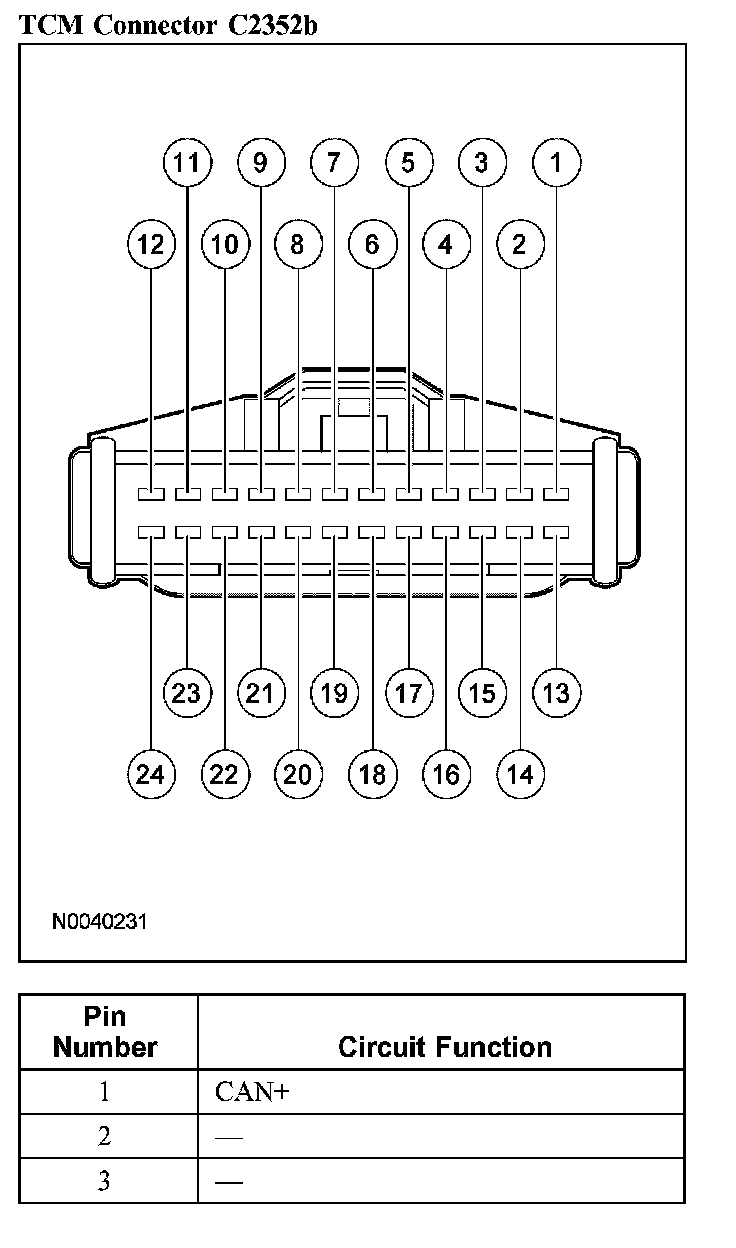

TCM Connector C2352b:

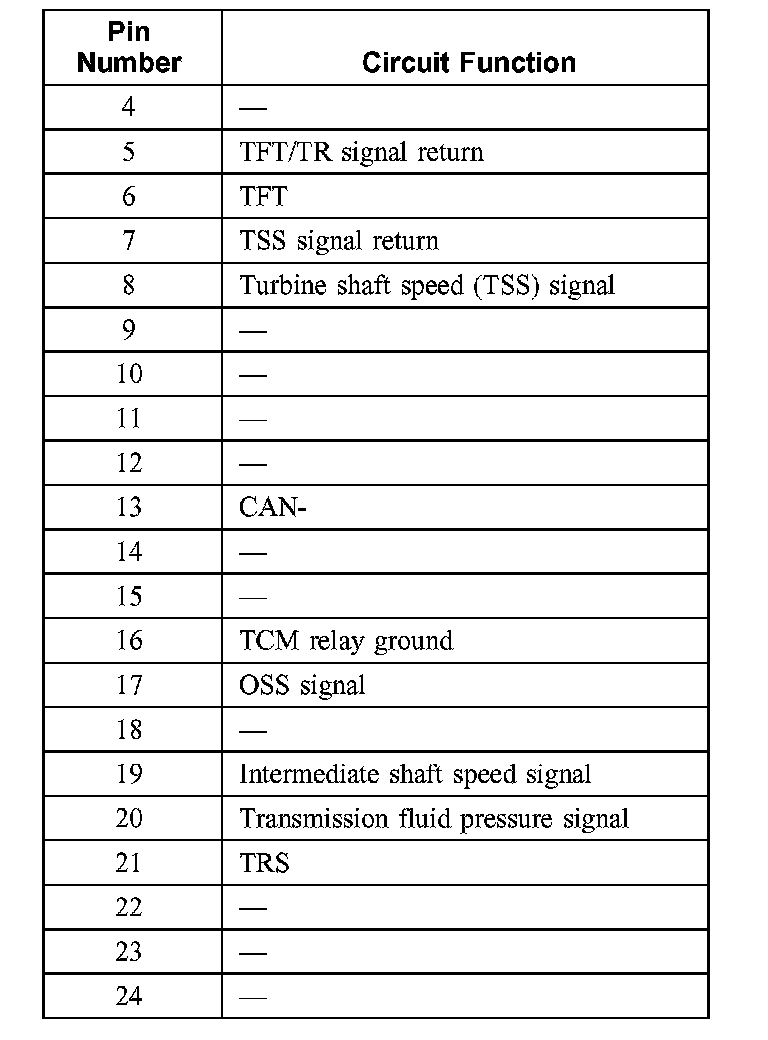

TCM Connector C2352b:

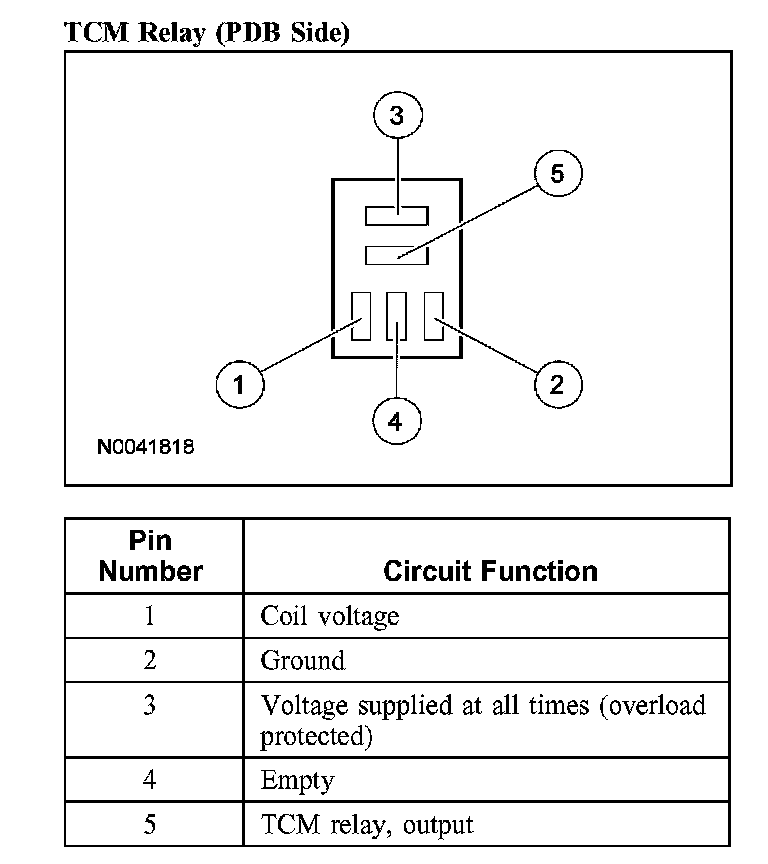

TCM Relay (PDB Side):

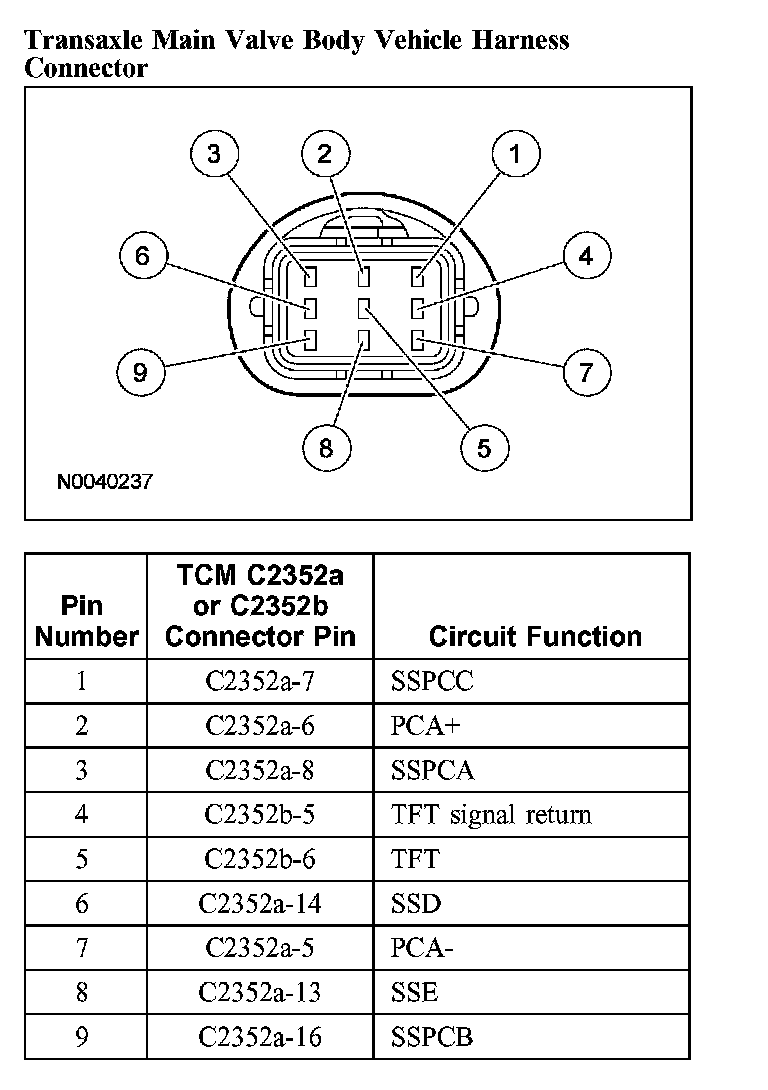

Transaxle Main Valve Body Vehicle Harness Connector:

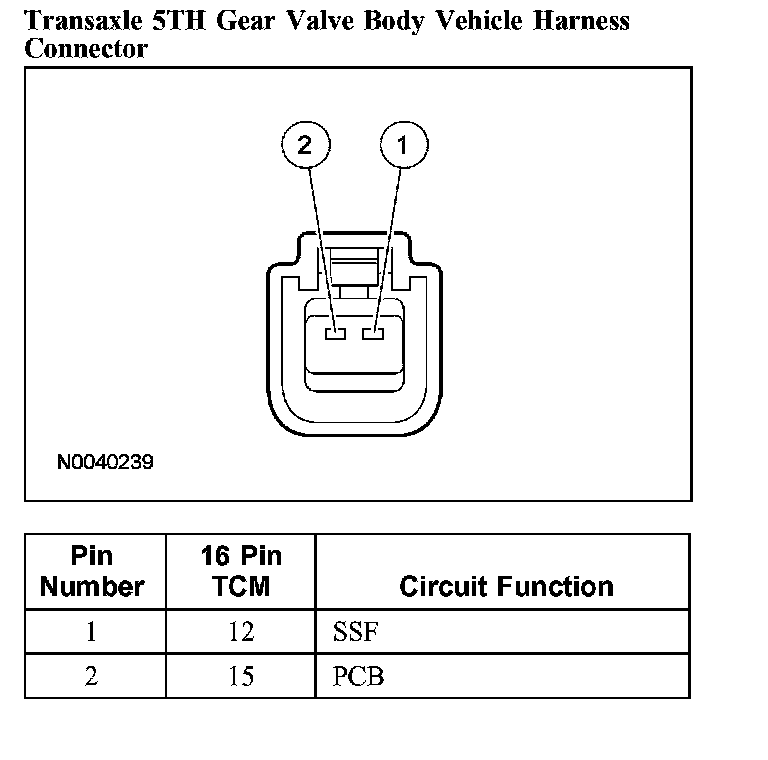

Transaxle 5TH Gear Valve Body Vehicle Harness Connector:

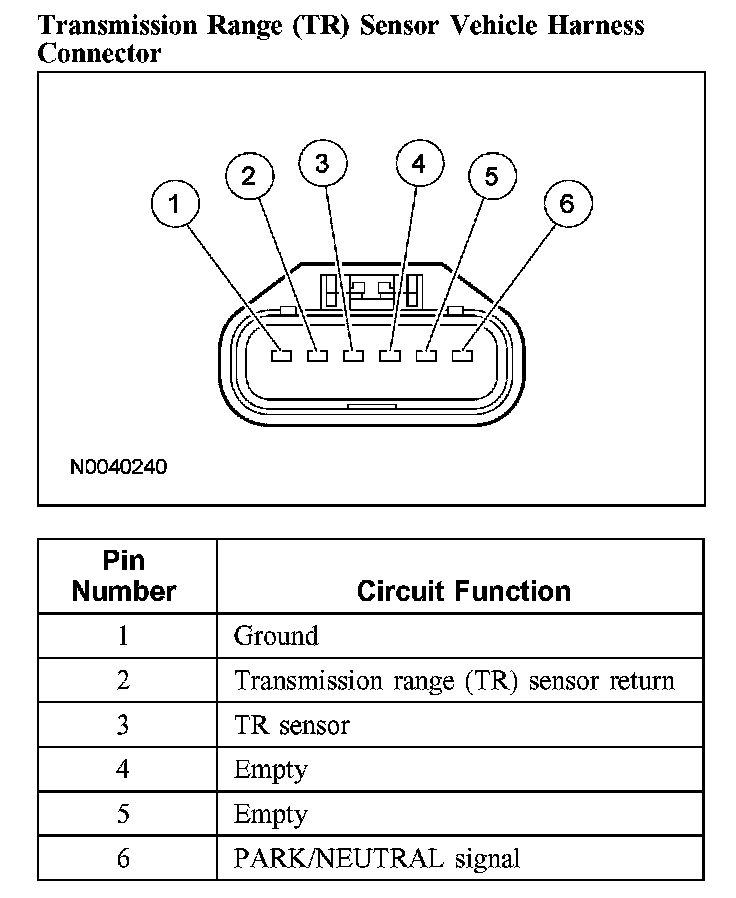

Transmission Range (TR) Sensor Vehicle Harness Connector:

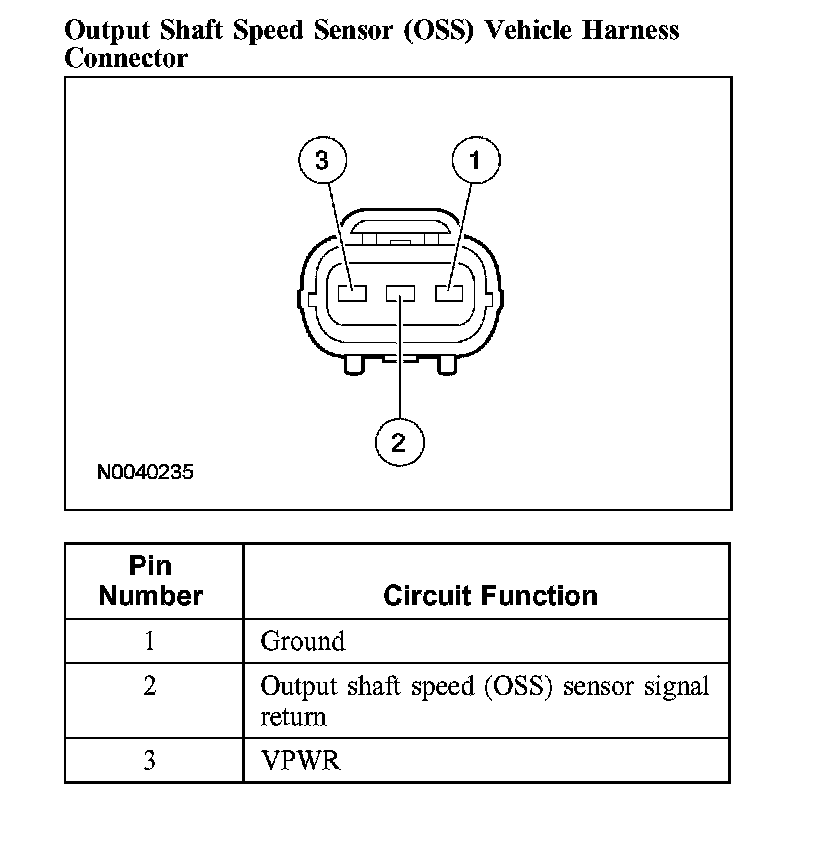

Output Shaft Speed Sensor (OSS) Vehicle Harness Connector:

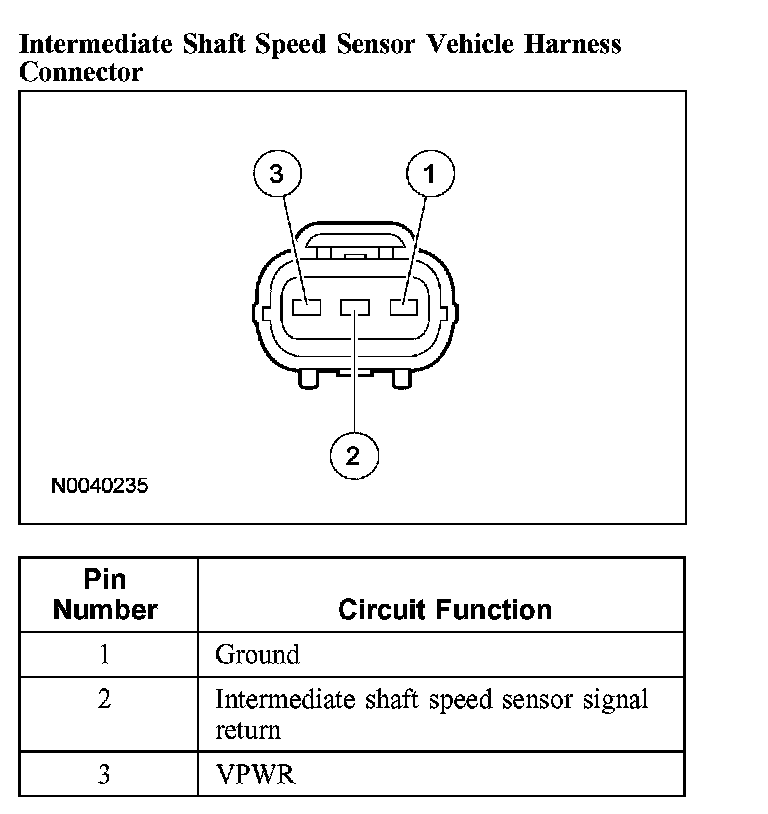

Intermediate Shaft Speed Sensor Vehicle Harness Connector:

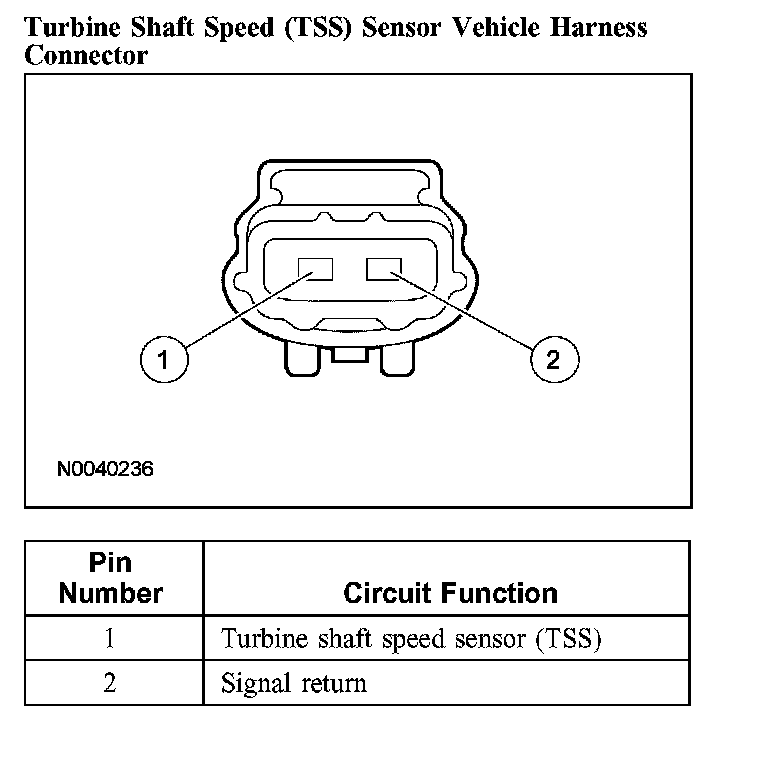

Turbine Shaft Speed (TSS) Sensor Vehicle Harness Connector:

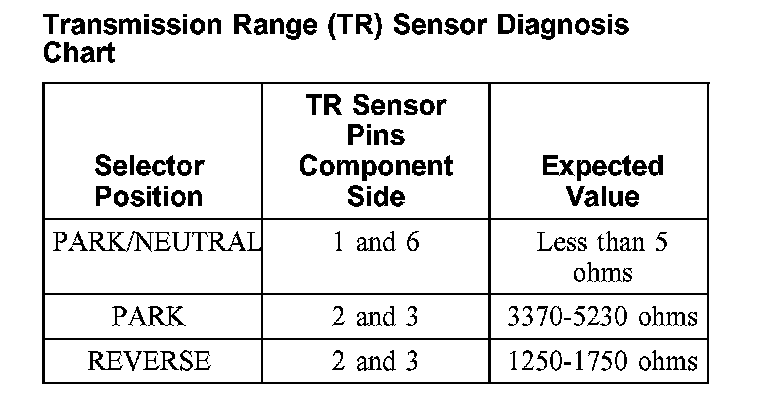

Transmission Range (TR) Sensor Diagnosis Chart (Part 1):

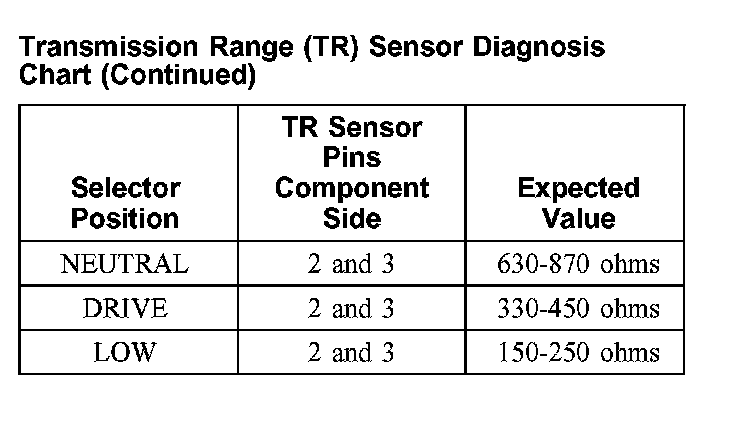

Transmission Range (TR) Sensor Diagnosis Chart (Part 2):
