Transmission Connector Layouts
Transmission Connector Layouts
Electrical Connectors

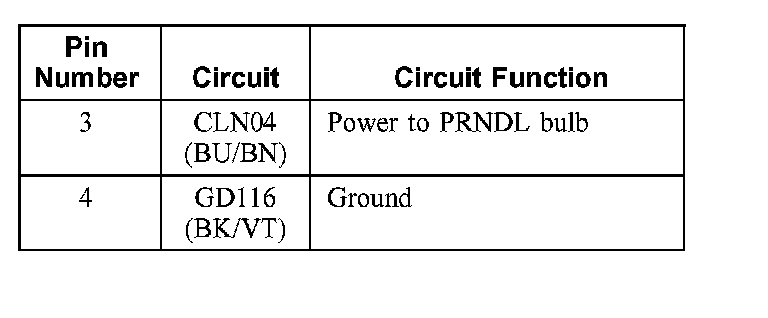

Floor Shifter Harness Connector C3245:
Floor Shifter Harness Connector C3245:

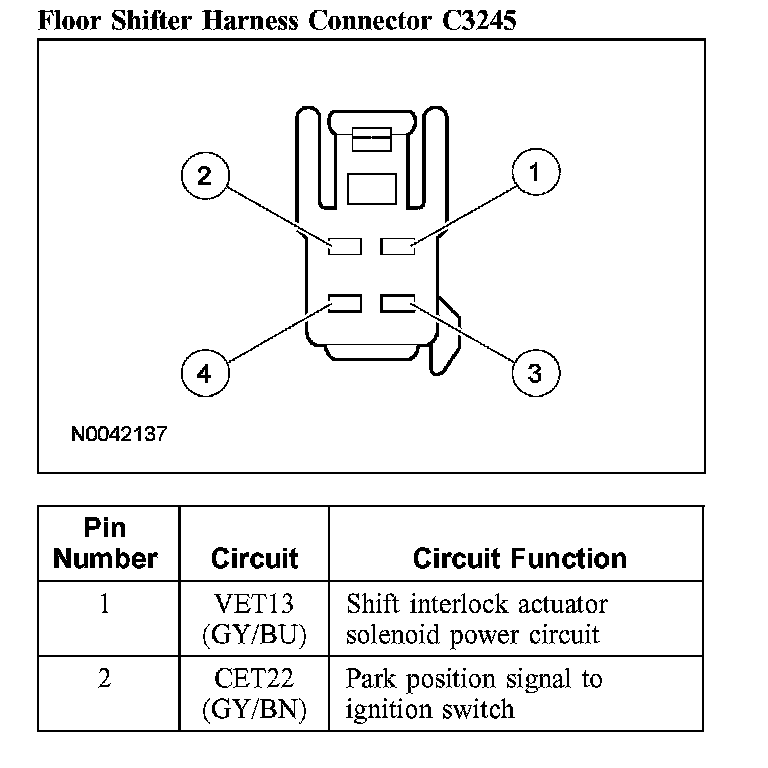

Floor Shifter Harness Connector C3245
