Test I: Transaxle Control Module (TCM)
Test I: Transaxle Control Module (TCM)
PINPOINT TEST I: TRANSAXLE CONTROL MODULE (TCM)

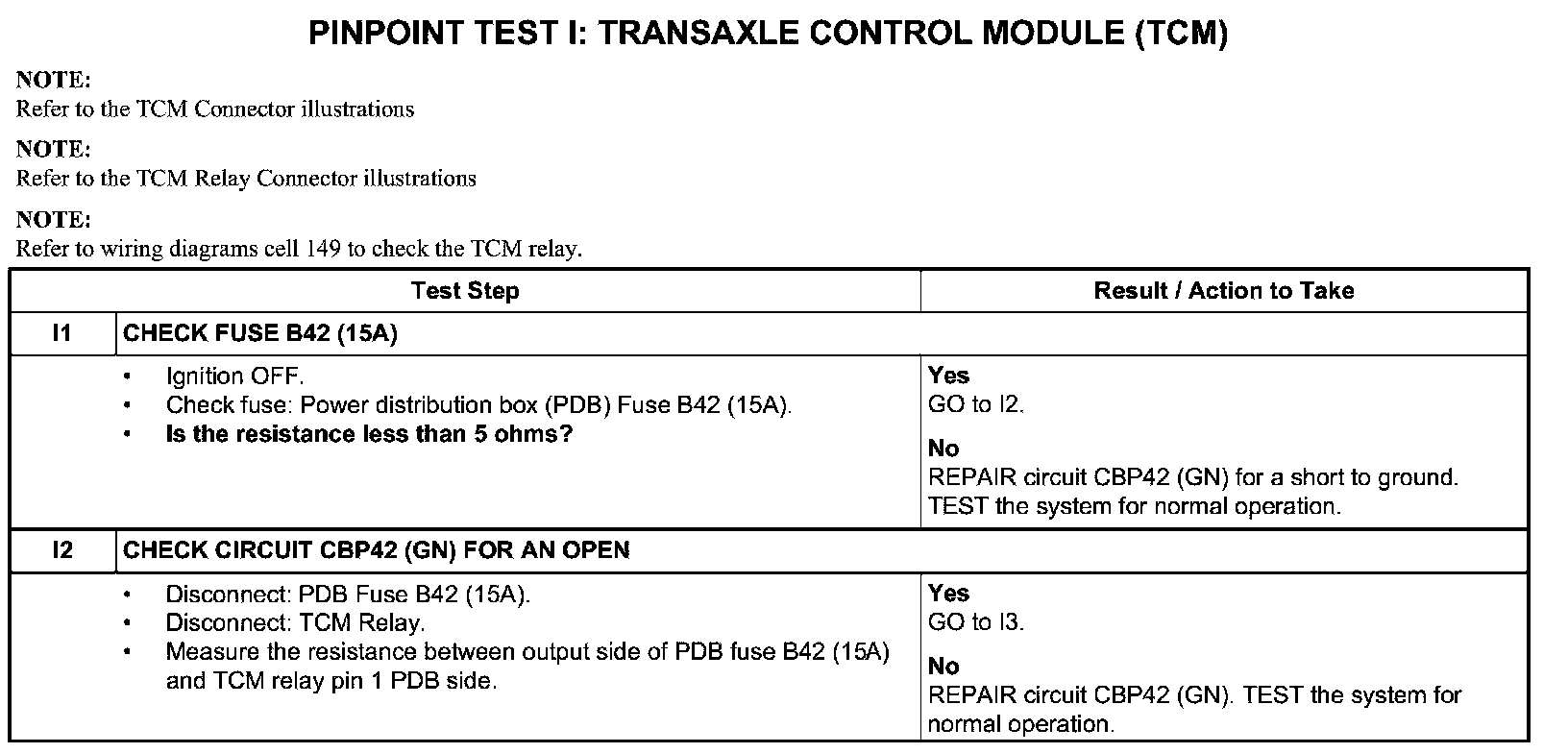

I1-I2:

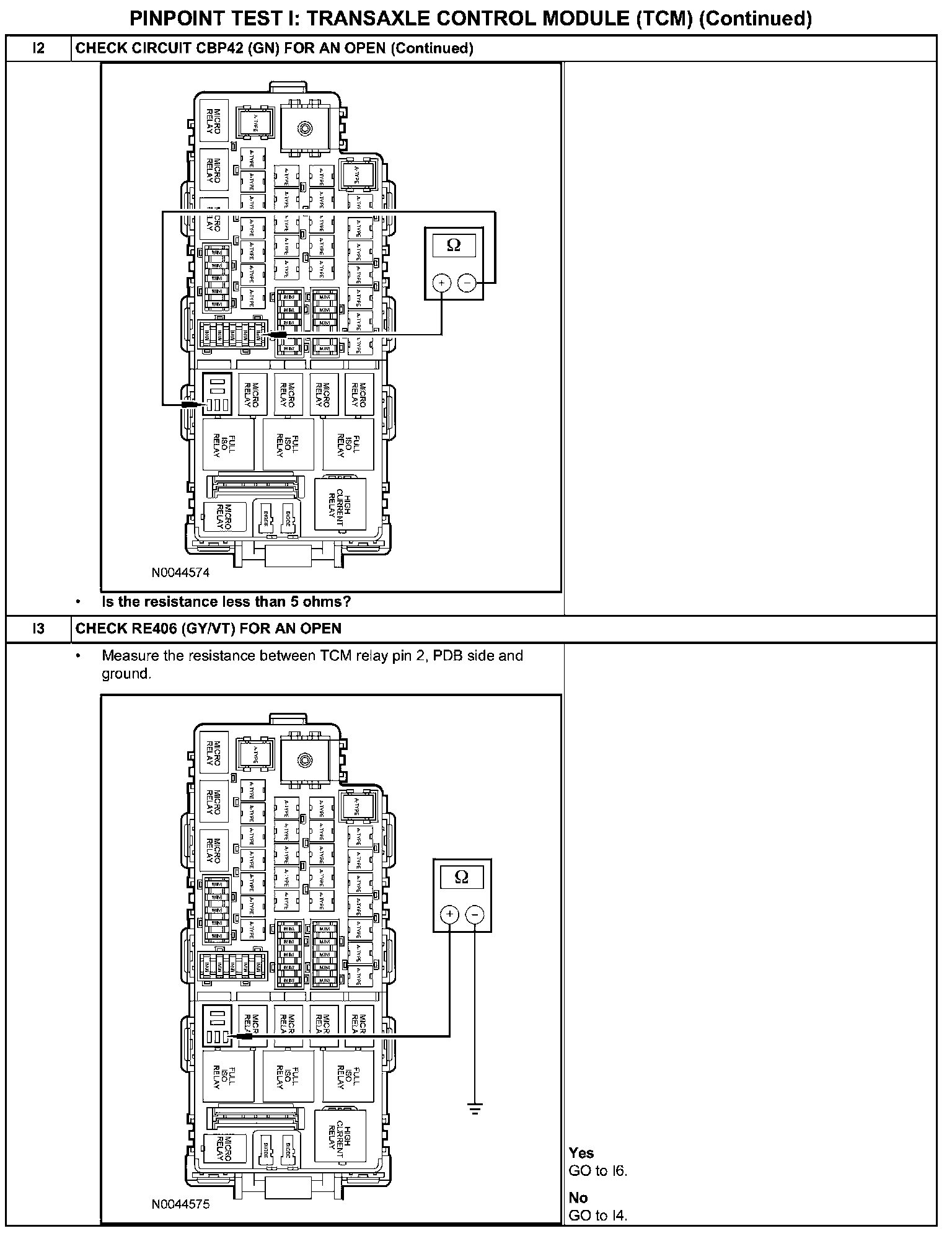

I2-I3:

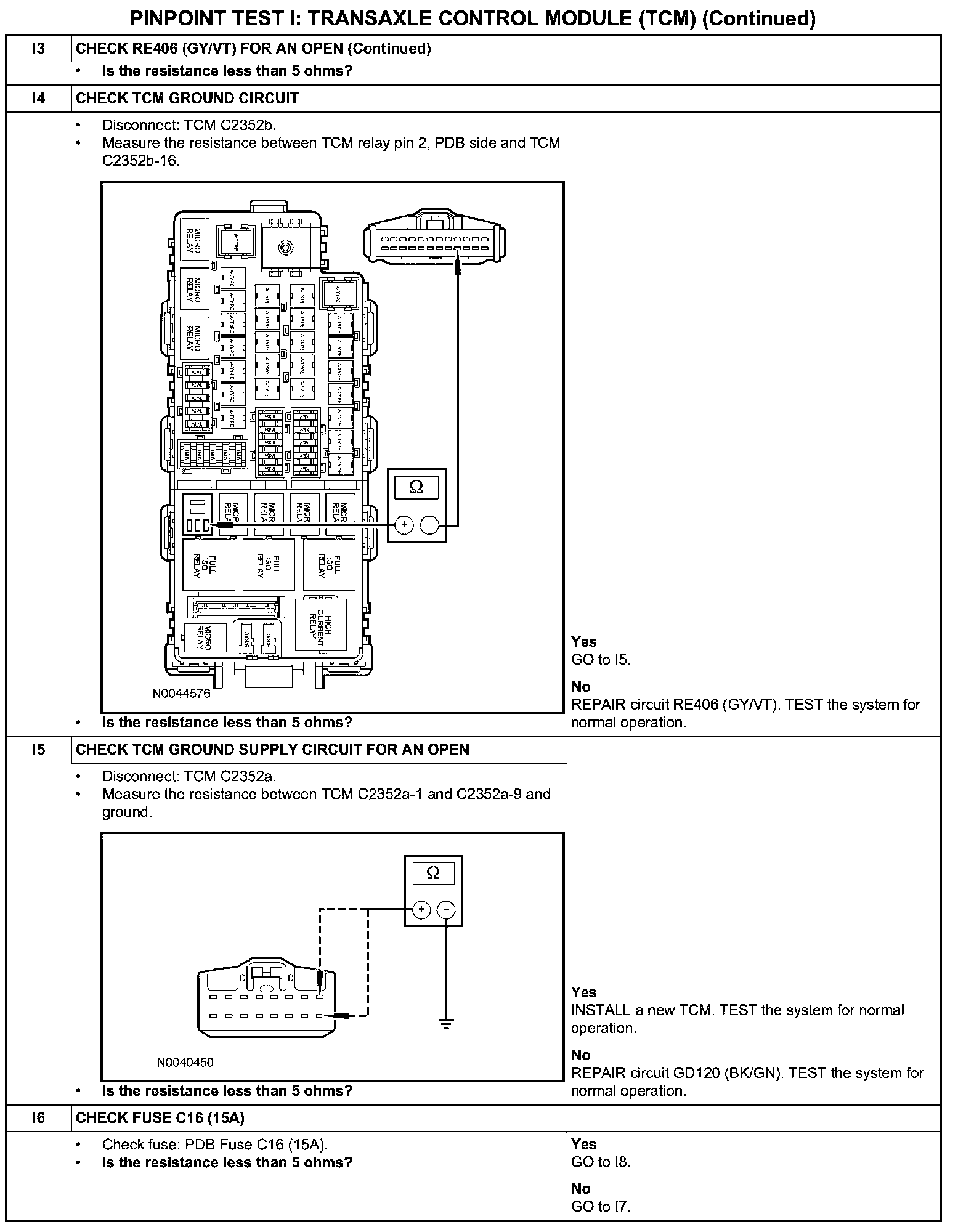

I3-I6:

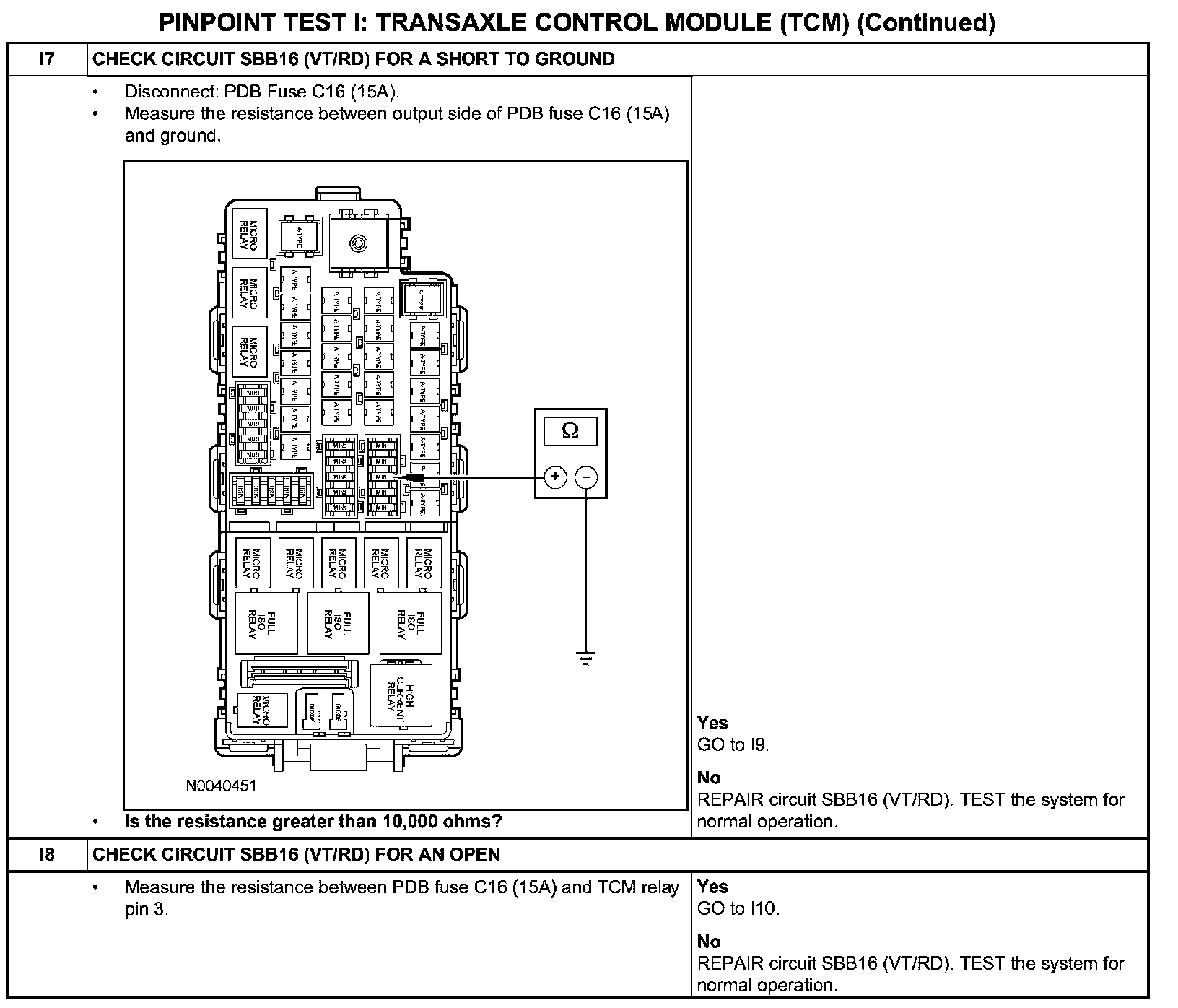

I7-I8:

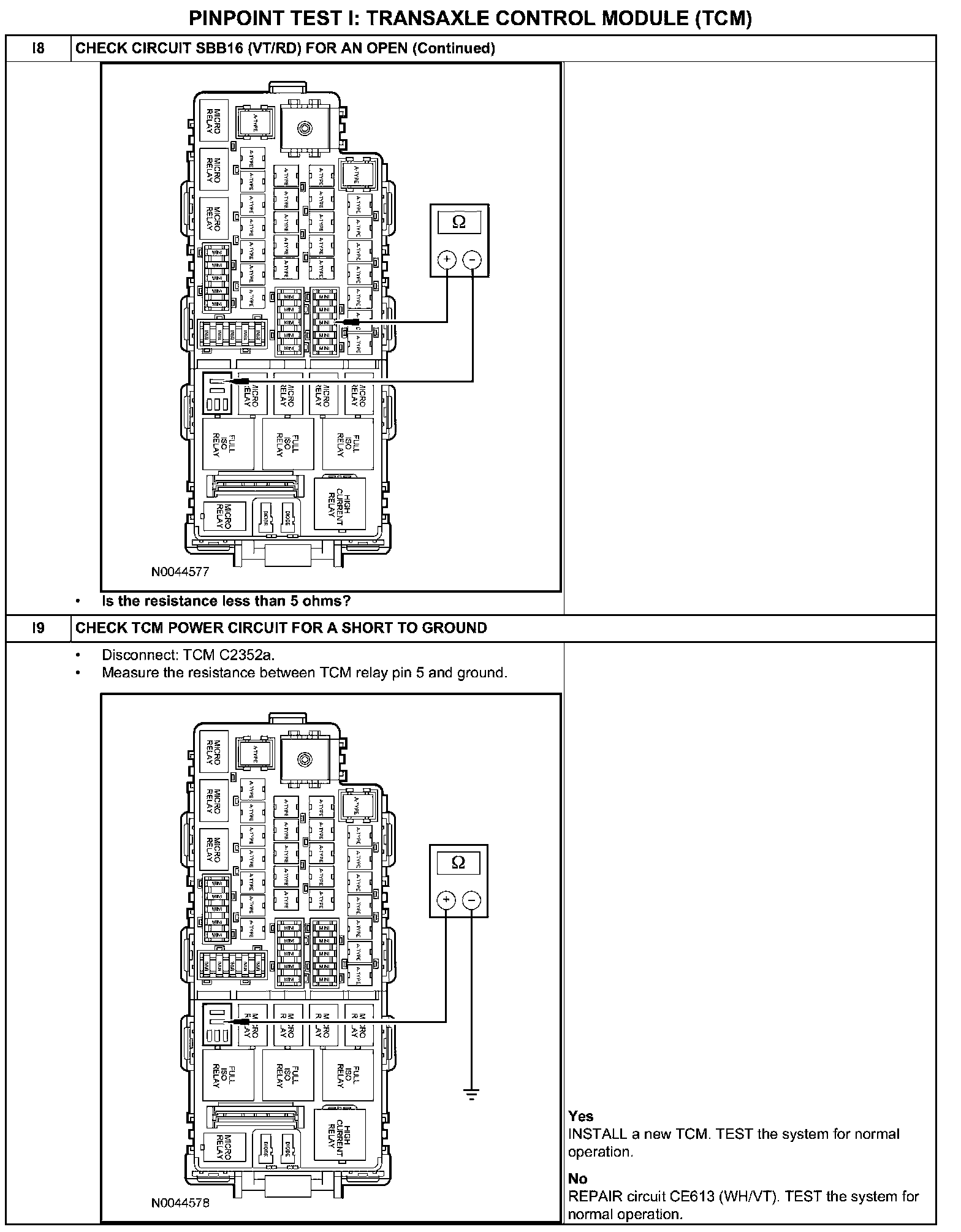

I8-I9:

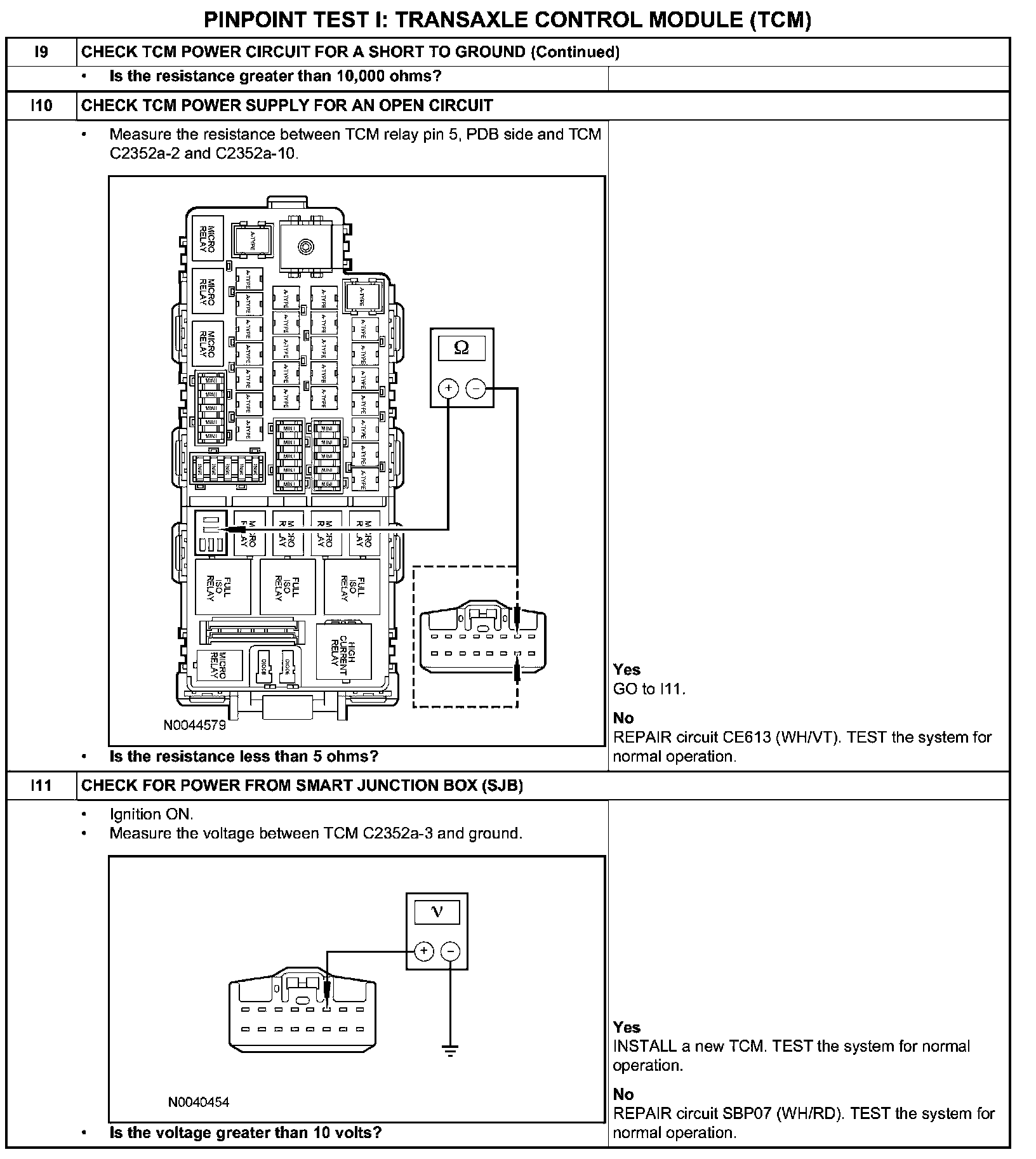

I9-I11:
