Test B: Transmission Fluid Temperature (TFT) Sensor



PINPOINT TEST B: TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR

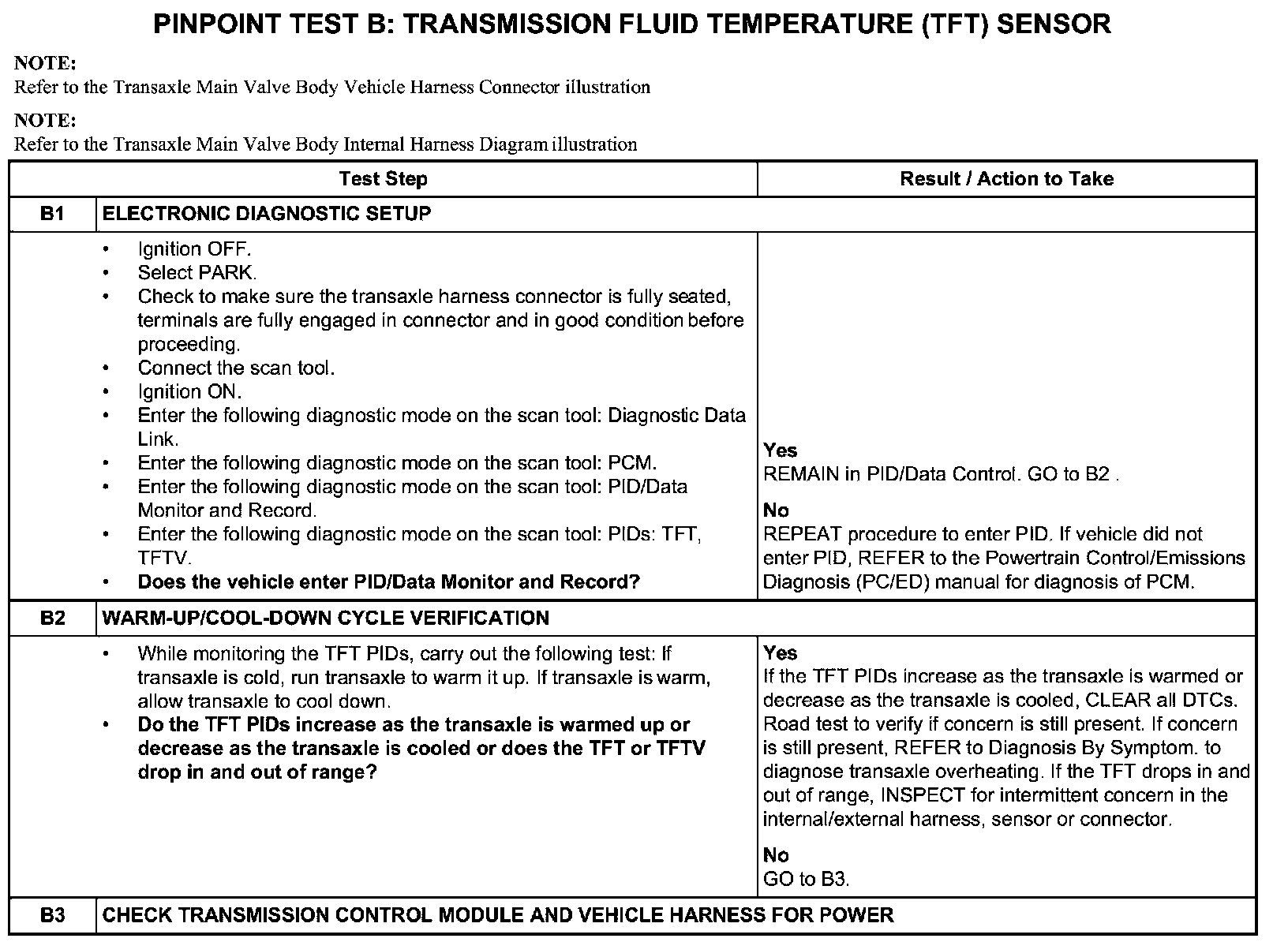

B1-B3:

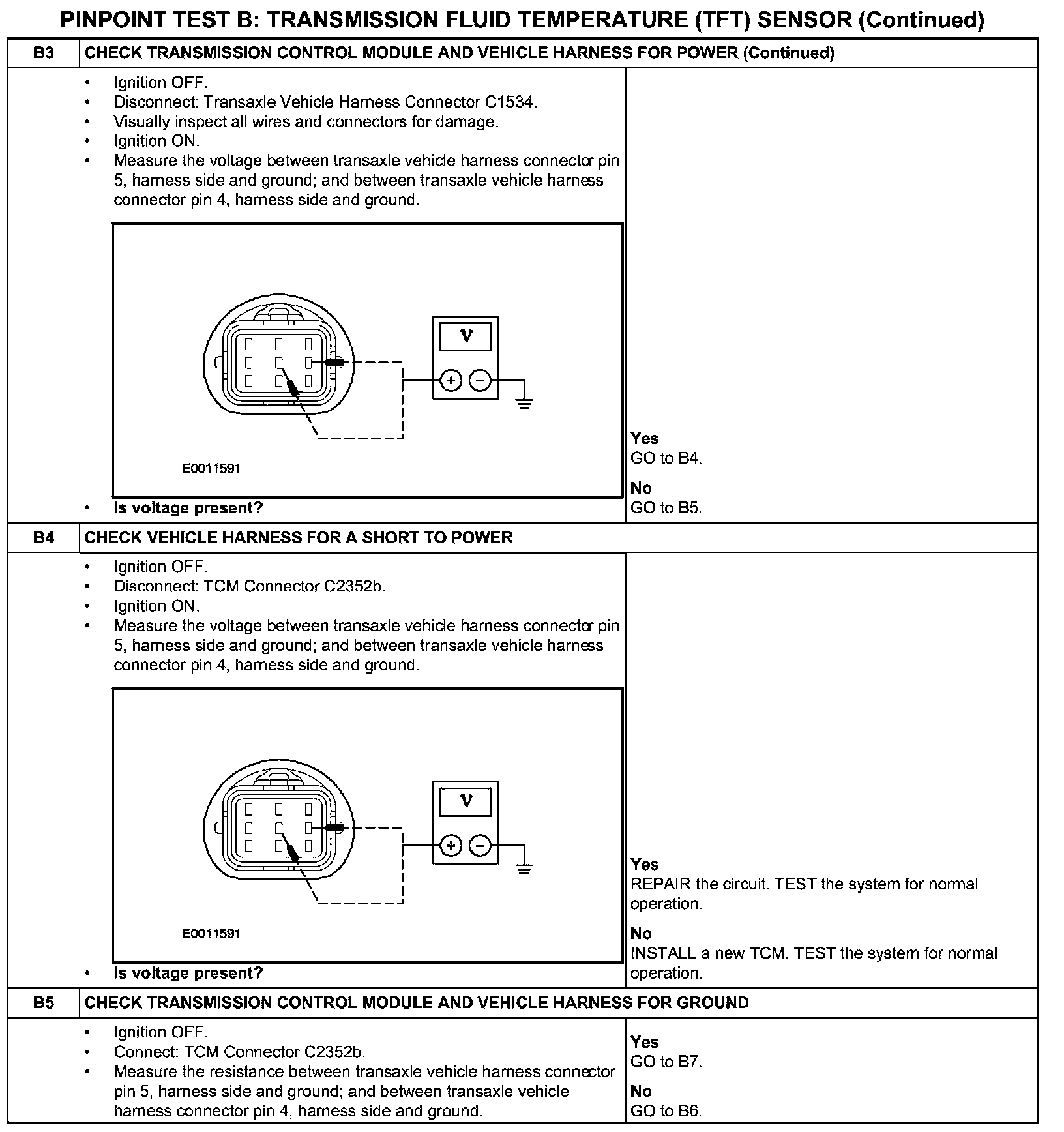

B3-B5:

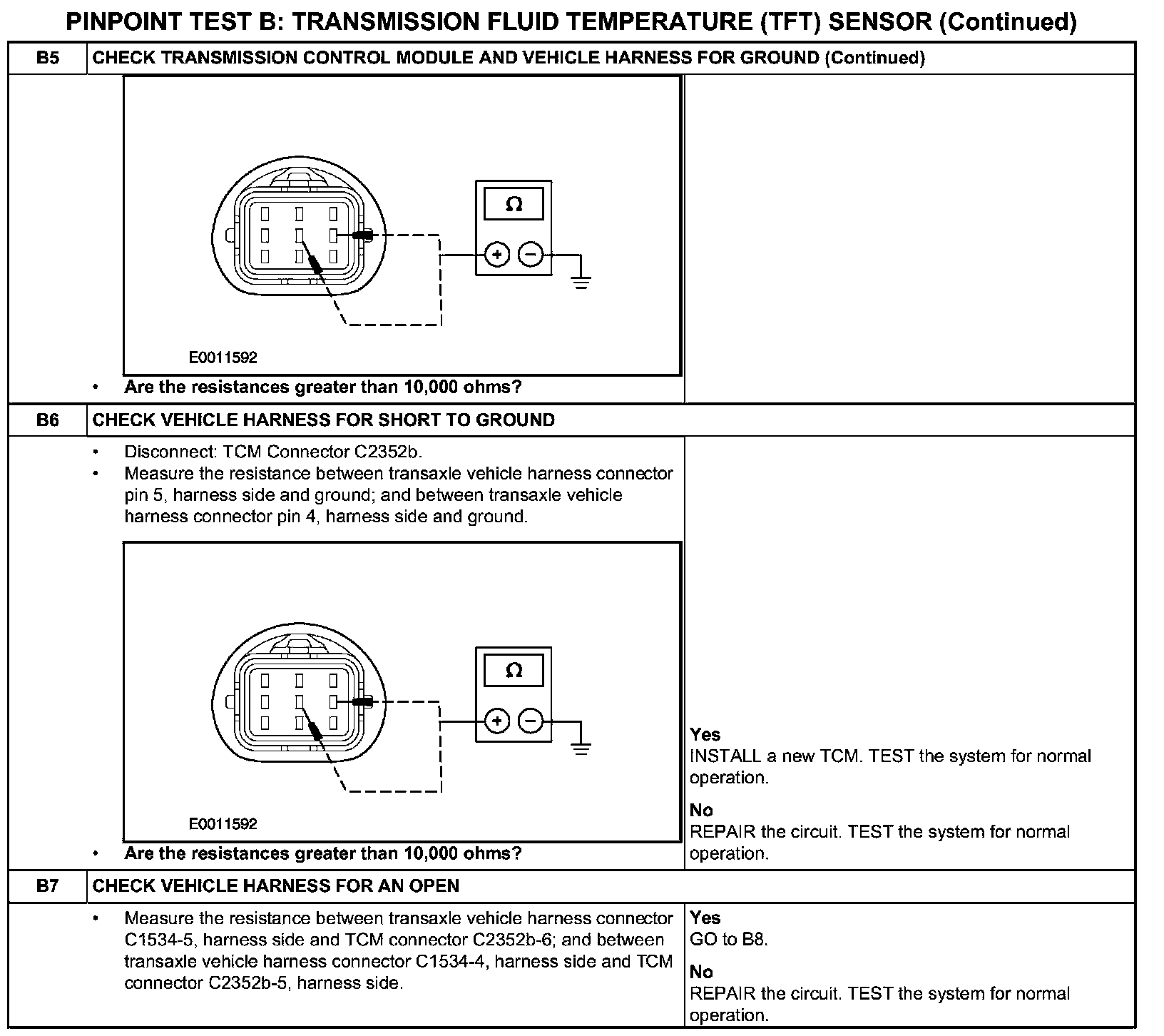

B5-B7:

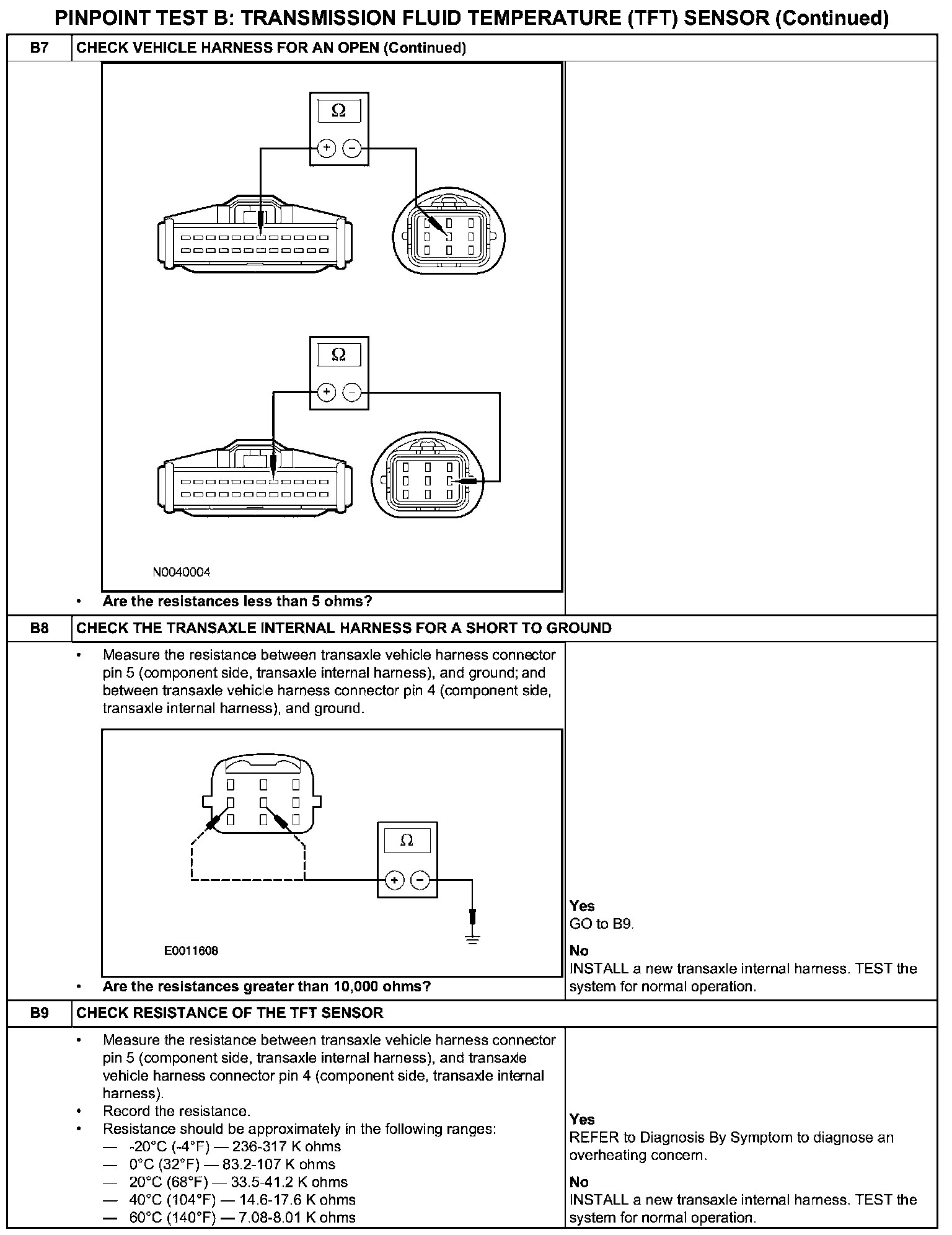

B7-B9:

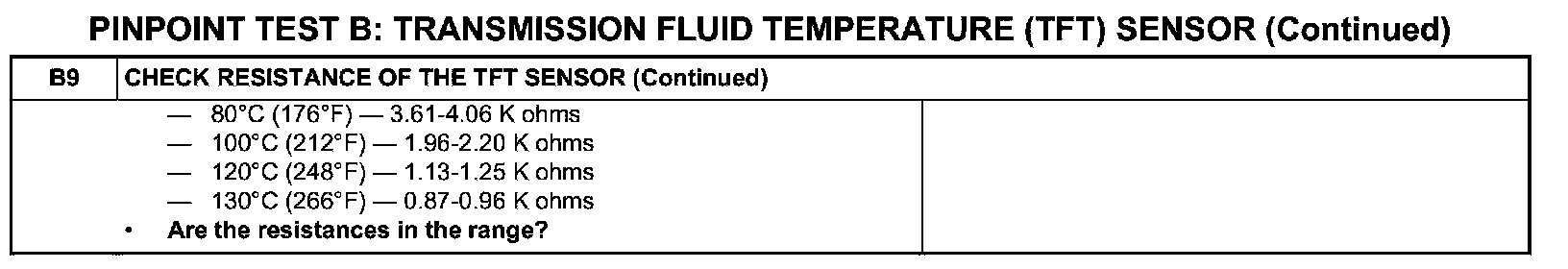

B9:
