Test A: The Ignition Switch is Inoperative

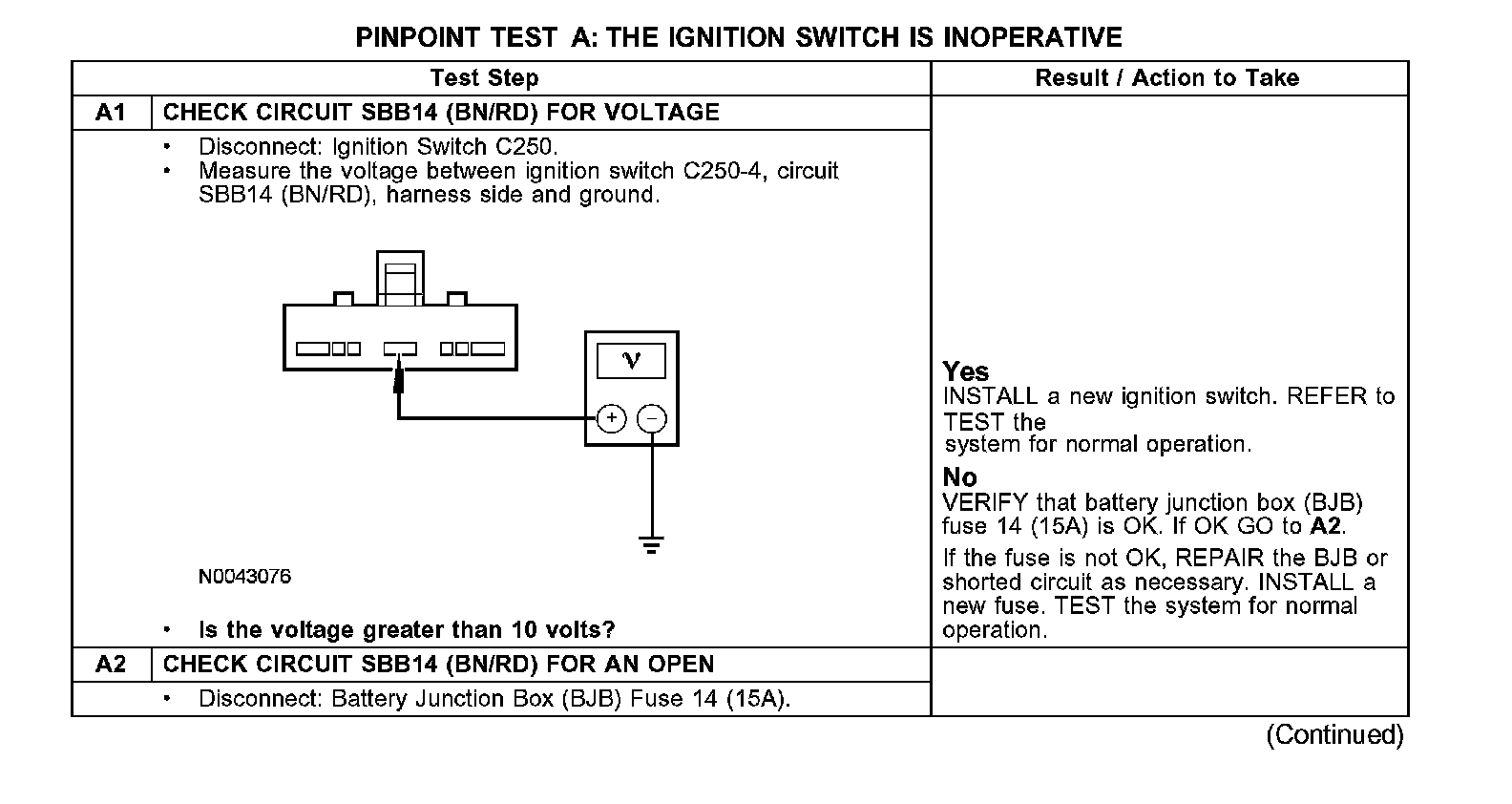

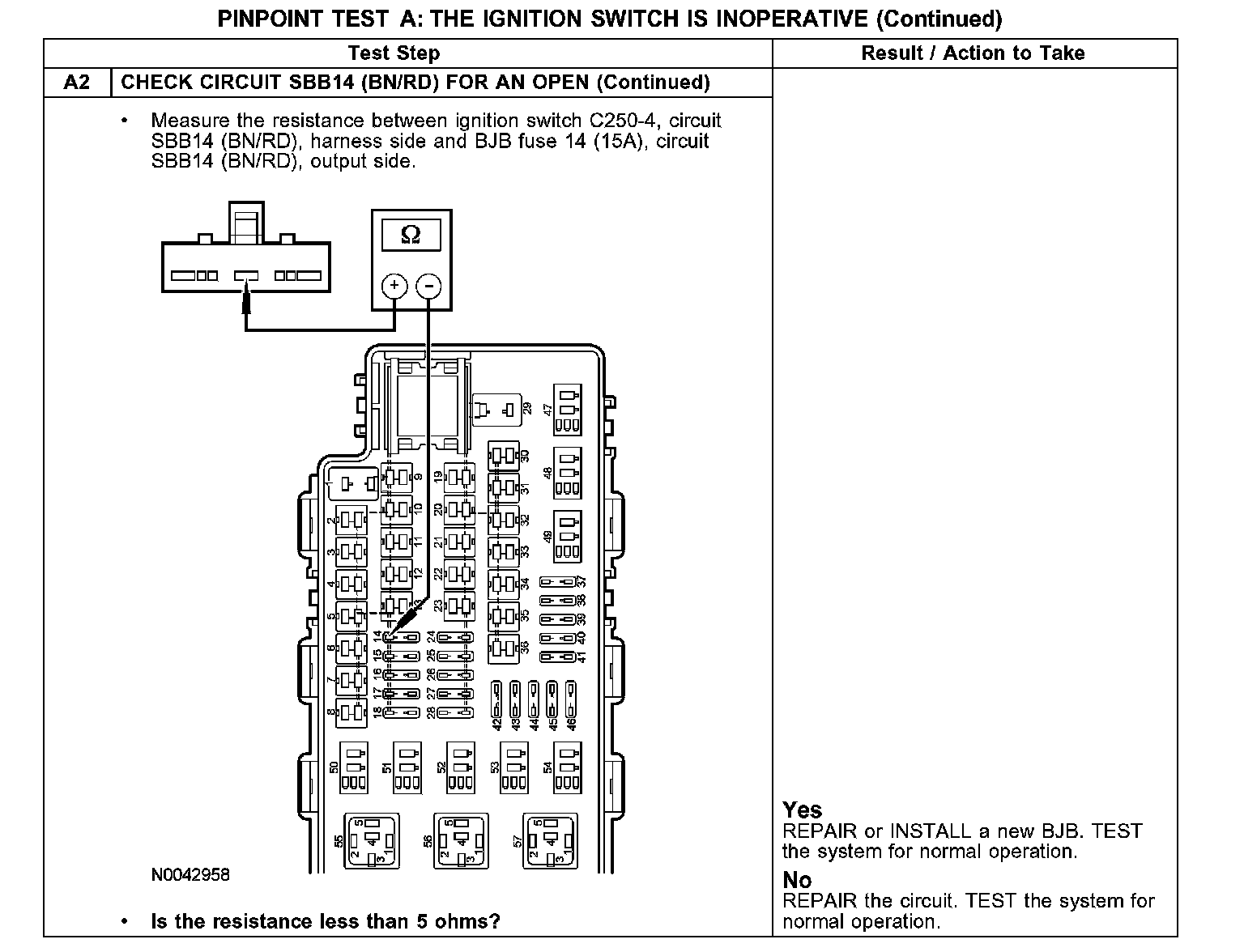

Pinpoint Test A: The Ignition Switch is Inoperative

Normal Operation
The ignition switch receives fused battery voltage from battery junction box (BJB) fuse 14 (15A) along circuit SBB14 (BN/RD). The ignition switch has 4 possible states:
^ OFF
^ ACC
^ RUN
^ START

Possible Causes
^ Fuse
^ Circuitry
^ Ignition switch
^ Battery junction box (BJB)
