Inspection and Verification

INSPECTION AND VERIFICATION

WARNING:
- When using a remote starter switch or jumper wire, be sure the ignition switch is in the OFF position and the transmission is in PARK with the parking brake control fully applied.
- When working underhood in the vicinity of the starter motor, be aware that the heavy gauge battery input lead at the starter solenoid is "electrically hot" at all times. A protective cap or boot is provided over the terminal of this lead and must be reinstalled after repairing.
- When working in the area of the starter motor, be careful to avoid touching hot exhaust components.


NOTE: When working on the starter system, make sure the anti-theft system is operating correctly.

1. Verify the customer concern by operating the starting system to duplicate the conditions.

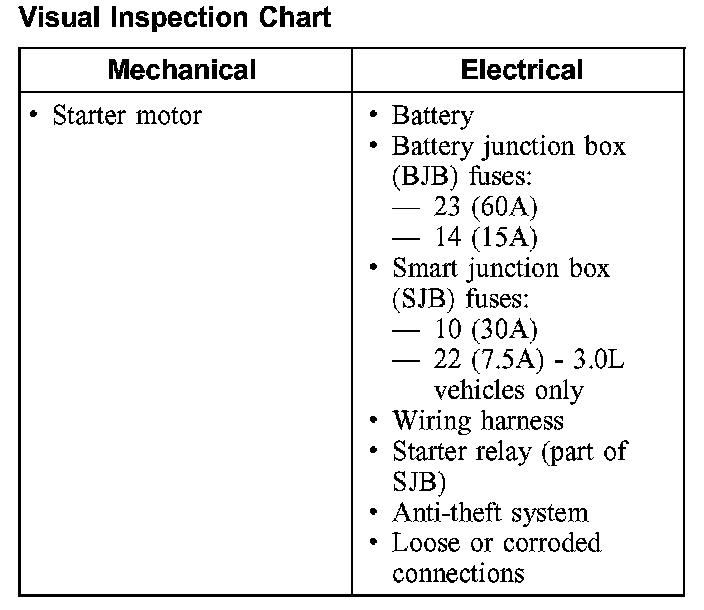

Visual Inspection Chart:






2. Inspect to determine if any of the mechanical or electrical concerns apply.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the cause is not visually evident, connect the diagnostic tool to the data link connector (DLC) and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
- check that the program card is correctly installed.
- check the connections to the vehicle.
- check the ignition switch position.

5. If the diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool operating manual.
6. Carry out the diagnostic tool data link test. If the diagnostic tool responds with:
- appropriate communication networks, such as SCP, ISO, UBP, CAN circuit fault; all electronic control units no response/not equipped, refer to Information Bus (Module Communications Network).
- No response/not equipped for generic electronic module (GEM), refer to Body Control Systems (Multifunction Electronic Control Module).
- System passed, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs and carry out the self-test diagnostics for the GEM.

7. If the DTCs retrieved are related to the concern, go to the Generic Electronic Module (GEM) Diagnostic Trouble Code (DTC) Index. Diagnostic Trouble Code Tests and Associated Procedures
8. If no DTCs related to the concern are retrieved, GO to Symptom Chart. Symptom Related Diagnostic Procedures
