Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.

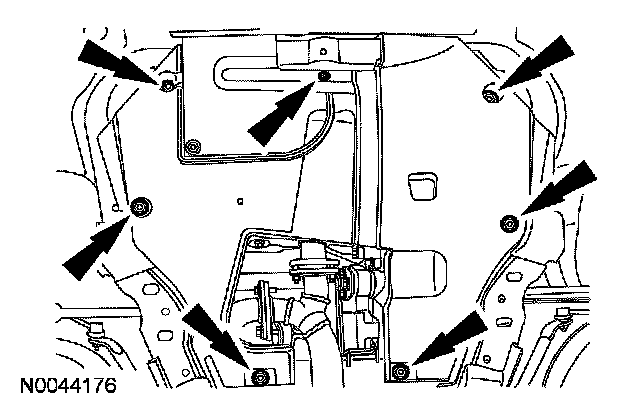

3. If equipped, remove the 7 screws and the underbody cover.

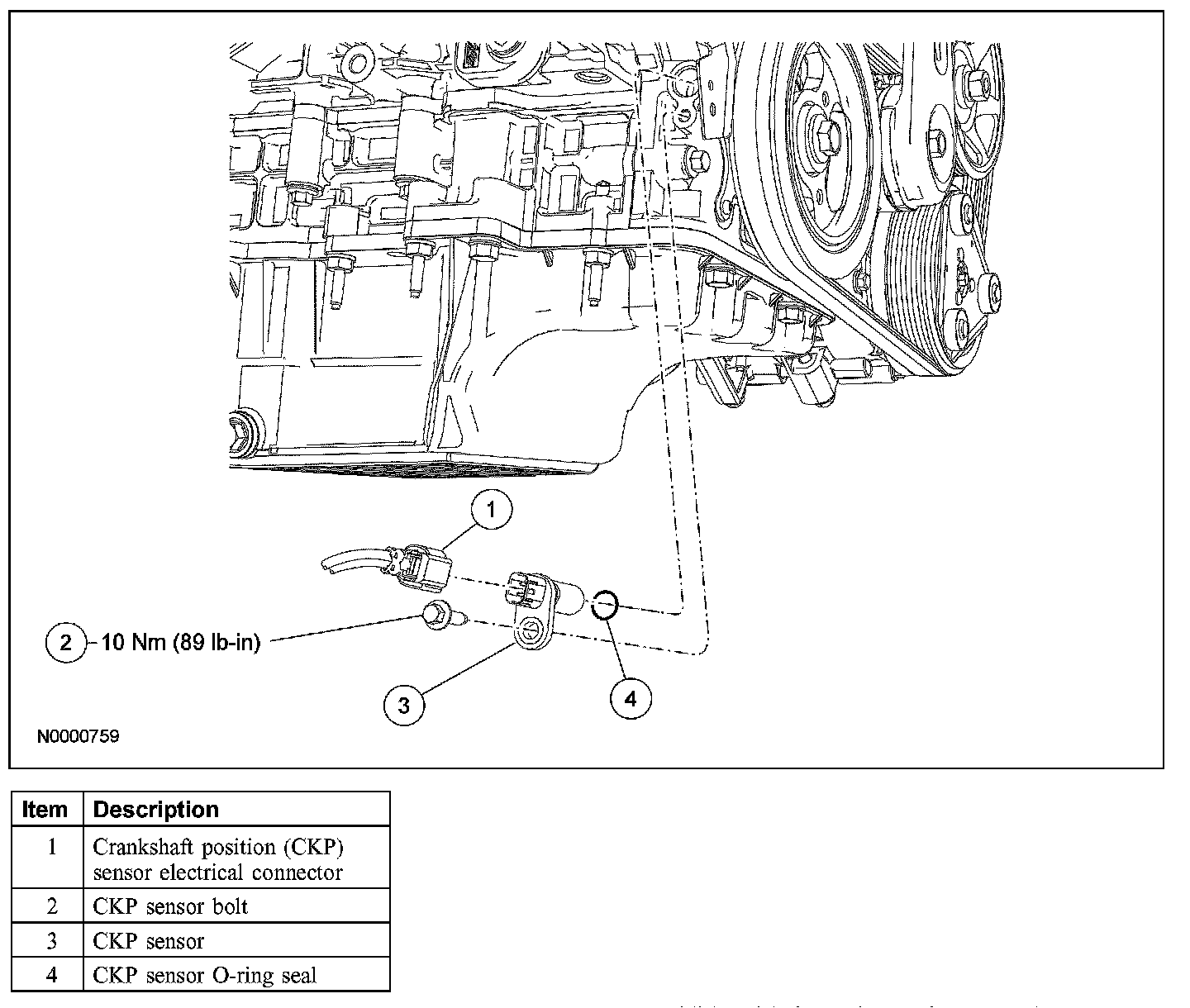

4. Disconnect the crankshaft position (CKP) sensor electrical connector.
5. Remove the bolt and the CKP.
- To install, tighten to 10 Nm (89 lb-in).

6. NOTE: Lubricate the CKP O-ring seal with clean engine oil.

To install, reverse the removal procedure.
