Evaporator Temperature Sensor / Switch: Service and Repair

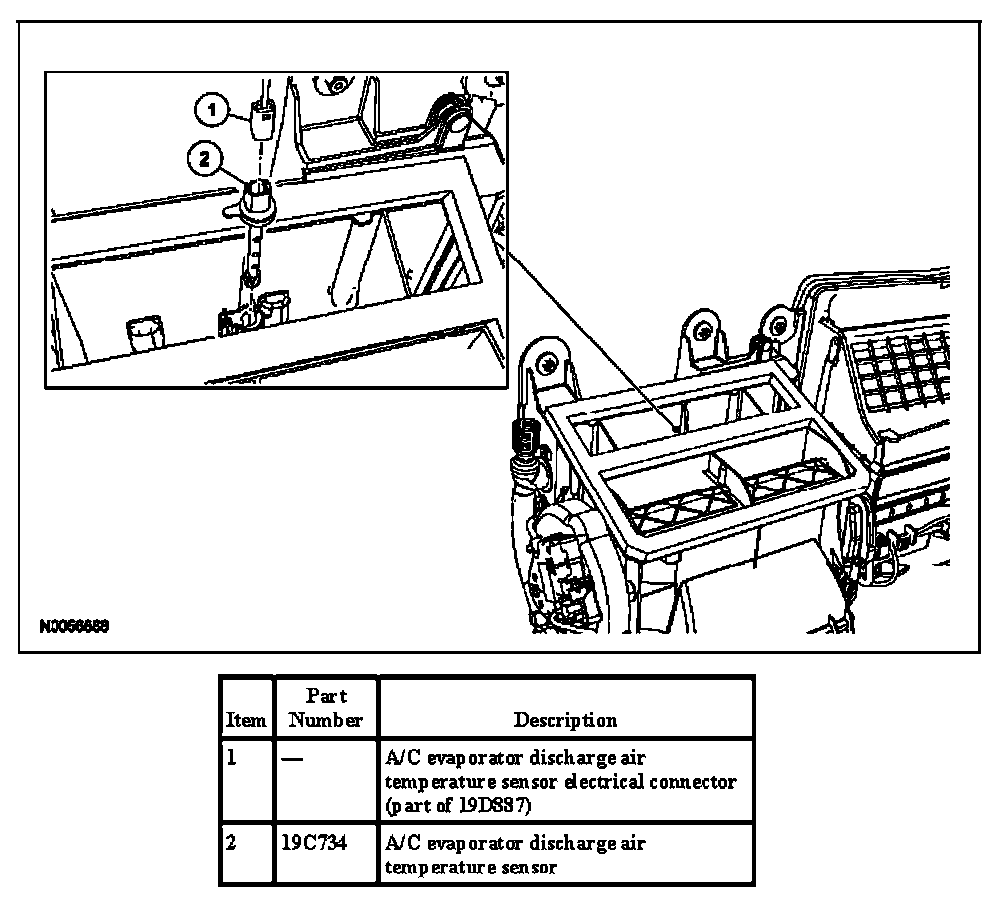

Air Conditioning (A/C) Evaporator Discharge Air Temperature Sensor






Removal and Installation

1. Remove the instrument panel. Please refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel. Dashboard / Instrument Panel
2. Detach the A/C evaporator discharge air temperature sensor.
3. Disconnect the A/C evaporator discharge air temperature sensor electrical connector.
4. Remove the evaporator discharge air temperature sensor.
5. To install, reverse the removal procedure.
