Electronic Brake Control Module: Service and Repair

Anti-Lock Brake System (ABS) Module

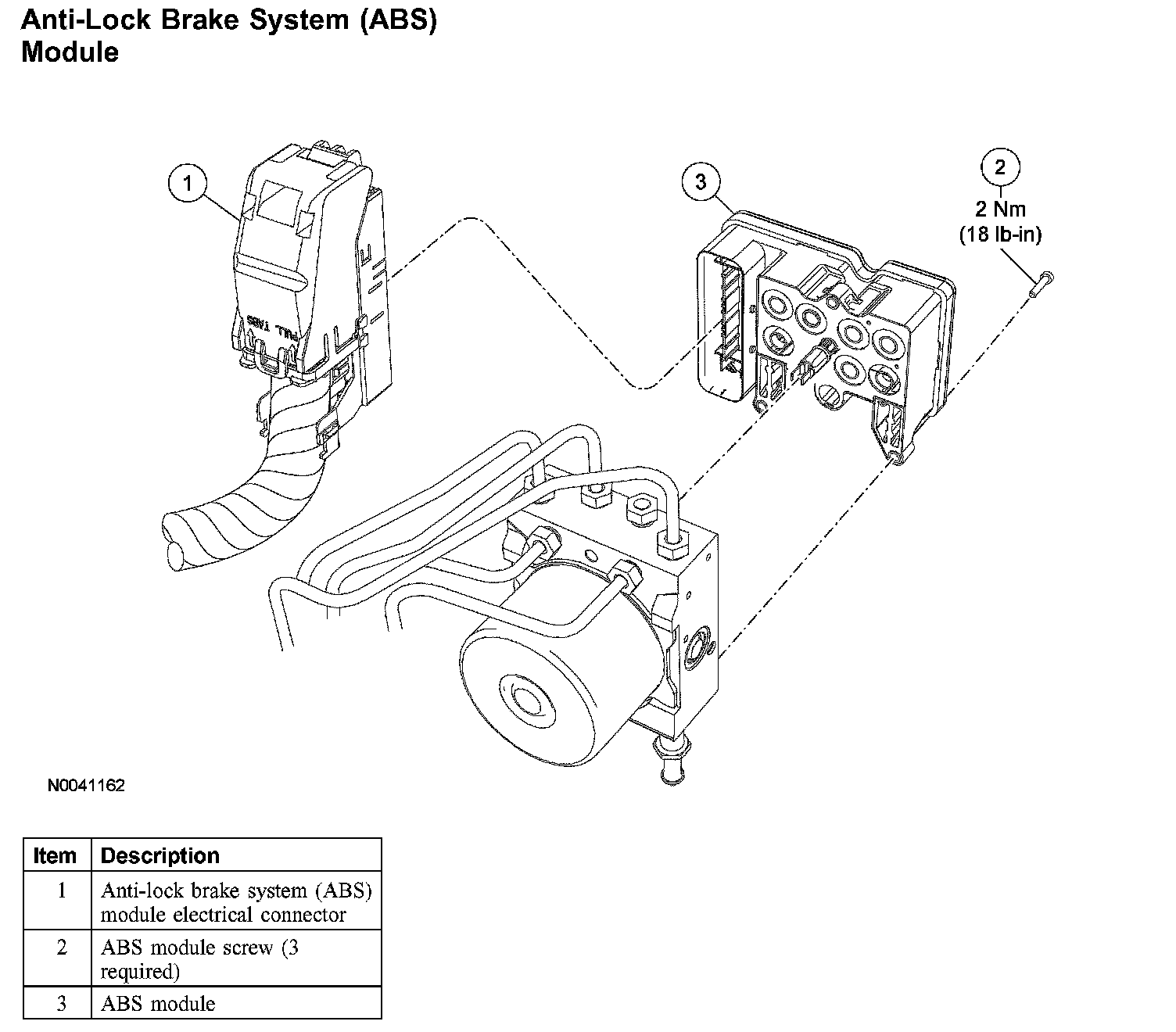

Anti-Lock Brake System (ABS) Module:

Removal and Installation

CAUTION: Electronic modules are sensitive to electrical charges. The ABS module can be damaged if exposed to these charges.

CAUTION: Do not allow any brake fluid or foreign material to enter the mating side of the ABS module or damage to the solenoids can occur.

NOTE: When installing a new ABS control module it must be configured using the vehicle as-built data and calibrated. For additional information, refer to Body Control Systems.

1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the degas bottle. For additional information, refer to Cooling System.
3. Disconnect the anti-lock brake system (ABS) module electrical connector.
4. Remove the 3 ABS module screws and the ABS module.
^ To install, tighten to 2 Nm (18 inch lbs.).

5. NOTE: Visually inspect the ABS module terminals for damage before installation.

To install, reverse the removal procedure.
