Torque Converter Clutch Solenoid
>>
Application and ID
>>
6 Speed Automatic Transaxle
6 Speed Automatic Transaxle

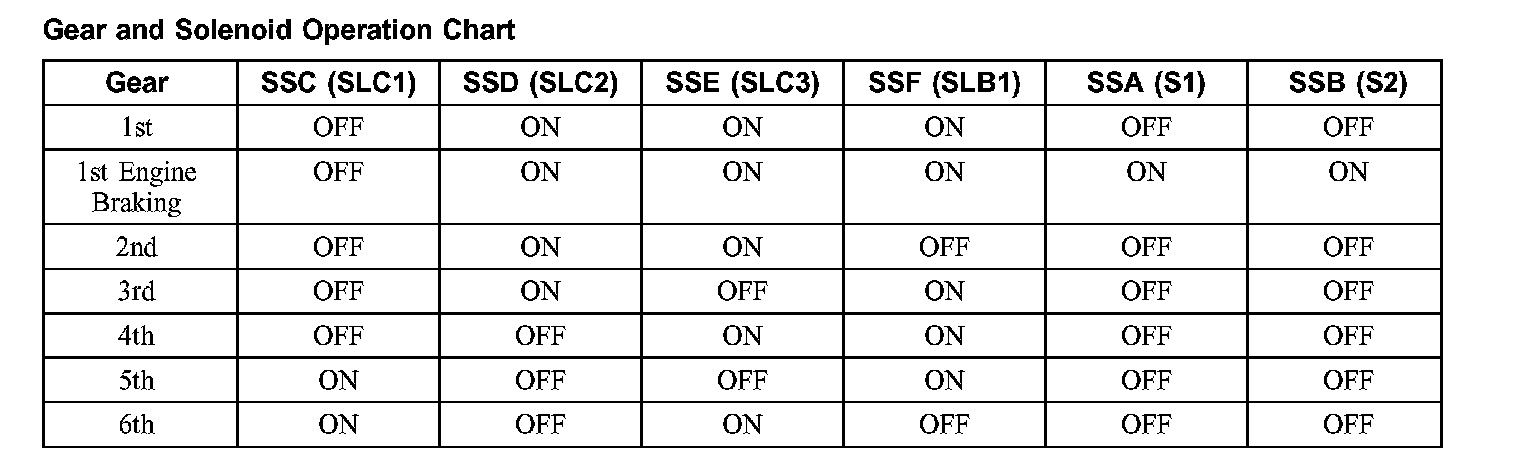

Gear and Solenoid Operation Chart
Gear and Solenoid Operation Chart:

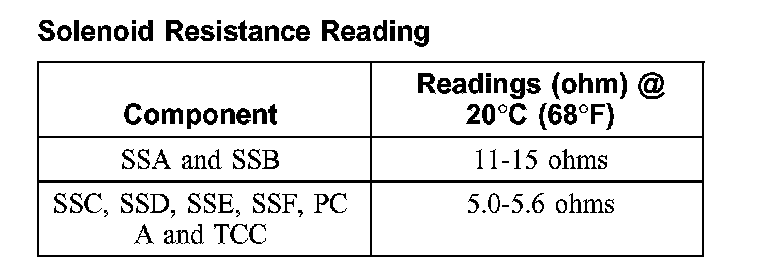

Solenoid Resistance Reading
Solenoid Resistance Reading:
