Vehicle Speed Sensor: Service and Repair

Vehicle Speed Sensor (VSS)

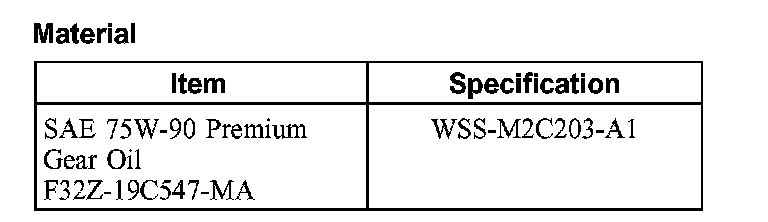

Material:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

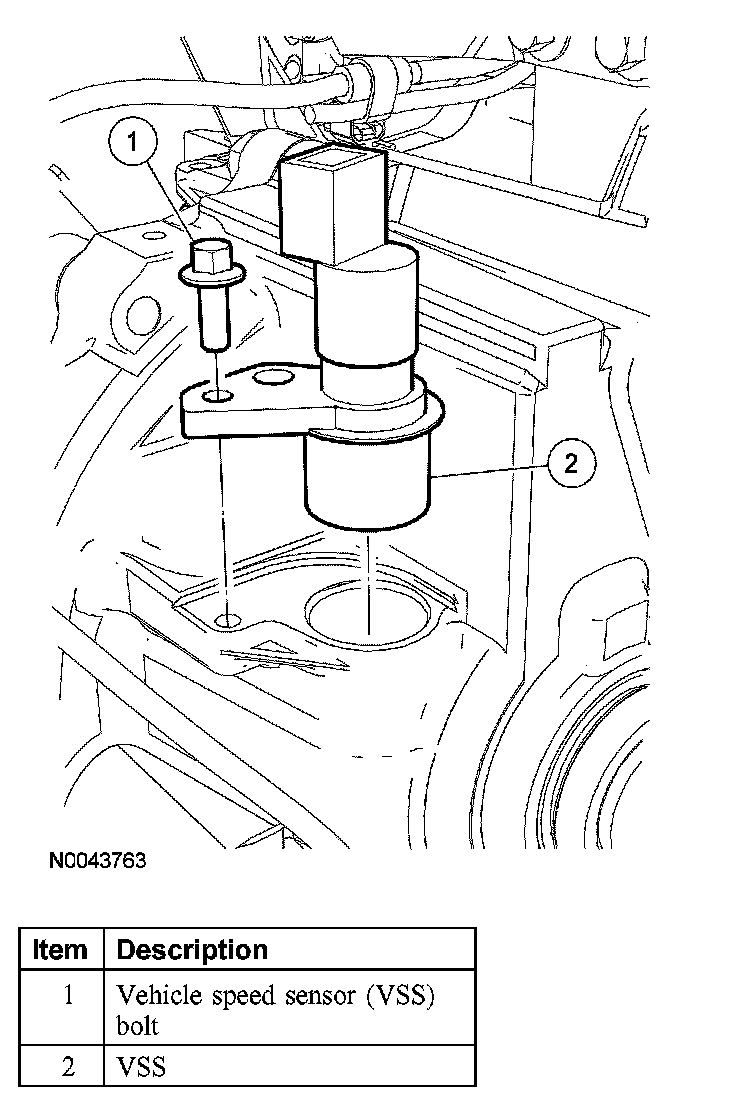

2. Remove the vehicle speed sensor (VSS) bolt.
^ To install, tighten to 9 Nm (80 inch lbs.).

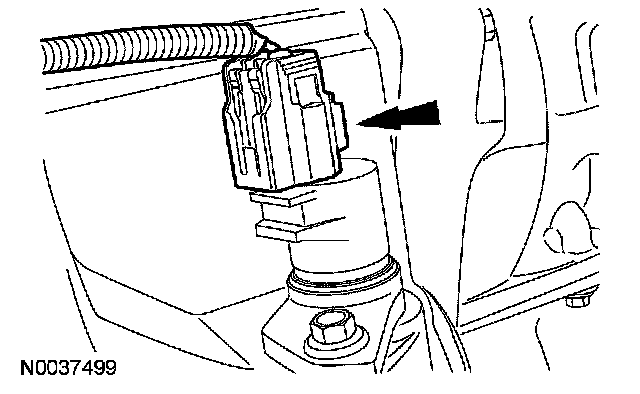

3. Disconnect the VSS electrical connector.





4. Remove the VSS.
^ Discard the O-ring.
5. To install, reverse the removal procedure.
^ Apply clean transaxle fluid to a new O-ring and install it on the VSS.
