Test R: The Speed Control Indicator Is Never/Always On

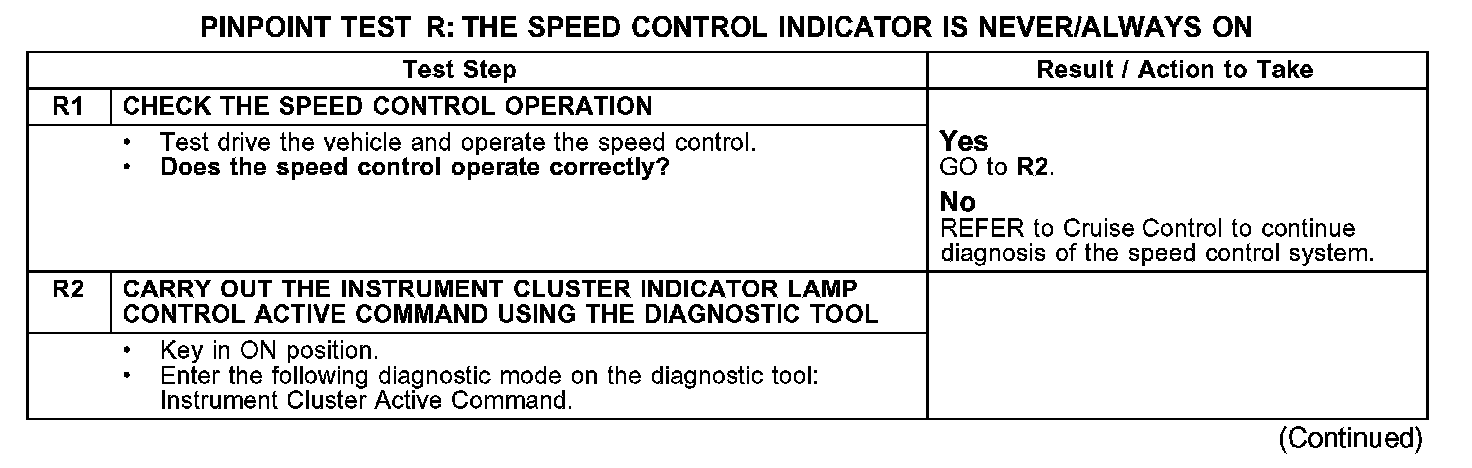

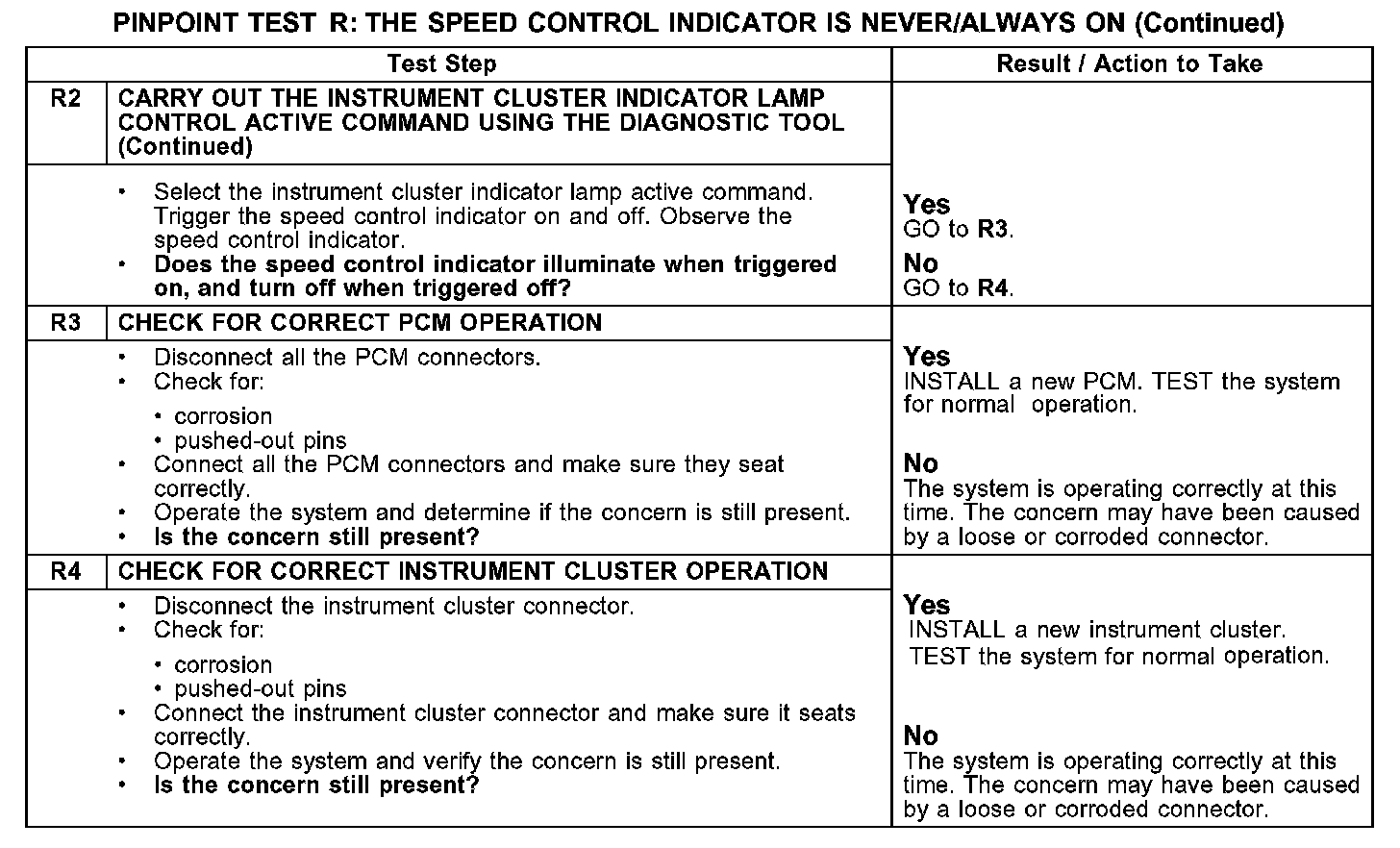

PINPOINT TEST R: THE SPEED CONTROL INDICATOR IS NEVER/ALWAYS ON

R1-R2:

R2-R4:

Normal Operation
The speed control status information is sent to the instrument cluster from the powertrain control module (PCM) over the communication network.

Possible Causes
- PCM
- instrument cluster
