Test F: A Single Illumination Source Is Inoperative - Nondimmable Illumination Source

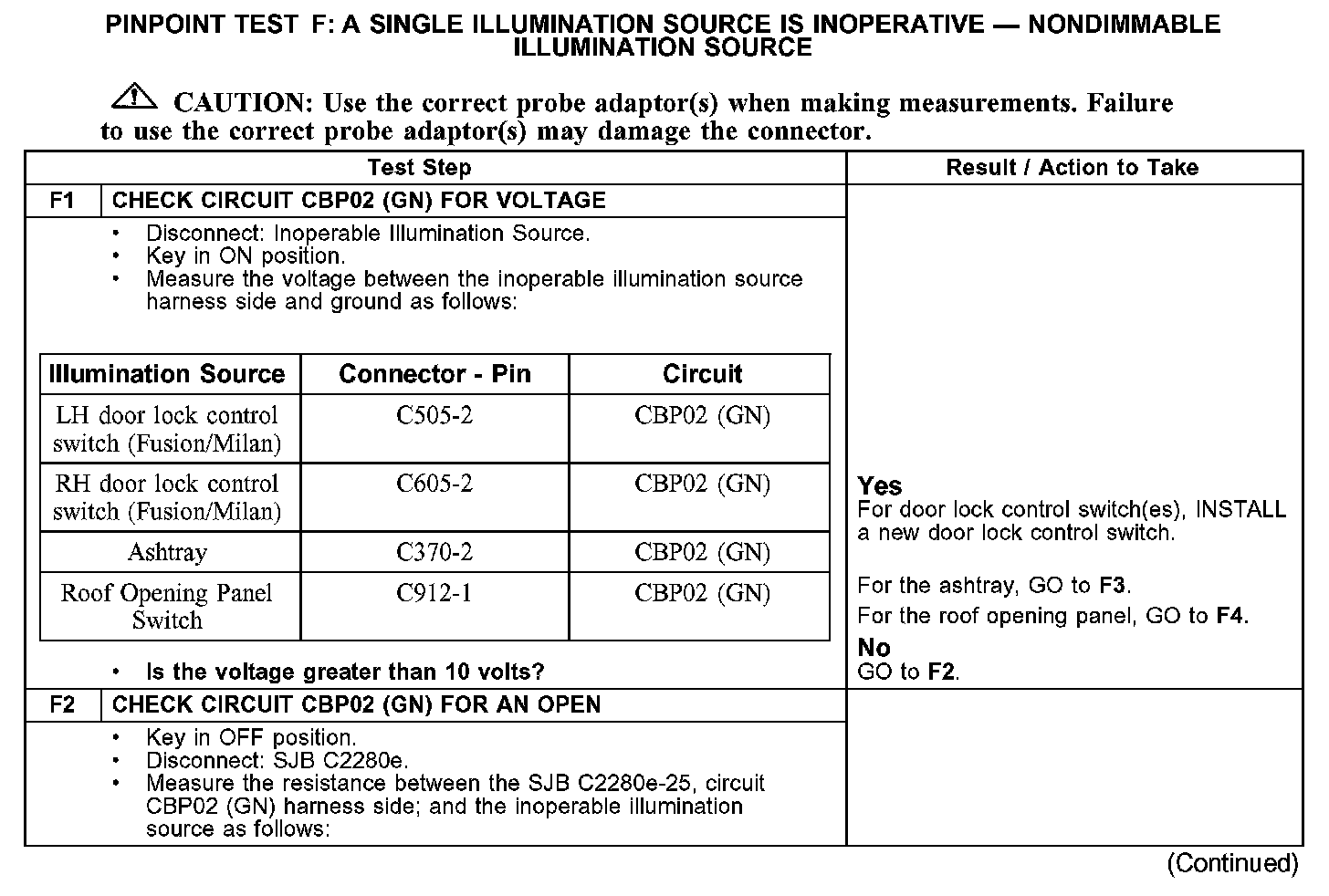

PINPOINT TEST F: A SINGLE ILLUMINATION SOURCE IS INOPERATIVE - NONDIMMABLE ILLUMINATION SOURCEF1-F2:

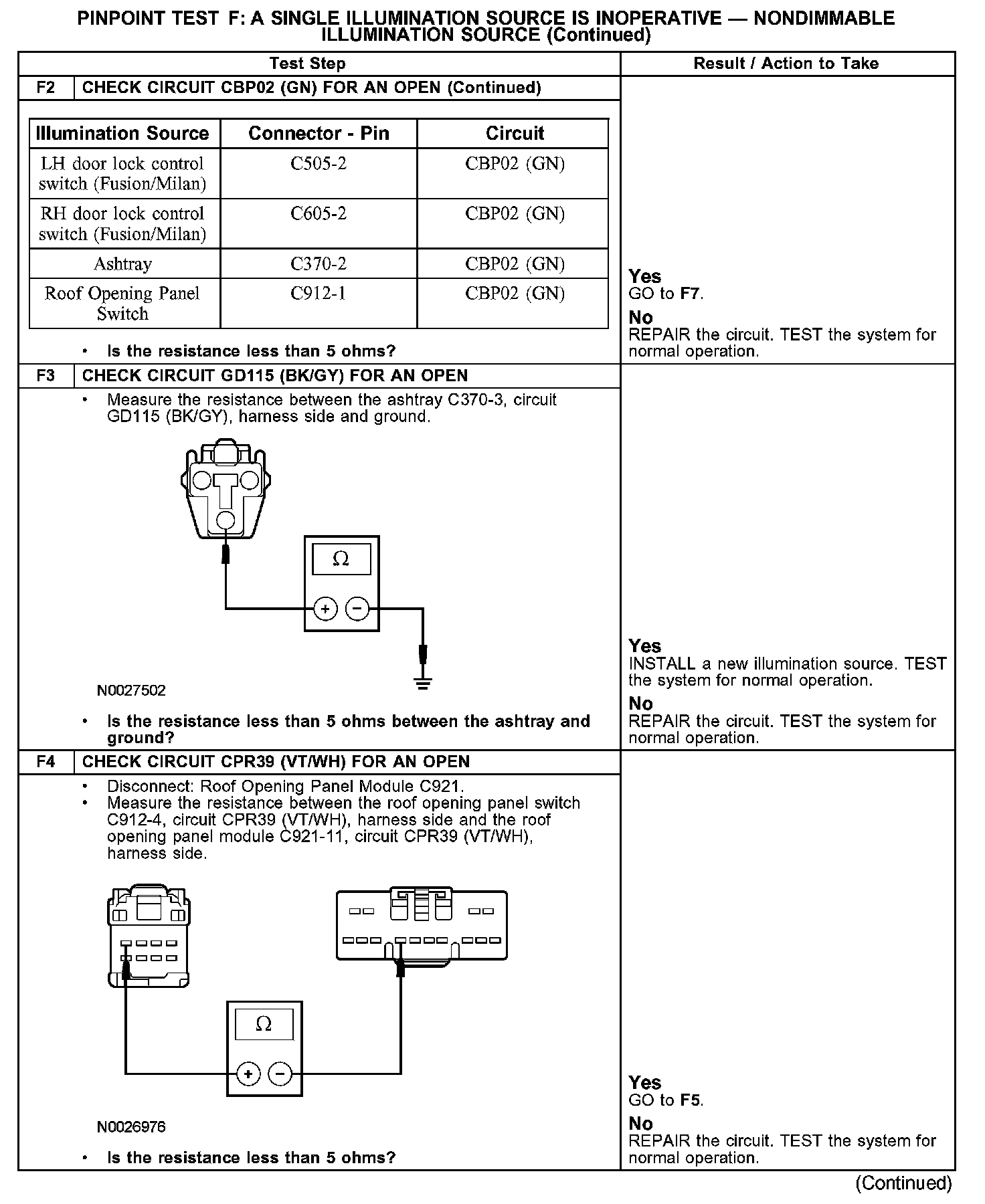

F2-F4:

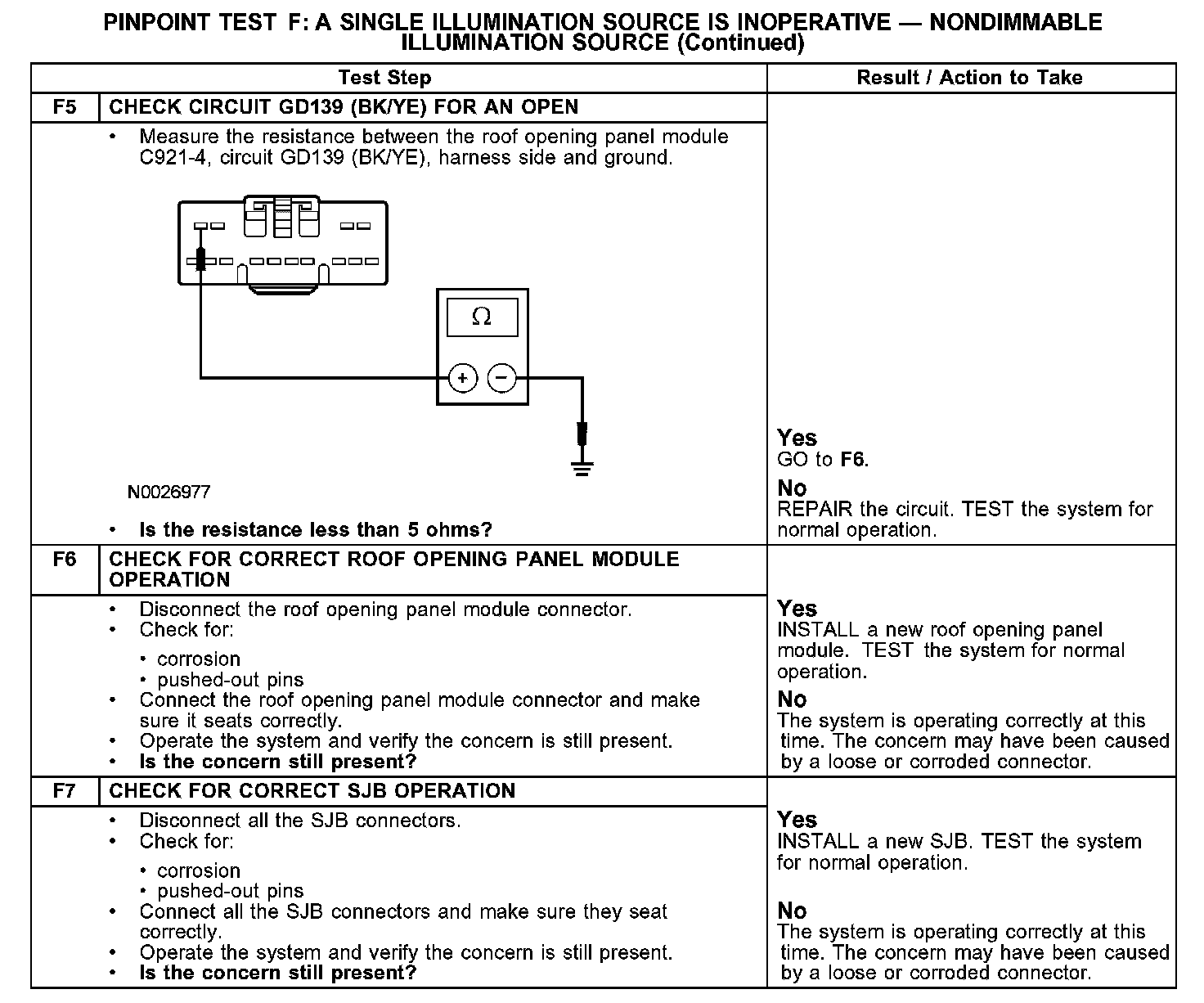

F5-F7:
Normal Operation
When the delayed accessory relay is energized, voltage is supplied from the smart junction box SJB) to the door lock control switches (Fusion/Milan), the roof opening panel (if equipped) and the ashtray (Zephyr) through circuit CBP02 (GN). The LH door lock control switch is grounded through circuit GD126 (BK/WH). The RH door lock control switch is grounded through circuit GD139 (BK/YE). The ashtray is grounded through circuit GD115 (BK/GY). The roof opening panel switch is grounded through circuit CPR39 (VT/WH) to the roof opening panel module which is grounded through circuit GD139 (BK/YE).
Possible Causes
- circuit CBP02 (GN) open
- circuit CPR39 (VT/WH) open
- circuit GD115 (BK/GY) open
- circuit GD126 (BK/WH) open
- circuit GD139 (BK/YE) open
- ashtray (Zephyr)
- door lock control switch(es) (Fusion/Milan)
- roof opening panel switch
- roof opening panel module
- SJB
