Test F: The Low Fuel Level Warning Is Incorrect

PINPOINT TEST F: THE LOW FUEL LEVEL WARNING IS INCORRECT

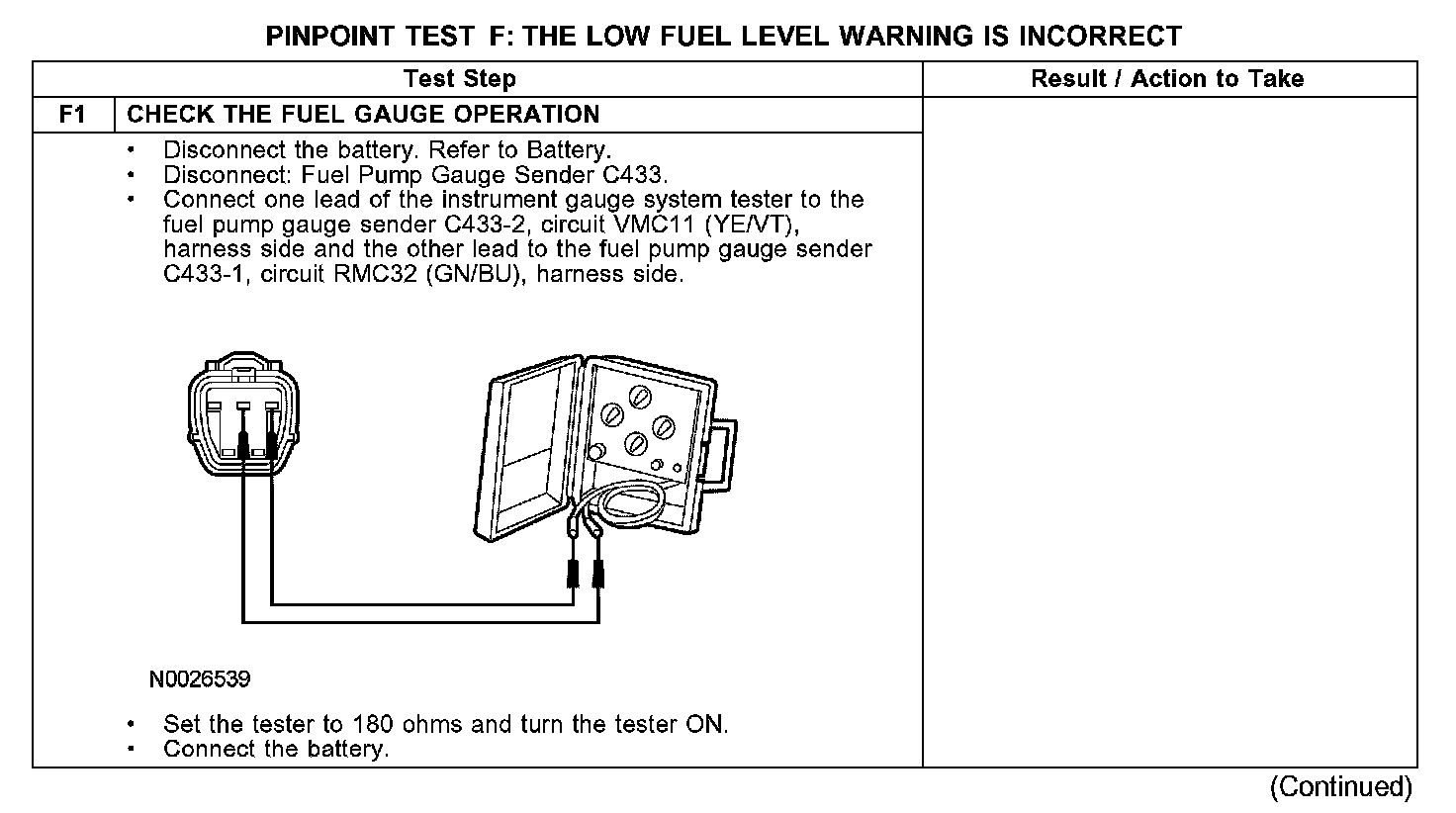

F1:

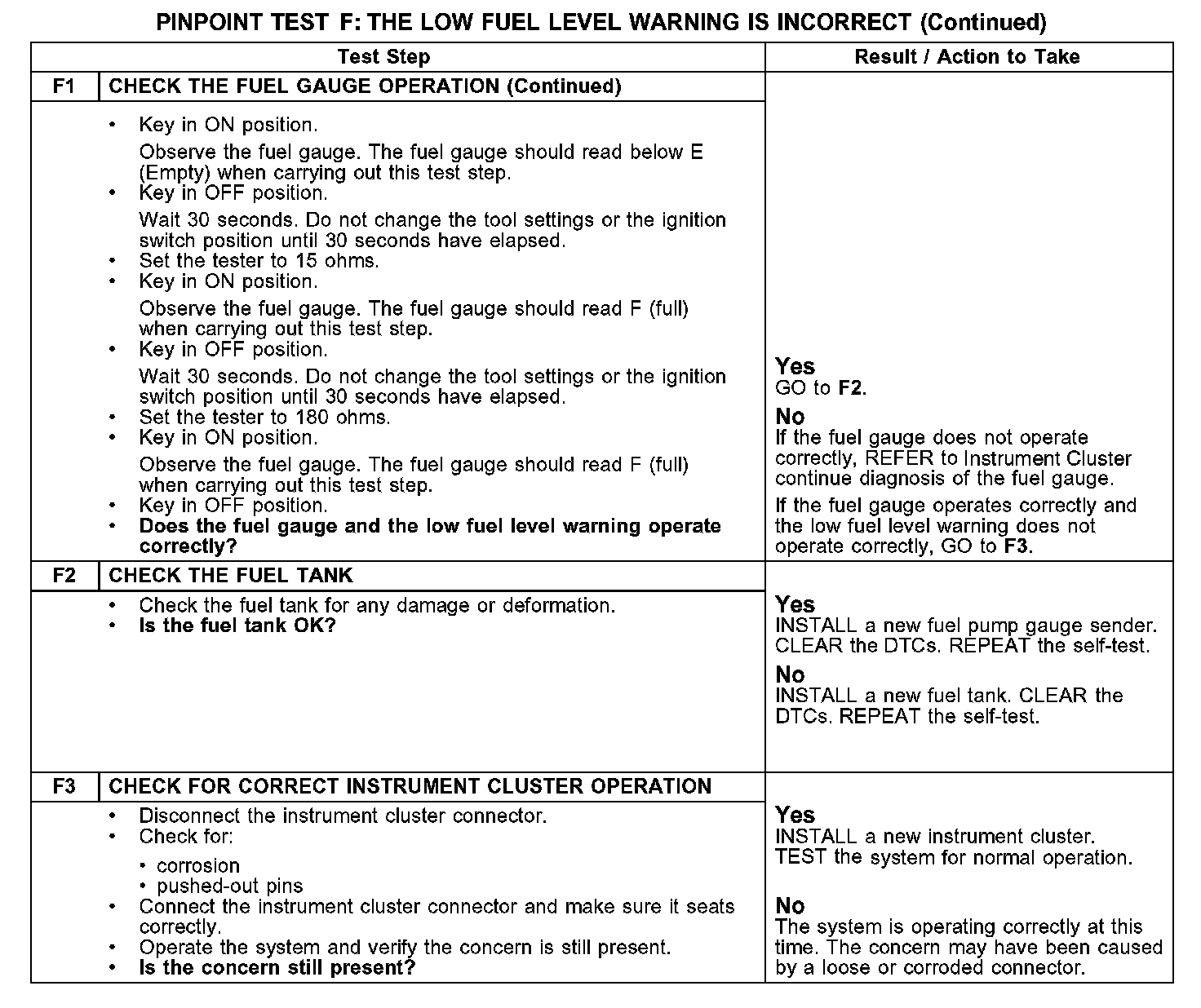

F1-F3:

Normal Operation
The LOW FUEL LEVEL is displayed when the fuel level reaches a predetermined level of approximately 1/8 tank. The LOW FUEL LEVEL display and the fuel gauge are controlled by the instrument cluster based upon the fuel level data provided by the fuel sender. When the instrument cluster receives the data, the fuel gauge indicates low fuel and the instrument cluster displays LOW FUEL LEVEL.

Normal Operation
- fuel tank
- fuel pump gauge sender
- instrument cluster
