Oil Pressure Sender: Service and Repair

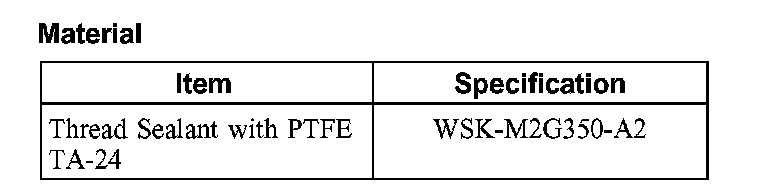

Oil Pressure SenderMaterial:
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

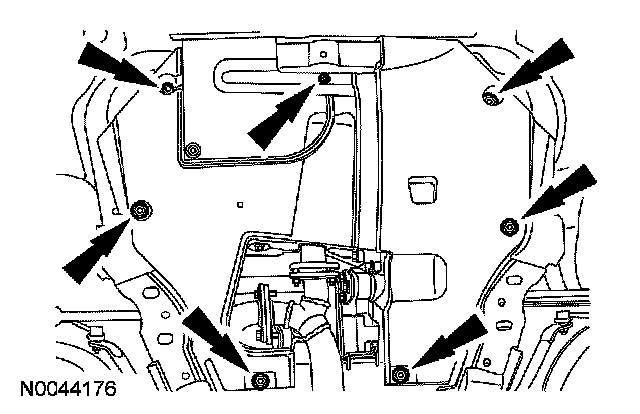

2. If equipped, remove the 7 screws and the underbody cover.
3. NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing.

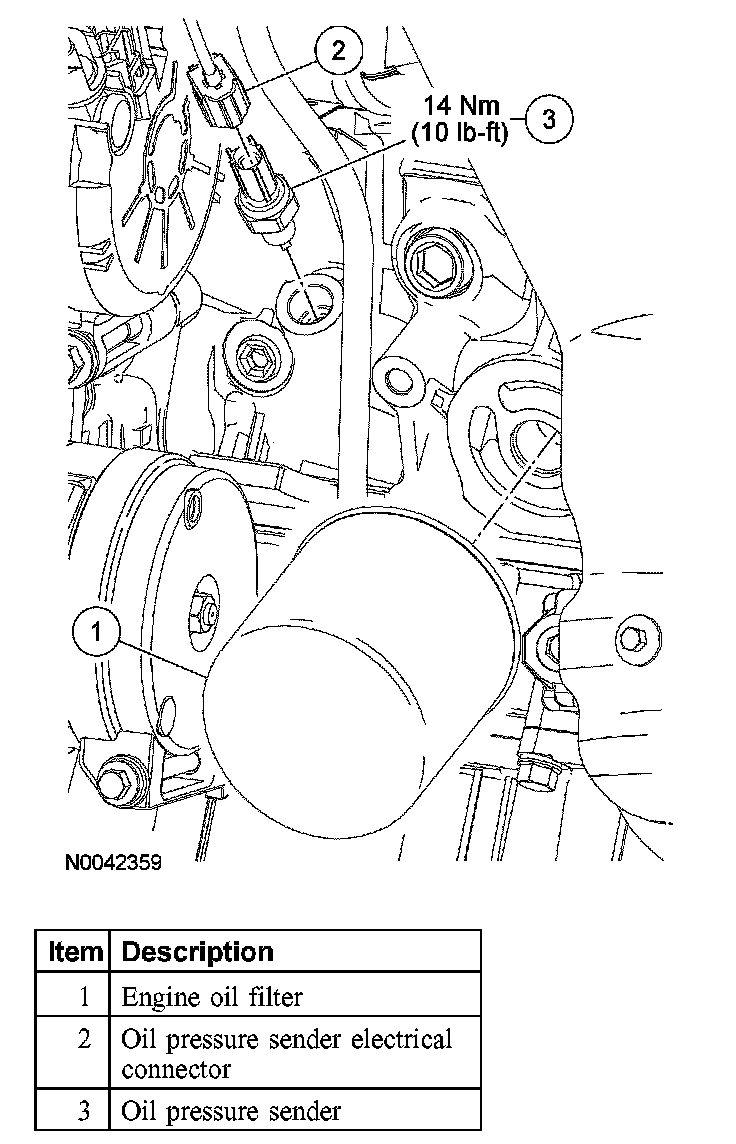

Remove the engine oil filter.
^ To install tighten to 5 Nm (44 inch lbs.) and then rotate an additional 180 degrees.
4. Disconnect the oil pressure sender electrical connector.
5. Remove the oil pressure sender.
^ To install, tighten to 14 Nm (10 ft. lbs.).
6. To install, reverse the removal procedure.
^ Apply pipe sealant with Teflon to the oil pressure sender threads.
