Rear Crankshaft Main Bearing Seal: Service and Repair

Crankshaft Rear Seal

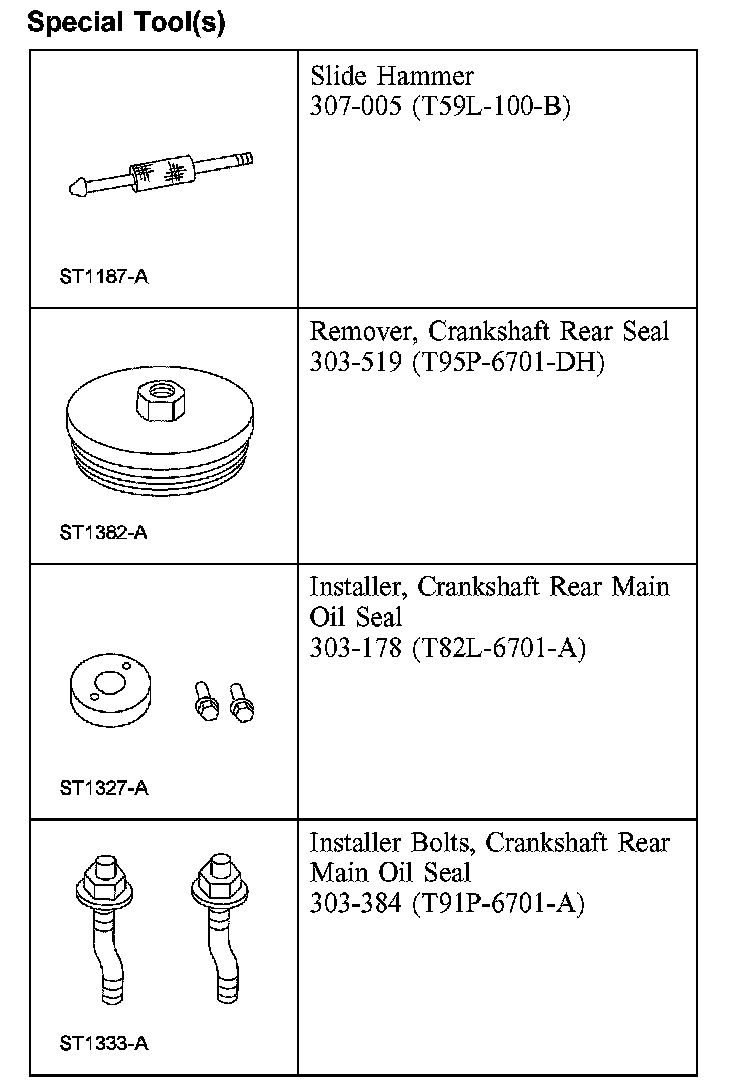

Special Tool(s):

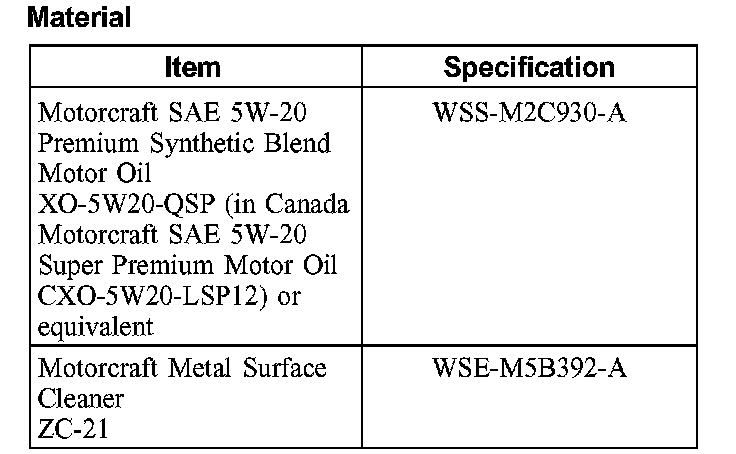

Material:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Remove the flexplate.

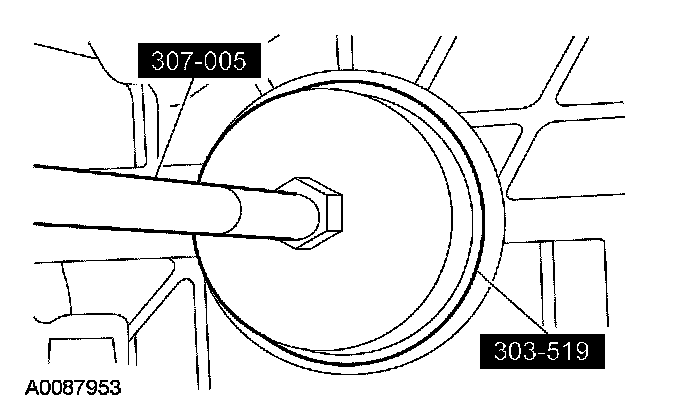

3. Using the special tools, remove and discard the crankshaft rear oil seal.

Installation

1. NOTE: Clean all sealing surfaces with metal surface cleaner.

NOTE: Apply clean engine oil to the seal lip and seal bore before installing the seal.

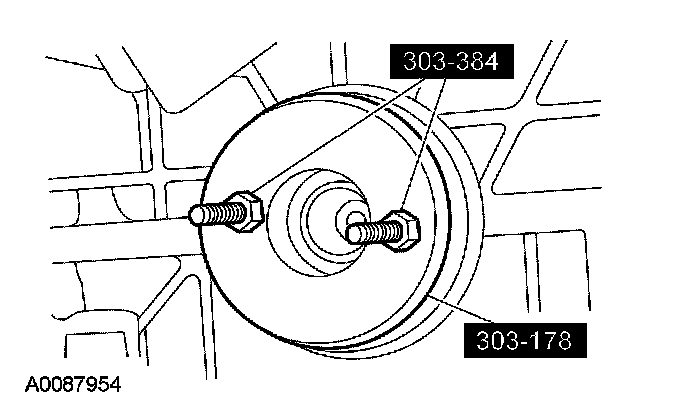

Using the special tools, install the crankshaft rear oil seal.
2. Install the flexplate.
