Thermostat, Engine Cooling
Thermostat, Engine Cooling

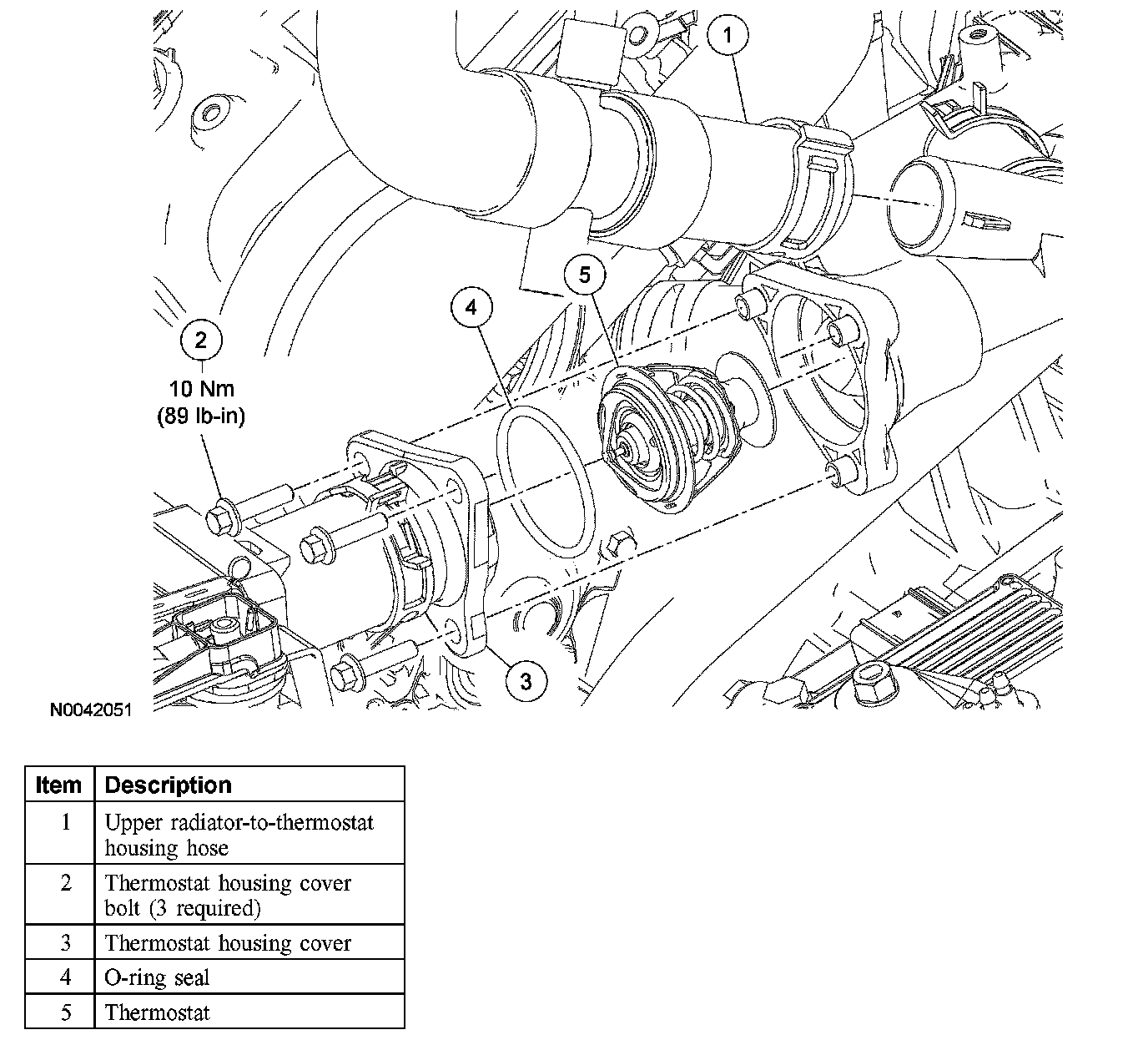

Thermostat - 3.0L (4V)
Thermostat - 3.0L (4V):
