Inspection and Verification

Inspection and Verification

WARNING: Use of any brake fluid other than the approved DOT 3 will cause permanent damage to brake components and will render the brakes inoperative. Failure to follow these instructions may result in personal injury.

WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.

CAUTION: Do not spill brake fluid onto painted or plastic surfaces. If spilled, wipe up immediately before damage to the plastic or painted surfaces occurs.

CAUTION: Do not allow the brake fluid to come in contact with the adhesive backing on the brake pads. If brake fluid is spilled onto the brake pads, new pads must be installed.

NOTE: Always check the fluid level in the brake master cylinder reservoir before carrying out the test procedures. If the fluid level is not at the correct level, clean the reservoir cap before removing, then add DOT 3 brake fluid.

NOTE: Prior to carrying out any diagnosis, make sure the red brake warning indicator is functional. Refer to Instrument Panel, Gauges and Warning Indicators.

The first indication that something may be wrong in the brake system is a change in the feeling through the parking brake control. The parking brake not holding on an incline or dragging after being released are also indicators of system concerns.

Check the operation of the parking brake system with the vehicle on a hoist and the parking brake control fully released. Check for any damaged cables and install new components as necessary. Carry out the brake system diagnosis.
1. Verify the customer concern.
2. Visually inspect for obvious signs of mechanical damage.

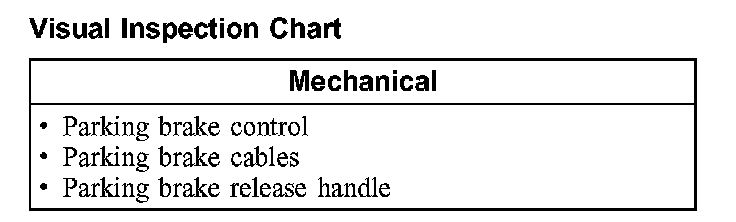

Visual Inspection Chart

Visual Inspection Chart:

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the cause is not visually evident, verify the symptom and GO to Symptom Chart. Symptom Related Diagnostic Procedures
