Interior Moulding / Trim: Service and Repair

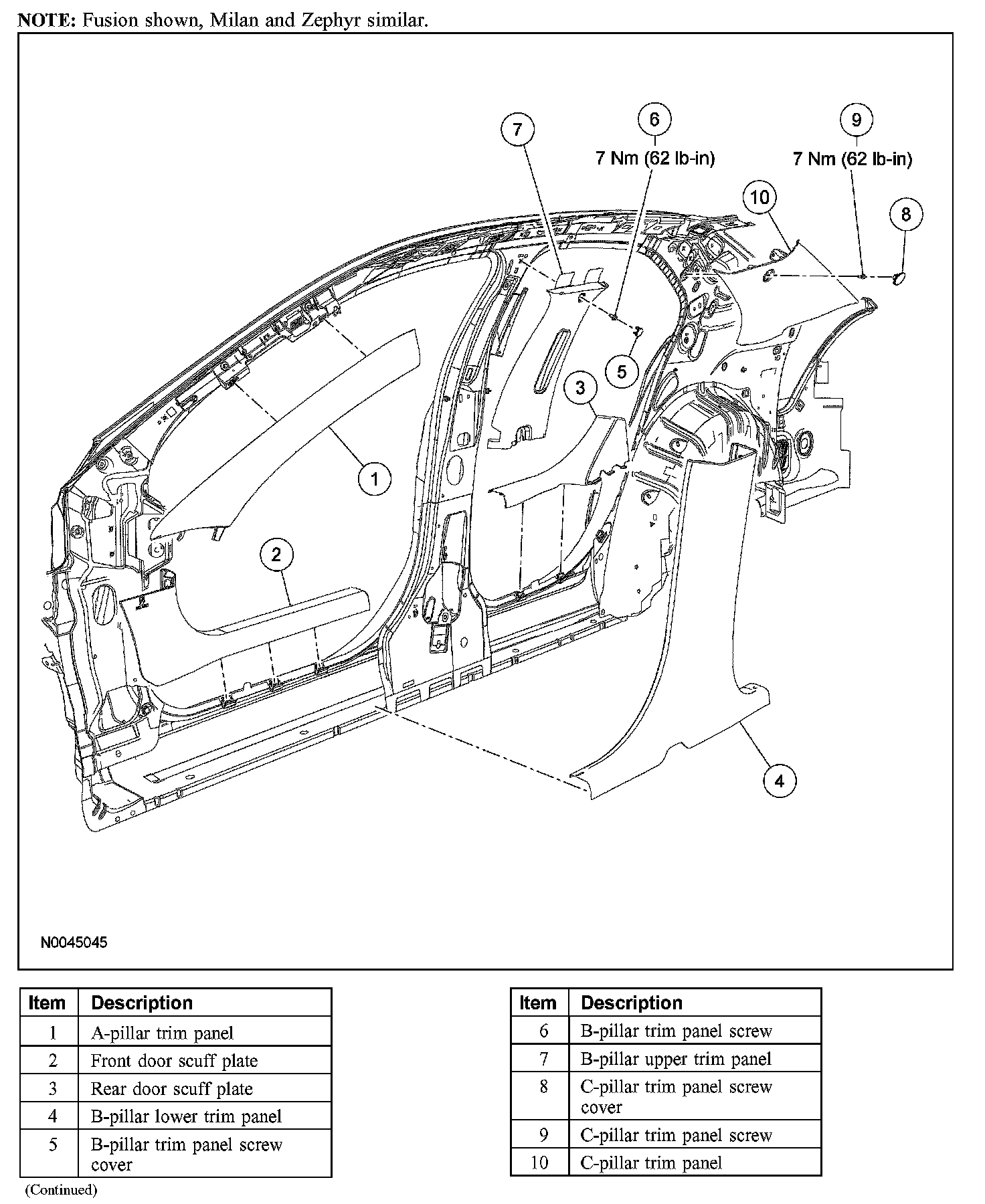

INTERIOR TRIM - EXPLODED VIEW
Removal And Installation
1.
For additional information, refer to the procedures.
