Rear Shelf: Service and Repair

PARCEL SHELF







Removal and Installation
1. Remove the C-pillar trim panels.
2. Fold the rear seats down.
3. Remove the side bolsters.
- Remove the nut at the bottom of each bolster.

4. Remove the seat back latch covers.

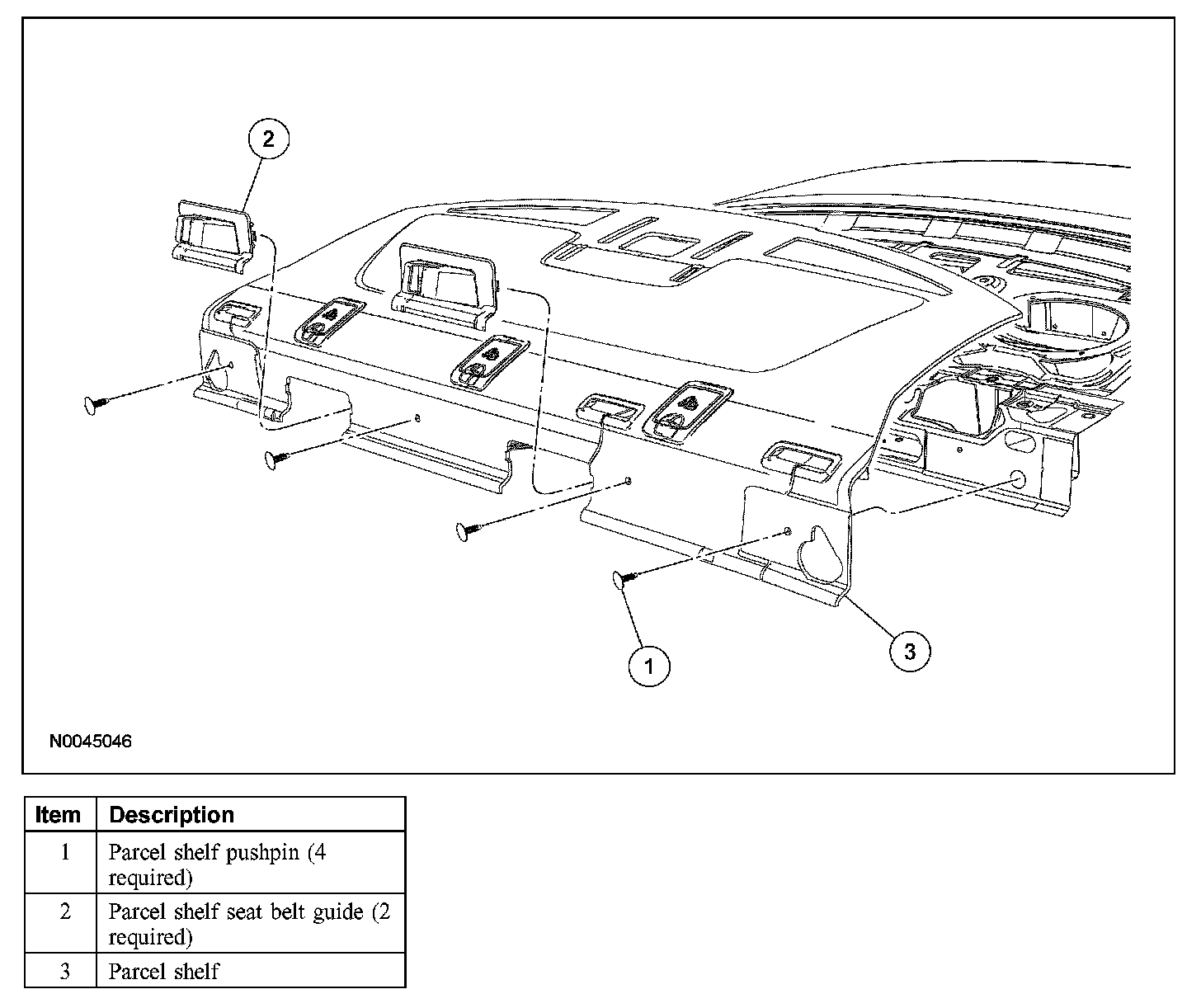

5. Remove the 4 pushpins.
6. Remove the 2 plastic seat belt guides.
7. To install, reverse the removal procedure.
