Headliner: Service and Repair

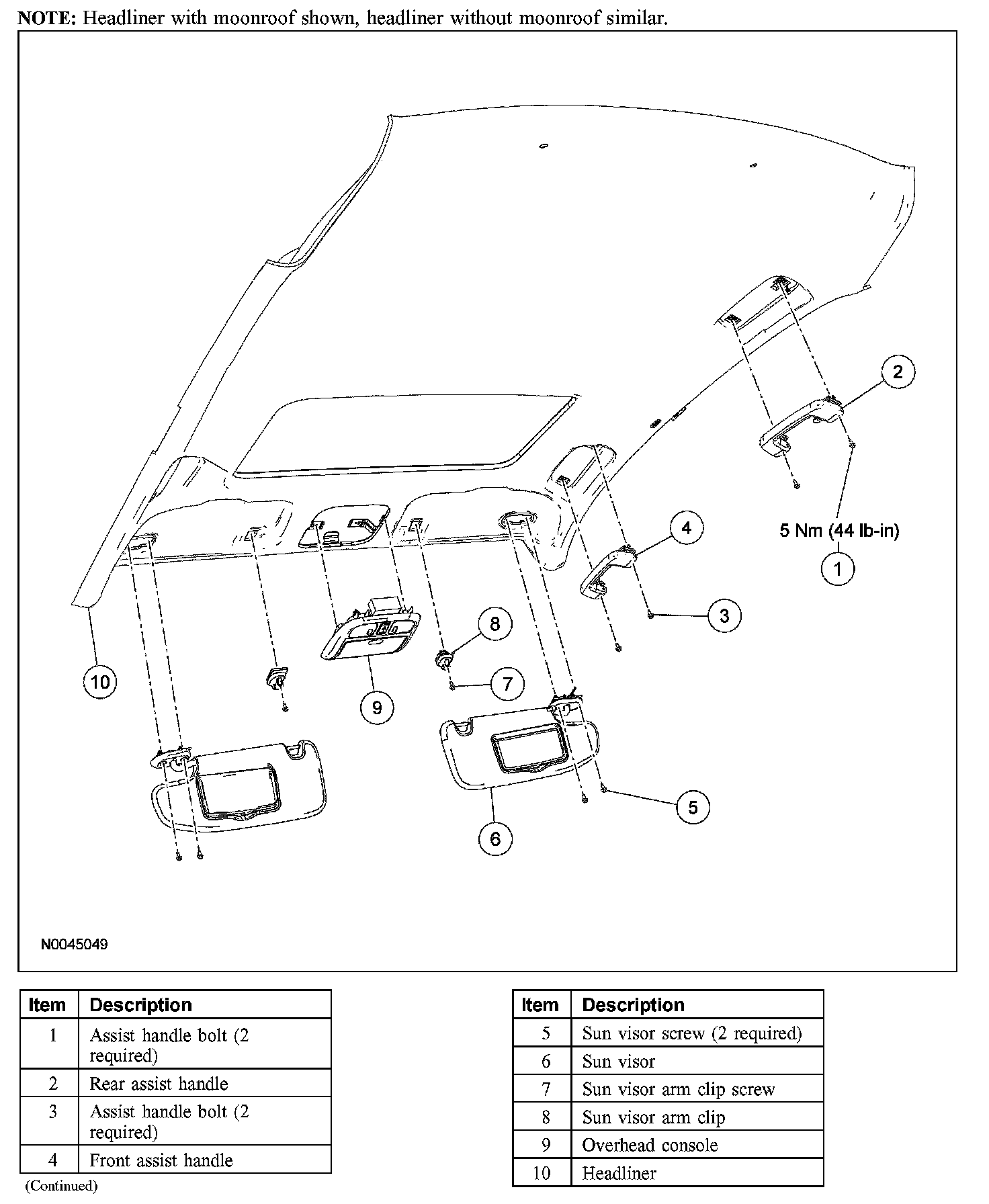

HEADLINER







Removal and Installation
1. Remove the floor shifter.
2. Remove the driver seat and rear seat cushion.
3. Position the passenger seat fully REARWARD and recline fully.
4. Disconnect the battery.

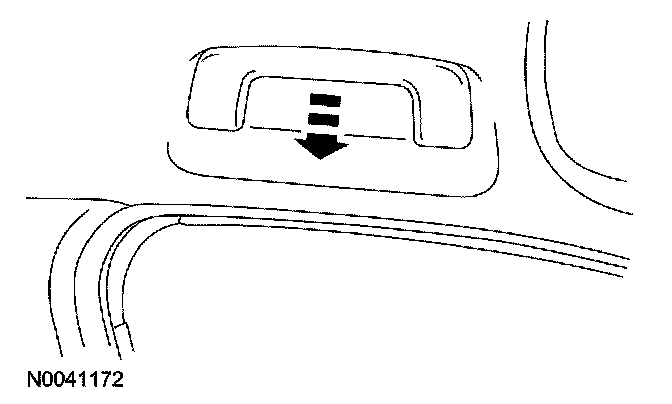

5. Open the 4 passenger assist handle covers.
- Remove the bolts and remove the handles.
- To install, tighten to 5 Nm (44 lb-in).

6. Remove the A-pillar trim panels.
7. Remove the B-pillar trim panels.
8. Remove the C-pillar trim panels.
9. Remove the overhead console.
- Disconnect the electrical connector.

10. Remove the sun visors and the sun visor clips.
- If equipped, disconnect the electrical connectors.

11. Remove the 2 headliner pushpins at the rear.

12. CAUTION: To avoid bending or crimping the headliner, an assistant is required for this step.

Remove the headliner through the LH rear door.

13. To install, reverse the removal procedure.
