Trunk / Liftgate Latch: Service and Repair

LUGGAGE COMPARTMENT LID LATCH







Removal and Installation

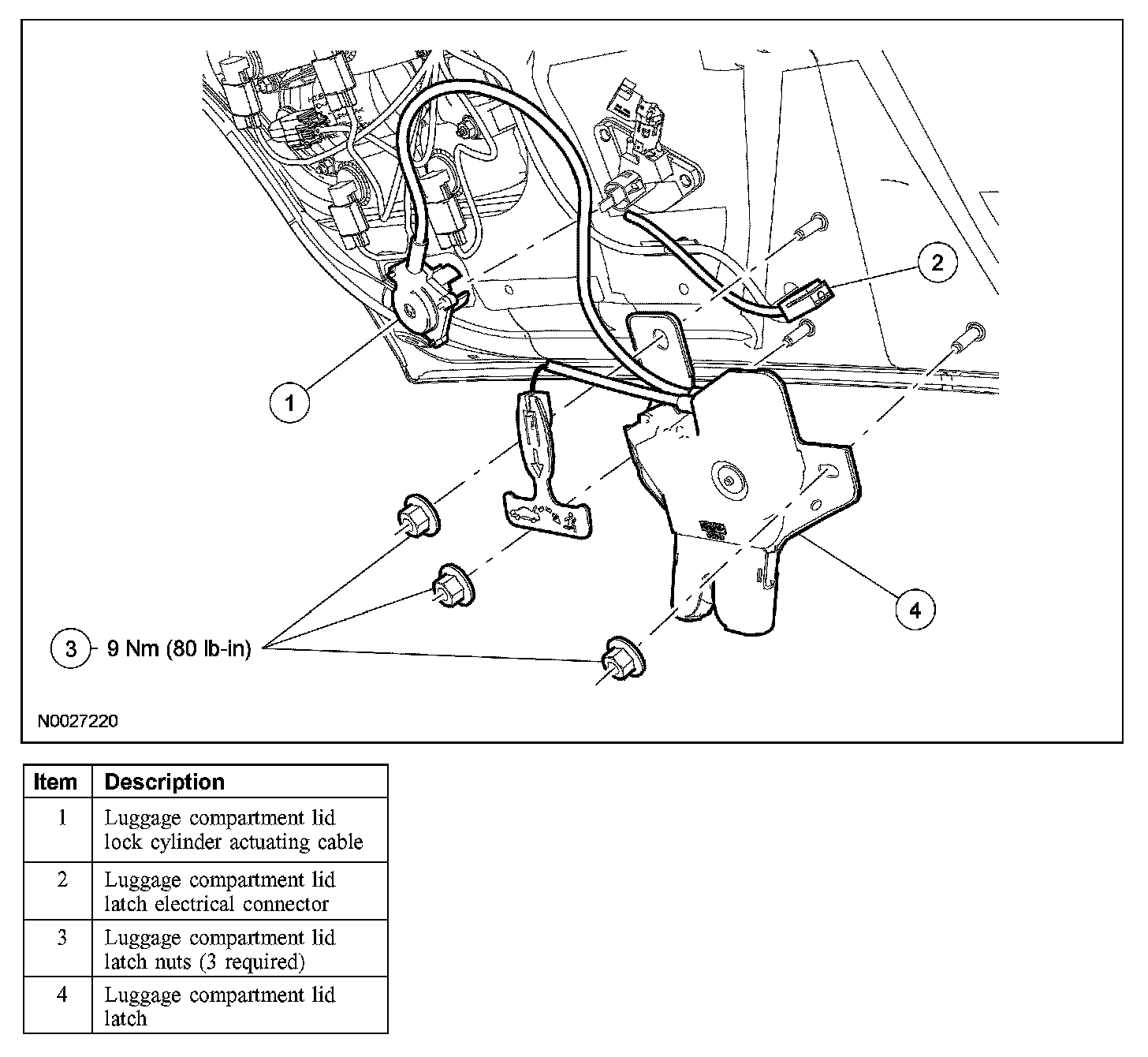

1. Remove the 12 pin-type retainers and the luggage compartment lid trim panel.
2. Disconnect the luggage compartment lid lock cylinder actuating cable from the luggage compartment lid lock cylinder.
3. Disconnect the electrical connector from the luggage compartment lid latch.
4. Remove the 3 nuts and the luggage compartment lid latch.
- To install, tighten to 9 Nm (80 lb-in).

5. To install, reverse the removal procedure.
